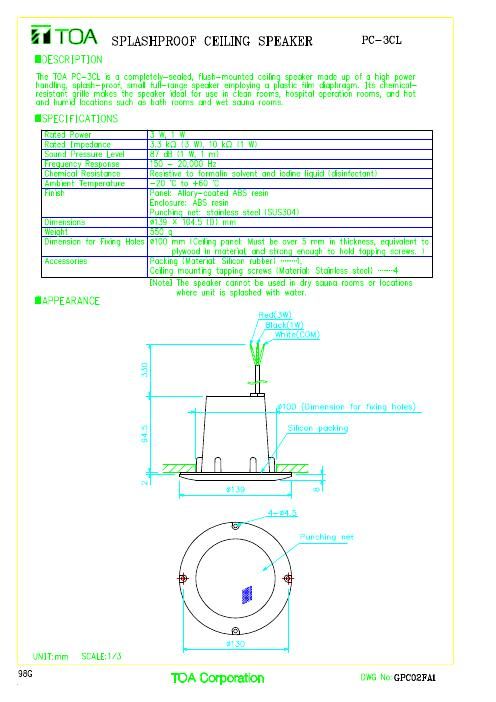

4 I TOA SPLASHPROOF CEILING SPEAKER PC-SCL

IDESCRIPTION

The TOA PC-JCL is a complete) -sealed, flush-mounted ceilin s eaker made up of 0 hi h power
ll fulF- $asfl

handling, splash-proof, sma range speaker employing a p c film diaphragm. Its c emical-
resistant grille makes the speaker ideal for use in clean rooms, hospital operation rooms. and hot

and humi locations such as both rooms and wet sauna rooms)
ISPECIFICATIONS
Rated Power 3 W, 1 W
Rated Impedance 3.3 k!) (3 W). 10 k0 [1 W)
Sound Pressure Level 87 dB (1 W, i m)
Frequency Response 150 - 20,000 Hz
Chemical Resistance Resistive to formalin solvent and iodine liquid (disinfectant)
Ambient Temperature -20 'C to +60 'C
Finish Panel: Allory-coated ABS resin
Enclosure: ABS resin
Punching net: stainless steel lSUSSO4)
Dimensions $139 X 1045 (D) mm
Weiqht 550 q
Dimension for Fixing Holes MOO mm (Ceiling panel: Must be over 5 mm in thickness, equivalent to
plywood in material, and strong enouqh to hold tappinq screws. l
Accessories Packing (Material: Silicon rubber) --------- 1,
Ceiling mounting tapping screws (Material: Stainless steel) --------- 4

[Note] The speaker cannot be used in dry sauna rooms or locations
where unit is splashed with water.

IAPPEARANCE

O

n

V")

,(DiOO (Dimension for fixing holes)

'7. Silicon packing

v

03

J)-

N

Punching net

UNszmm SCALEzl/J

986 TOA Corporation am No: GPCOEFAI
