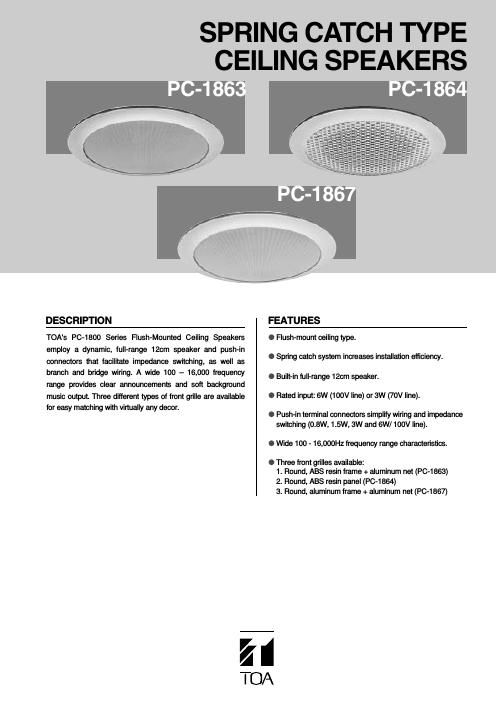

Page 1
SPRING CATCH TYPE
DESCHPHON
TOA's PC-1800 Series Flush»Mounted Ceiling Speakers
employ a dynamic, full-range 12cm speaker and push-in
connectors that facilitate impedance switching, as well as
branch and bridge wiring. A wide 100 - 16,000 frequency
range provides clear announcements and soft background
music output. Three different types of front grille are available
for easy matching with virtually any decor.
CEILING SPEAKERS
I AI
FEATURES
0 Flush-mount ceiling type.
0 Spring catch system increases installation efficiency.
0 Built-in full-range 12cm speaker.
0 Rated input: 6W (100V line) or 3W (70V line).
0 Push»in terminal connectors simplify wiring and impedance
switching (0.8W, 1.5W, 3W and 6W/ 100V line).
0 Wide 100 » 16,000Hz frequency range characteristics.
0 Three front grilles available:
1. Round, ABS resin frame + aluminum net (PC-1863)
2. Round, ABS resin panel (PC-1864)
3. Round, aluminum frame + aluminum net (PC-1867)
