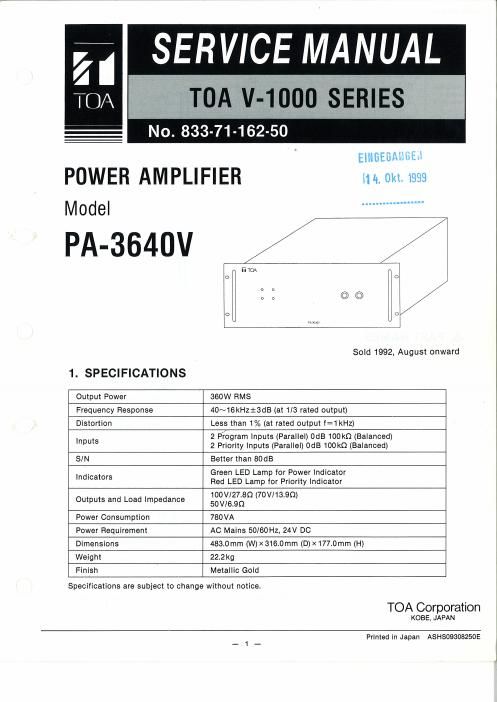

Page 1
No 8332-71-16-50
POWER AMPLIFIER
Model
PA-3640V
1. SPECIFICATIONS
EIIIGEGAIEGEJ.
I11), Okt. 1999
Sold 1992, August onward
Output Power
360W RMS
Frequency Response
40~16kHzthB (at 1/3 rated output)
Distortion Less than 1% (at rated output f=1 kHz)
In uts 2 Program Inputs (Parallel) OdB 100k0 (Balanced)
p 2 Priority Inputs (Parallel) OdB 100 k0 (Balanced)
S/N Better than 80dB
Indicators Green LED Lamp for Power Indicator
Red LED Lamp for Priority Indicator
Outputs and Load Impedance
100V/27.80 (70 Vl13.90)
50V/6.90
Power Consumption
780 VA
Power Requirement
AC Mains 50/60Hz, 24V DC
Dimensions 483.0mm (W)X316.0mm (D) x 177.0mm (H)
Weight 22.2kg
Finish Metallic Gold
Specifications are subject to change without notice.
TOA Corporation
KOBE, JAPAN
Printed in Japan ASH309308250E
