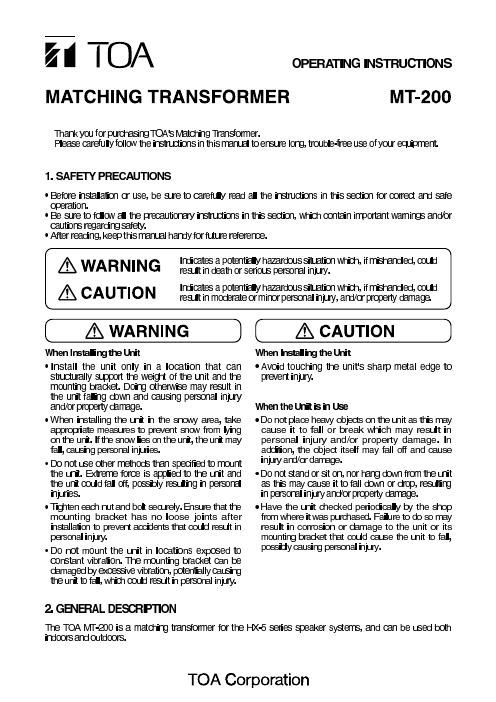

Page 1

Zl TOA

MATCHING TRANSFORMER

OPERATING INSTRUCTIONS

MT-200

Thank you for purchasing TOA's Matching Transformer.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

- Before installation or use, be sure to carefully read all the instructions in this section for correct and safe

operation.

- Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or

cautions regarding safety.

- After reading, keep this manual handy for future reference.

A WARNING
A CAUTION

Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.

Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.

[ A WARNING ]

[ A CAUTION ]

When Installing the Unit

'lnstall the unit only in a location that can
structurally support the weight of the unit and the
mounting bracket. Doing otherwise may result in
the unit falling down and causing personal injury
and/or property damage.

- When installing the unit in the snowy area, take
appropriate measures to prevent snow from lying
on the unit. If the snow lies on the unit, the unit may
fall, causing personal injuries.

. Do not use other methods than specified to mount
the unit. Extreme force is applied to the unit and
the unit could fall off, possibly resulting in personal
injuries.

. Tighten each nut and bolt securely. Ensure that the
mounting bracket has no loose joints after
installation to prevent accidents that could result in
personal injury.

0 Do not mount the unit in locations exposed to
constant vibration. The mounting bracket can be
damaged by excessive vibration, potentially causing
the unit to fall, which could result in personal injury.

2. GENERAL DESCRIPTION

When Installing the Unit

- Avoid touching the unit's sharp metal edge to
prevent injury.

When the Unit is in Use

' Do not place heavy objects on the unit as this may
cause it to fall or break which may result in
personal injury and/or property damage. In
addition, the object itself may fall off and cause
injury and/or damage.

- Do not stand or sit on, nor hang down from the unit
as this may cause it to fall down or drop, resulting
in personal injury and/or propeny damage.

- Have the unit checked periodically by the shop
from where it was purchased. Failure to do so may
result in corrosion or damage to the unit or its
mounting bracket that could cause the unit to fall,
possibly causing personal injury.

The TOA MT-200 is a matching transformer for the HX-5 series speaker systems, and can be used both

indoors and outdoors.

TOA Corporation

Page 2

3. DIMENSIONAL DIAGRAM

[TOP]
Unit: mm (inches)
123 (4 27/32) 99 (3 57/64)
Front Side
I I 1 Cover A I I
g 60 cm or 23 5/8 in. long
9 (Primary and secondary)
S
w-1t> - F
C] =
69.9 2 A A g p
( MI £5 § 9 I §
111 (4 3/8) 3, N o v
Lo 5 0° N
140 (5 33/64) 06 N
v- st
164 (6 29/64) M,
111 (4 3/8) E g
69.9 (2 3/4) 3 g
1- 0'.)
[Bottom] U
h JrlL
4-69 (4-623/64) \ 4-22 x 12 (4-55/64 X 15/32)
4. SPECIFICATIONS
Rated Input 200 W
Primary Impedance 100 V line: 50 Q (200 W), 83 Q (120 W), 167 Q (60 W)

70 v line: 25 Q (200 W), 50 Q (100 W), 83 Q (60 W), 167 o (30 W)

Secondary Impedance 8 Q

Water Protection |PX4 (the tilt angle must be within 45°)*
Finish Cover: Polypropylene

Mounting bracket: Stainless steel (SU8304)
Dimensions 164 (w) x 141 (h) x 129 (d) mm

6 29/64 (w) x 5 33/64 (h) x 5 5/64 (d) inches
Weight 2.8 kg

* Every speaker module must be aimed horizontally or down to keep the water resistant capability.

Note: The design and specifications are subject to change without notice for improvement.

0 Accessories
Hexagon head bolt M8 x 15 (with washers) ......... 2
