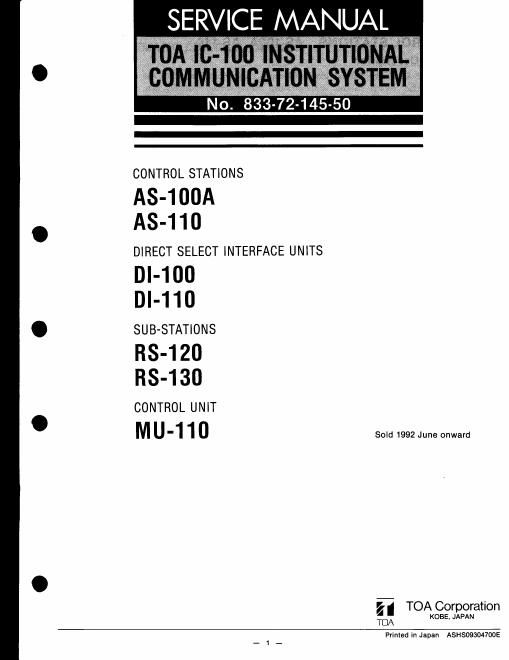

O No. 833-72-145 O
CONTROL STATIONS
AS-1DOA
AS-1 10
DIRECT SELECT INTERFACE UNITS
DI-100
DI-110
SUB-STATlONS
RS-1 20
33-1 30
CONTROL UN|T
M '1 10 Sold 1992 June onward
g1 TOA Corporation
KOBE. JAPAN
I DA
Printed In Japan ASH309304700E
Page 2
MODEL AS-100AI1 10
1. CONTROL STATIONS AS-100A, AS-110
IGeneral Description
The ASa100NAS~110 Control Stations provide lull-duplex communication capability with remote sub-station
handsets and other control stations. and halt-duplex communication capability with remote sub-station
enhance operating ease, and its 12-digit LCD display shows dialing data
speakers, Its eight lunction keys
display priorities. and current time.
I SPECIFICATIONS
AS-100A
It can be connected with a standard dual twisted pair cable.
Power Requirements
24 V DC, 30 mA (powered from exchange)
Handset Transmitter & Receiver
Dynamic type, 130 $2 each
Internal Speaker
Dynamic type, 8 Q . $57 mm ( v 2.25") 0.6 W
internal Microphone
Electret condenser type
Key Pad
Membrane key switch
Speaker Volume Control
H/L selectable
External Input
External microphone or headset
Display LCD. 12 digits
Wiring Twisted 2 pairs. nonpolar
Operating Temperature 0 C -40°C (32 'F ~104 'F)
Finish ABS resin, pale white
Dimensions (W x H x D) 216 (8.50) x 74.5 (2.93") X 213 (8.39") mm
Weight 960 g (2.12 lb.)
Wall mounting bracket .......................... 1
Accessories Connection cord with modular plugs . 1
Wood screw .......................................... 2
* Specifications are subject to change without notice.
AS-110
Power Requirements 24 V DC. 30 mA (powered from exchange)
Handset Transmitter 8. Receiver Dynamic type. 130 Q each
Internal Speaker Dynamic type, 8 S2 . w 57 mm ( ¢> 2.25") 0.6 W
Internal Microphone Electret condenser type
Key Pad Membrane key switch
External Input External microphone or headset
Display LCD, 12 digits
Wiring Twisted 2 pairs, nonpolar
Ambient Temperature 0 °C -40 "C (32 'F ~104 'F)
Finish White painted
Dimensions (w x H x D) 240 (9.45") x 266 (10.47") x 54 (3.31") mm
Weight 26 kg (5.73 lb.)
Mounting bracket, 2 Binding head screw M4 x 8...
Accessories Cable bushin 1 Binding head screw M3 X 6
Wood screw.. 4
Cord clamp... .. 1
* Specifications are subject to change without notice.
