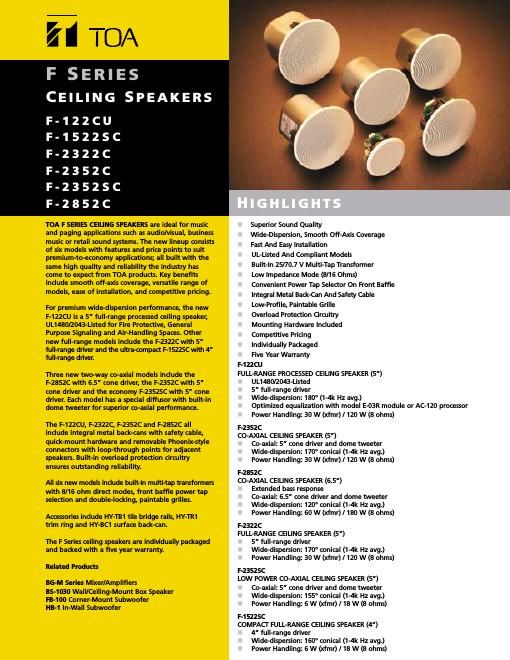

F SERIES CEILING SPEAKERS Tel: 800-733-7088 Fax: 800-733-9766 www.toaelectronics.com W IDE -D ISPERSION APPLICATIONS Airports Audio/Visual Bars / Lounges / Nightclubs Convention Centers Corporate Boardrooms Hotels / Hospitality Houses of Worship MuseumsOffices Patios Residential Spaces Restaurants Retail Stores Schools Theaters Theme Parks A B SP 1 SP 2 Frequency SPL B B Frequency SPL SP 2 Frequency SPL SP 2 Frequency SPL Conventional Speaker Wide-Disper sion Speaker SP 1 Frequency SPL A SP 1 Frequency SPL A SP 1 Frequency SPL B SP 1 Frequency SPL B B A SP 1 SP 2 AB AB Wide - Dispersion Speaker Conventional Speaker Conventional ceiling speakers typically exhibit pronounced high frequency roll-off as you move away (off-axis) from the area directly beneath the speaker (on-axis) resulting in "dead spots" between speakers, poor intelligibility and on-axis "hot spots". The TOA F Series ceiling speakers provide up to 180° of high frequency coverage allowing you to use fewer speakers for the most cost-effective installation. TOA TOA Visit www.toaelectronics.com to download: System Design Software Speaker Design Guide Video Animations EASE Data Installation Manuals Architect and Engineering Specifications CAD Files High Resolution Images P2
Page 2
F SERIES CEILING SPEAKERS Tel: 800-733-7088 Fax: 800-733-9766 www.toaelectronics.com F-122CU 5 F ULL -R ANGE , 30 W Polar Response Directivity Factor vs. Frequency Beamwidth vs. Frequency Impedance vs. Frequency SPL vs. Frequency Directivity Factor 20 10 5 1 [Q] Frequency 20 50 100 500 1k 5k 10k 20k [Hz] Beamwidth 10 50 100 200 [deg] Frequency 20 50 100 500 1k 5k 10k 20k [Hz] Frequency 20 50 100 500 1k 5k 10k 20k [Hz] Impedance 1 5 10 50 100 [ohm] 200 SPL 30 40 50 60 70 80 90 100 [dB] 110 Frequency 20 50 100 500 1k 5k 10k 20k [Hz] Without EQWith EQ 16000Hz 12500Hz 10000Hz 0° 90°90° 60°60° 30° 30° -40 -30 -20 -10 0 104000Hz 3150Hz 2500Hz 0° 90°90° 60°60° 30° 30° -40 -30 -20 -10 0 10 8000Hz 6300Hz 5000Hz 0° 90°90° 60°60° 30° 30° -40 -30 -20 -10 0 10 1000Hz 800Hz 630Hz 0° 90°90° 60°60° 30° 30° -40 -30 -20 -10 0 10 2000Hz 1600Hz 1250Hz 0° 90°90° 60°60° 30° 30° -40 -30 -20 -10 0 10 250Hz 200Hz 160Hz 0° 90°90° 60°60° 30° 30° -40 -30 -20 -10 0 10 500Hz 400Hz 315Hz 0° 90°90° 60°60° 30° 30° -40 -30 -20 -10 0 10 FULL-RANGE PROCESSED CEILING SPEAKER (5) Ideal for applications requiring premium sound quality Special diffuser provides wide off-axis high frequency response UL-Listed for Fire Protective, General Purpose Signaling and Air-Handling Spaces (UL1480 UUMW/UEAY, UL2043) Ported bass-reflex design 5 full-range driver Wide-dispersion: 180º(1-4k Hz avg.) Frequency Response: 70 to 20k Hz Sensitivity: 90 dB SPL (1 W, 1 m) Continuous Power Handling: 120 W Built-in 25/70.7 V transformer (30 W max.) with 8/16 ohm direct modes Convenient power tap selector on front baffle Integral metal back-can and safety cable Removable terminal block with loop-through terminations Low-profile, paintable grille Overload protection circuitry Mounting C-ring included Optimized equalization with E-03R module or AC-120 dual channel processor Optional HY-TB1 tile rails, HY-BC1 surface-mount back-can and HY-TR1 trim ring Five year warranty P3
