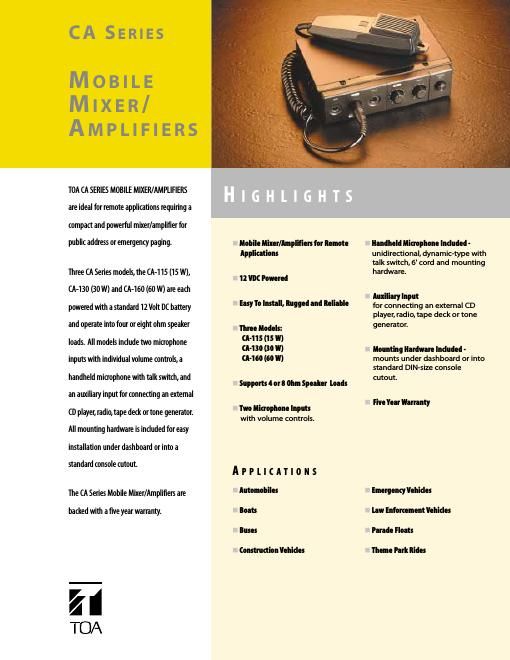

CA SERIES MOBILE MIXER/AMPLIFIERS Tel: 800-733-7088 Fax: 800-733-9766 www.toaelectronics.com S PECIFICATIONS Power Source 10 - 16 VDC Rated Output CA-115: 15 W (at 4/8 Ω) CA-130: 30 W CA-160: 60 W Current Consumption CA-115: Less than 3 A (at rated output) CA-130: Less than 5 A CA-160: Less than 9 A Distortion Less than 5% (1 kHz. rated output) Frequency Response 100 Hz - 10 kHz (± 3 dB) Inputs Mic 1 and Mic 2: 4 mV, 600 Ω, 1/4" Phone JackAux: 500 mV, 10 kΩ, 1/4" Phone Jack Microphone Dynamic, Unidirectional with Talk-Switch, (included) -53 dB (1 kHz, 0 dB = 1 V/Pa), 600 Ω Finish Front Panel: ABS Resin, BlackCase: Zinc-plated Steel, Black Dimensions CA-115: 7.01" x 1.97" x 5.20" (W x H x D) (178 mm x 50 mm x 132 mm) CA-130: 7.01" x 1.97" x 5.67" (178 mm x 50 mm x 144 mm) CA-160: 7.01" x 1.97" x 6.69" (178 mm x 50 mm x 170 mm) Weight CA-115: 1.98 lbs. (0.9 kg) (excluding mounting hardware) CA-130: 2.43 lbs. (1.1 kg) CA-160: 2.65 lbs. (1.2 kg) Accessories (1) Microphone Holder (included) (1) Mounting Bracket (1) Set, Mounting Screws (1) Fuse (1) Set, Connection Cords The mobile mixer/amplifier shall be compact and lightweight and designed for use in applications where AC Mains is not available. The power source shall be a 12 VDC battery or suitable DC power supply between the range of 10 to 16 VDC. The rated power amplifier output into a speaker load of four or eight ohms shall be CA-115: 15 W; CA-130: 30 W; CA-160: 60 W. The current consumption at rated output shall be less than CA-115: 3 A; CA-130: 5 A; CA-160: 9 A. The distortion at 1 kHz at rated output shall be less than 5% with frequency response from 100 Hz to 10 kHz (± 3 dB). The mixer section shall include two microphone inputs with 600 ohm impedance, 4 mV sensitivity, 1/4" phone jack and individual volume controls as well as an auxiliary line input with 10 kohm impedance, 500 mV sensitivity and 1/4" phone jack. All inputs shall be easily accessible and located on the front panel. A dynamic microphone shall also be included with a unidirectional pickup pattern with talk-switch, 600 ohm impedance and -53 dB sensitivity (1 kHz, 0 dB = 1 V/Pa). Wiring for DC supply and speaker load termination shall be located on the rear panel and shall include an in-line fuse holder. The front panel material and finish shall be black ABS resin and the case shall be black zinc-plated steel. The unit shall include all required mounting hardware including microphone holder, mounting bracket and screws for mounting in a standard DIN-size console cutout or under a dash- board. Dimensions shall be CA-115: 7.01" W x 1.97" H x 5.20" D (178 mm x 50 mm x 132 mm); CA-130: 7.01" x 1.97" x 5.67" (178 mm x 50 mm x 144 mm); CA-160: 7.01" x 1.97" x 6.69" (178 mm x 50 mm x 170 mm). The weight, excluding mounting hardware, shall be CA-115: 1.98 lbs. (0.9 kg); CA-130: 2.43 lbs. (1.1 kg); CA-160: 2.65 lbs. (1.2 kg). The mobile mixer/amplifier shall be the TOA CA-115, CA-130, CA-160. A RCHITECT S & E NGINEER S S PECIFICATIONS Rear View ORGBRNWHTREDBLUE Side View Front View Top View Accessory microphone UNIT: inches Max. 1.0 0.25 1.501.18 6.305.71 2.17 7.48 4-0.24x1.18 1.58 1.38 4.76 10-0.22x0.79 2-0.22x1.18 11.5 7.17 1.58 1.18 1.18 1.57 3.94 5.20/5.67/6.69 Max. 78.7 7.01 1.97 LOCK MAX 8mm MIC 1AUX MIC 2 MIC 1POWER MIC 2 10 0 10 0 TOA Electronics, Inc. 601 Gateway Boulevard Suite 300 South San Francisco, CA 94080 Tel: 800-733-7088 Fax: 800-733-9766 www.toaelectronics.com TOA Canada Corp. Tel: 905-564-3570 Fax: 905-564-3569 Literature Order #: L-CA Specifications subject to change without notice. © 2004 TOA Electronics, Inc. D IMENSIONAL D RAWING
