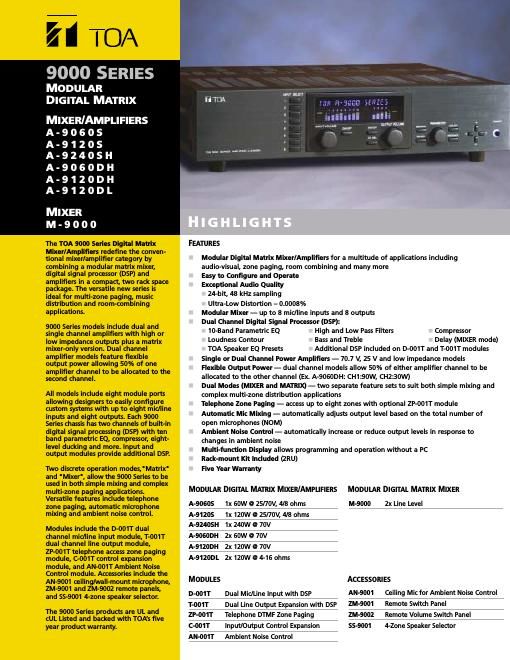

9000 SERIES MODULAR DIGITAL MATRIX MIXER AND MIXER/AMPLIFIERS Tel: 800-733-7088 Fax: 800-733-9766 www.toaelectronics.com F EATURES MIXER Mode Ideal for Speech and Sound Reinforcement Applicationsin hotel meeting rooms, churches, and conference rooms Automatic Mixing Automatically adjusts output level based on the total number of open microphones (NOM) Adjustable output attenuation from 0 to 20 logNOM 32 Programmable Scenes- activate via front panel, switch closure, RS-232 or optional remote panels, models ZM-9001 and ZM-9002 Flexible Input-to-Output Routing- assign any input to one or more outputs with adjustable cross-point gain Stereo Link- control two inputs or outputs with one volume control Paging Function Assign outputs to up to four zonesTrigger paging function with VOX (one zone), control input (up to four zones) or optional ZP-001T module Selectively disable outputs from programmed paging zone with contact closures Flexible Remote Control Two Remote Volume Control Terminals Assignable to any input or output channelControl with 10k ohm linear potentiometer, 0-10 VDC or optional ZM-9001/ZM-9002 remote panels Assign remote volume control to background music (Priority 8) inputs without affecting paging input volume Four Control Inputs(expandable to twelve with C-001T module) - programmable to activate Memory, Volume Up/Down, Mute, Power On/Off, Emergency Mute or Synch On/Off Four Control Outputs(expandable to twelve with C-001T module) - programmable to activate external relays synchronized with Memory, Channel On/Off and Power On/Off RS-232 Port Control protocol available for external devices (see protocol for controllable parameters) AMX and Crestron control modules available MATRIX Mode Multiple Simultaneous Event Activationfor paging and BGM distribution applications Flexible Routing- each audio input can be simultaneously routed to multiple outputs Eight Level Ducker- assignable priority levels and mute depth attenuates all other lower priority input signals 32 Programmable Events- activate via control input, RS-232 or optional remote panels, models ZM-9001 and ZM-9002 Input Priority Modessets priority order when multiple inputs with the same priority level are broadcast First-In-First-Out (FIFO): input that occurs first is broadcast Last-In-First-Out (LIFO): most recent input is broadcastMIX: all inputs are mixed and broadcast Voice Operated (VOX) Event Activationwith adjustable threshold/sensitivity and gate release time Additional Features Mixer Out / Power Amp In Patching Loops(except M-9000) for connection of external processor(s) Software Utilityfor saving unit parameters to PC, updating unit firmware, virtual control activation and status indication MS Excel Programming Templates - use Microsoft ®Excel for off-site programming Keylock Securitysets password-protected access to Input, Output, Utility & Power functions Input and Output Metering(D-001T module(s) required for input metering) Alphanumeric Channel and Memory Naming Power Off Save Modesaves adjusted volume levels when the power is switched off Power On Memorysets the Event/Scene selected when unit powers up Detachable IEC-type AC Cable UL and cUL Listed Model Power Amplifier Output(s) Digital Signal Processor Mic/Line Inputs Line Outputs A-9060S1x 60 W @ 25/70V, 4/8 ohms 2 Channels Up to 8 (4x D-001T) Up to 7 (1 built-in plus 3x T-001T) A-9120S1x 120 W @ 25/70V, 4/8 ohms 2 Channels Up to 8 (4x D-001T) Up to 7 (1 built-in plus 3x T-001T) A-9240SH1x 240 W @ 70V 2 Channels Up to 8 (4x D-001T) Up to 7 (1 built-in plus 3x T-001T) A-9060DH2x 60 W @ 70V 2 Channels Up to 8 (4x D-001T) Up to 6 (3x T-001T) A-9120DH2x 120 W @ 70V 2 Channels Up to 8 (4x D-001T) Up to 6 (3x T-001T) A-9120DL2x 120 W @ 4 ohms 2 Channels Up to 8 (4x D-001T) Up to 6 (3x T-001T) M-90002x Line Level 2 Channels Up to 8 (4x D-001T) Up to 8 (2 built-in plus 3x T-001T) 9000 Series Models
