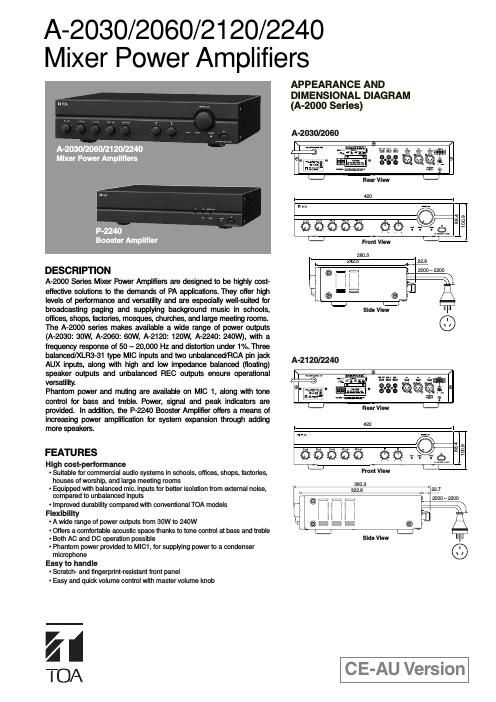

A-2030/2060/21 20/2240
Mixer Power Amplifiers

APPEARANCE AND
DIMENSIONAL DIAGRAM
(A-2000 Series)

A-2030/2060

A-2030/2060/2120/2240
Mixer Power Ampllfiers

Rear View

420

884
1009

mo ' ' @0000 so e9

Booster Amplifier Front View Q7

280.3

242. 5 Q
DESCRIPTION [:1 i=1 200072200
A-2000 Series Mixer Power Amplifiers are designed to be highly cost- i i l i m 0.
effective solutions to the demands of PA applications They offer high == =-

levels of performance and versatility and are especially well»suited for W

broadcasting paging and supplying background music in schools, Side View

offices, shops, factories, mosques, churches, and large meeting rooms. ©
The A2000 series makes available a wide range of power outputs

(A-2030: 30W, A-2060: 60W, A-2120: 120W, A-2240: 240W), with a
frequency response of 50 - 20,000 Hz and distortion under 1%. Three
balanced/XLR3-31 type MIC inputs and two unbalanced/RCA pin jack
AUX inputs, along with high and low impedance balanced (floating)
speaker outputs and unbalanced REC outputs ensure operational
versatility.

Phantom power and muting are available on MIC 1, along with tone
control for bass and treble. Power, signal and peak indicators are
provided. In addition, the P-2240 Booster Amplifier offers a means of RearView
increasing power amplification for system expansion through adding

more speakers. . 42° i

firm

FEATURES {decree ed eQQ

High cost-performance 3"
- Suitable for commercial audio systems in schools, offices, shops, factories, Fm V'e
houses of worship, and large meeting rooms
- Equipped with balanced mic. inputs for better isolation from external noise,
compared to unbalanced inputs
- Improved durability compared with conventional TOA models
Flexibility

A-2120/2240

360.3
322.5 g

. i 1:] izl 200072200

-A wide range of power outputs from 30W to 240W 21.21% l E
- Offers a comfortable acoustic space thanks to tone control at bass and treble
- Both AC and DC operation possible Side View
- Phantom power provided to MlCi, for supplying power to a condenser
microphone
Easy to handle
- Scratch- and fingerprint-resistant front panel
- Easy and quick volume control with master volume knob

eerie

TOA CE-AU Version
