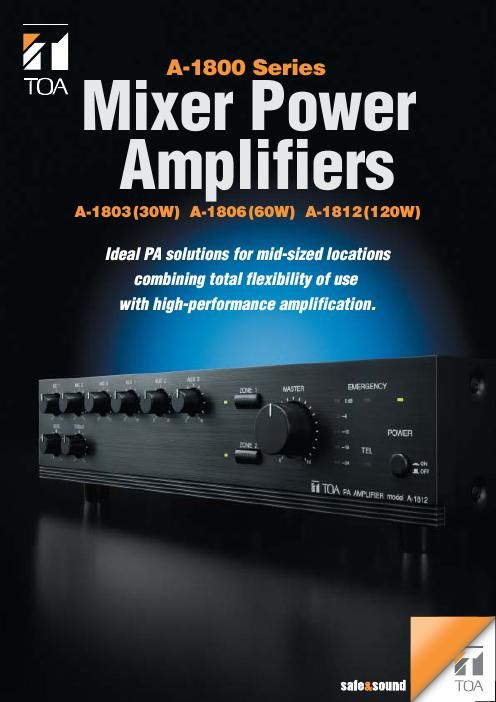

Toa a 1800 brochure
This is the 4 pages manual for toa a 1800 brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from toa a 1800 brochure (Ocr-read)
Page 1
Features and functions that add the m Multi-purpose, multi-function mixer/power amplifiers specifically designed for maximum versatility and cost-effective high-performance are ideal units for any PA requirement in locations such as schools and offices and other intermediate size environments. A choice of different power outputs are offered as well as functions such as paging and dual zone coverage. Classroom Classroom ClassroomTennis Court Playgroun d All Zone Zone 1 Zone 2 Versatility plus The A-1800 Series amplifiers are distinctive for their input versatility. Each has three mic inputs, three auxiliary inputs, an emergency input as well as a telephone paging input. Paging can be initiated and the chime function can also be set to automatically output to two zones. Phantom power provided The A-1800 Series of amplifiers provide phantom power to all connected microphones. Phantom power can switched on or off as needed. The microphone inputs feature a balanced configuration with XLR connectors, allowing long cable runs without any problems. 2 Zone coverage A-1800 Series amplifiers feature 2 speaker zones to which broadcasts can be sent independently or combined as desired. Emergency broadcasts will be heard in both zones. Even when the amplifier power is switched off, an emergency broadcast will be imitiated to both zones. Chime on input The Mic 1 input incorporates chime on capability when the optional PM-660D Paging Microphone is used. Chime on can also be activated for the telephone paging. A selection of chime tones are available such as single, two-tone and four-tones which can either be in ascending or descending order. Equalization Each amplifier allows easy tonal adjustment of all output signals with bass and treble controls. Line output A line output is useful for adding more power in a particular zone by providing the input signal for a booster amplifier such as the P-1812. Remote control In an expanded system with the P-1812 amplifier, an emergency will activate the P-1812, even if had not be switched on to enable the broadcast. Record output The back panel includes a stereo record output for connecting an external recorder to archive or back up broadcasts. A-1803 (30W) A-1806 (60W) A-1812 (120W)
Page 2
m ost value to all-in-one PA equipment. d Box speakerColumn speaker Horn speaker CD player Wireless tuner Cassette tape recorder (for REC) Cassette tape player Microphones Paging microphone PM-660D Speakers Booster amplifier (controled A-1800 Amplifier) P-1812 (120W) System Expansion Option TRUNK BOX PBX H C Typical Connections System amplification option When additional power amplification is required to power more speakers in a system, the TOA P-1812 Booster Amplifier can be connected to an A-1800 Series amplifier's line out which provides an optimal level and impedance to efficiently drive the P-1812. Switchable input levels To interface properly with different equipment, input sensitivity can be switched between 10dB and 0dB. Emergency control On the back panel of amplifier is a remote-in terminal for emergency control which sets the default output level for the emergency input. This can be remote-controlled via the main volume setting control. Input priorit y override and muting Each input can be set for priority override as well as mute. This facilitates making emergency announcements and messages as well as paging. Priority is in order starting with emergency, telephone paging, Mic 1* input, then aux. * Mic 1 has priority by default unless switched or when the optional PM-660D Paging Microphone is used. Priority will also automatically decrease the levels of other inputs. Dual power supply A-1800 Series amplifiers can conveniently be operated on AC or on DC24V to suit installation requirements. Music On Hold (MOH) output-equipped For adding convenient music or messages when telephone call waiting, music from a CD or cassette player connected to the Aux 1 input will activate MOH to fill the silence. Fade in Level High priority signal on Mute level Smoothly fade out High priority signal off Time P-1812 120W Power Amplifier P-1812 Front P-1812 Rear
