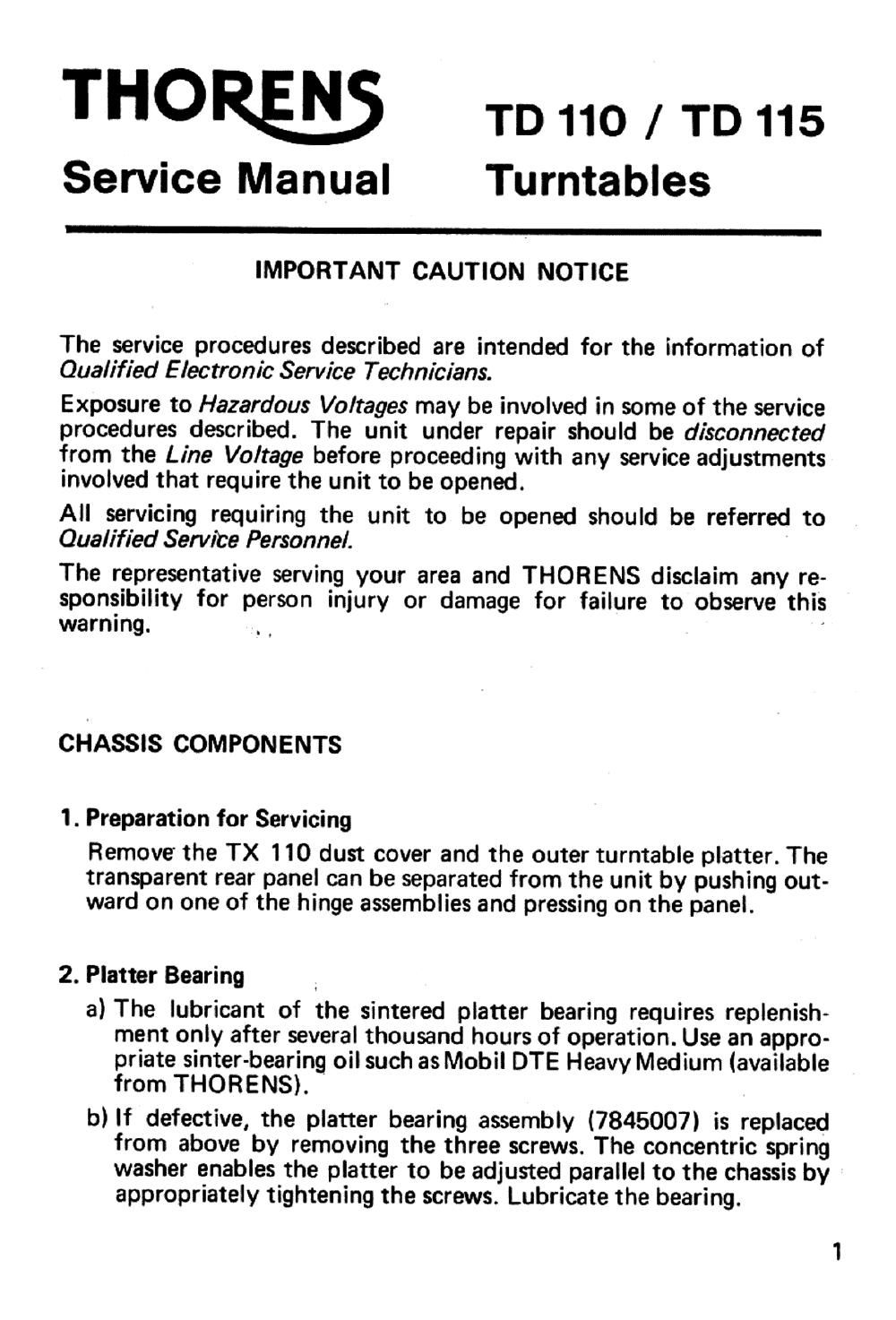

THOREB TD 11o / TD 115

Service Manual Turntables

IMPORTANT CAUTION NOTICE

The service procedures described are intended for the information of
Qualified Electronic Service Technicians.

Exposure to Hazardous Voltages may be involved in some of the service
procedures described. The unit under repair should be disconnected
from the Line Voltage before proceeding with any service adjustments
involved that require the unit to be opened.

All servicing requiring the unit to be Opened should be referred to
Qualified Serwbe Personnel.

The representative serving your area and THORENS disclaim any re-

sponsibility for person injury or damage for failure to observe this
warning. .

CHASSIS COMPONENTS

1. Preparation for Servicing

Remove the TX 110 dust cover and the outer turntable platter. The

transparent rear panel can be separated from the unit by pushing out-
ward on one of the hinge assemblies and pressing on the panel.

2. Platter Bearing

a) The lubricant of the sintered platter bearing requires replenish-
ment only after several thousand hours of operation. Use an appro-

priate sinter-bearing oil such as Mobil DTE Heavy Medium (available
from THORENS).

b) If defective, the platter bearing assembly (7845007) is replaced
from above by removing the three screws. The concentric spring
washer enables the platter to be adjusted parallel to the chassis by
appropriately tightening the screws. Lubricate the bearing.
