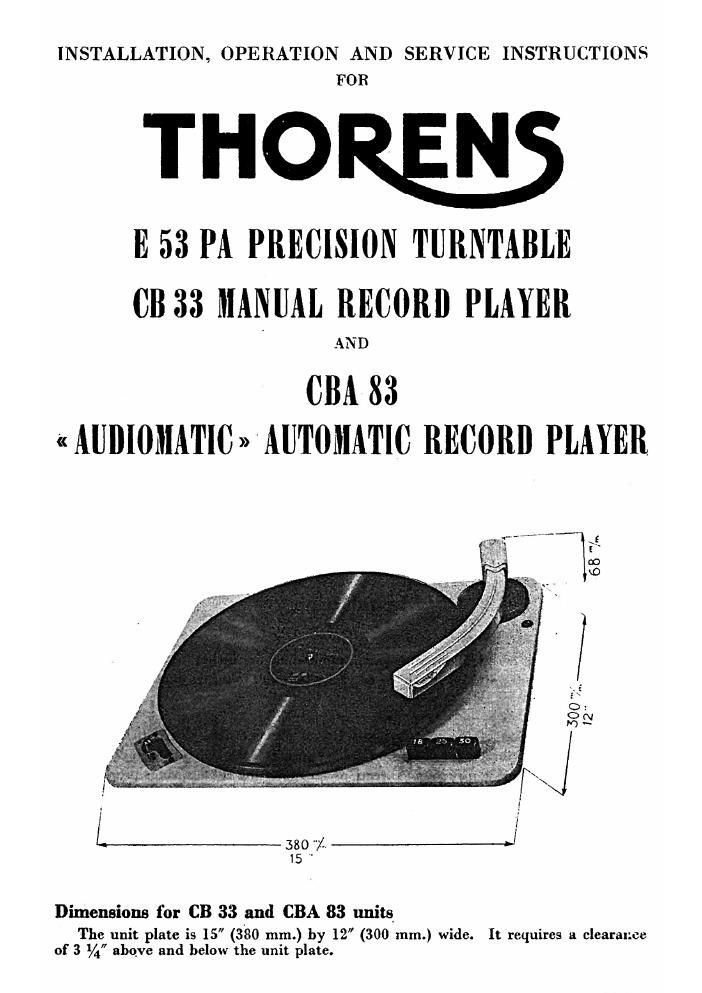

Page 1
INSTALLATION, OPERATION AND SERVICE INSTRUCTIONS
FOR
U 53 PA PRECISION TURNTABLE
CB 33 MANUAL RECORD PLAYER
UBA 83
'« AUDIUMATIU » AUTOMATIC RECORD PLAYER.
L 380 --/. J
15 "
Dimensions for CB 33 and CBA 83 unite
The unit plate is 15 (380 mm.) by 12 (300 mm.) wide. It requires a clearance
of 3 14 above and below the unit plate.
Page 2
IHDRENS MODEL E53PA, CB 33
AND CBA 83 UNITS
The THORENS unit which you have just purchased was completely designed and
manufactured in Switzerland by world famous technicians. This unit, before leaving
the factory, was tested with modern electronic equipment and found to be within the
critical standard set by the management.
You will find it most beneficial to thoroughly read the instructions in this booklet
before unpacking the unit. Should any questions arise concerning this model your
dealer will be happy to be of service to you. For technical information or the address
of the nearest service station you may contact :
7 complete set of spare parts are stocked at the above address for your convenience.
New. Always mention the jWodeI Number and Schedule Number when communicating
with the company.
Installation
Template. A detailed template with dimensions in inches and millimeters is
furnished with each unit and should be carefully followed to insure maximum listening
pleasure.
Spring suspension of the unit is necessary to prevent acoustic feedback and to
damp extraneous vibrations. The 'four special springs with the corresponding hard-
ware are enclosed in a paper bag. Directions for mounting these springs properly are
pictured on the template.
Leveling. For very light pickup cartridges an exact leveling of the unit plate is
strongly reconnnended. To do this. place a spirit level on a record on the turntable
and adjust with wedges under the mounting board.
For transit purpose, the unit plate should be secured with cardboard props introduced
between base plate and mounting board, the turntable being removed from the motor
shaft and packed separately.
)
