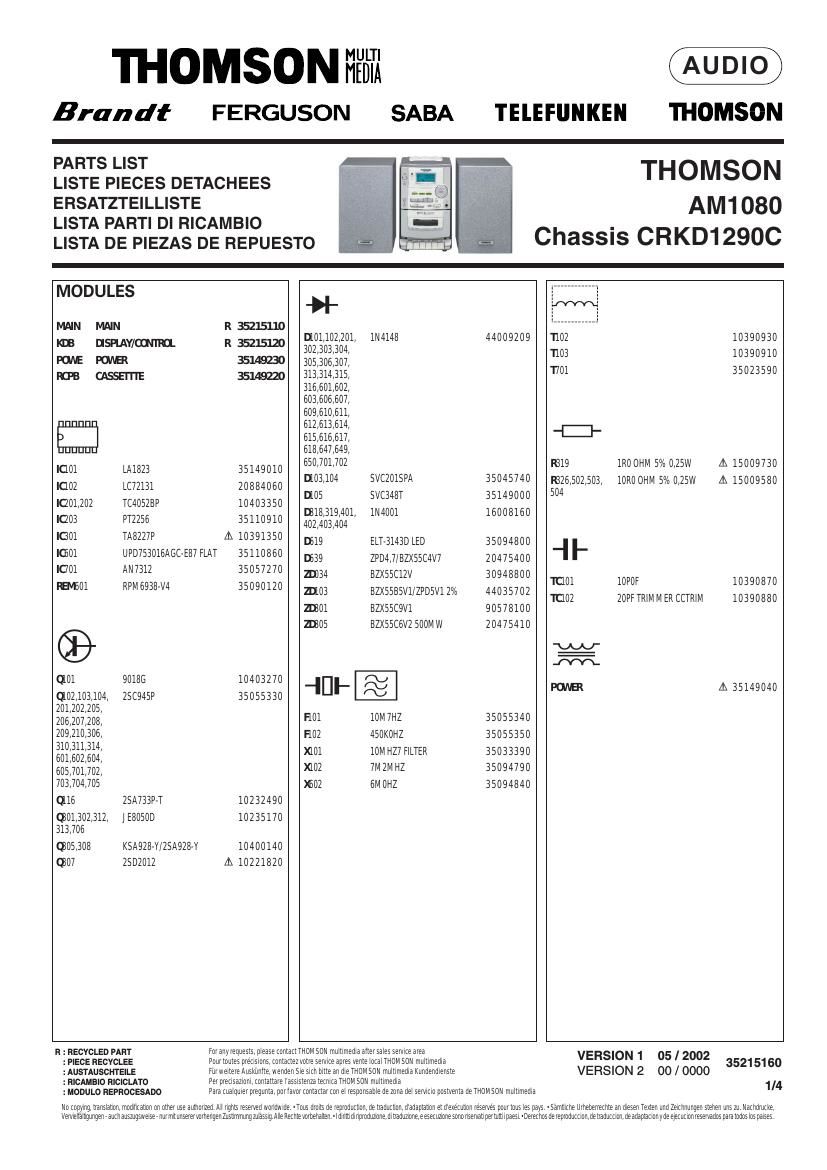

Page 1
MECHANISM MECANIQUE MECHANIK MECCANICA MECANISMO TCM130-2 OPTICAL PLAYER 10648750 TCM130-2 LECTEUR OPTIQUE TCM130-2 CD-LAUFWERK TCM130-2 ASSIEME OTTICA TCM130-2 MECANISMO OPTICO CASSETTE MECHANISM 35110920 MECANIQUE CASSETTE CASSETTENLAUFWERK MECCANICA CASSETTA MECANISMO CASSETTE BUSH RUBBER CD REAR 35055560 AMORTISSEUR CAOUTCHOUC CD ARRIERE DAEMPER GUMMI CD HINTEN AMMORTZZATORE DI GOMMA CD POSTERIORE AMORTIGUADOR DE GOMA CD TRASERA BUSH RUBBER CD FRONT 35051630 AMORTISSEUR CAOUTCHOUC CD AVANT DAEMPER GUMMI CD VORN AMMORTIZZATORE DI GOMMA CD ANTERIORE AMORTIGUADOR DE GOMA CD DELANTERA ACCESSORIES ACCESSOIRES ZUBEHOER ACCESSORI ACCESORIOS LC20 CD DVD CD-ROM LENS CLEANER 35128640 LC20 NETTOYEUR DE LENTILLE CD DVD CD-ROM LC20 LINSENREINIGER FÜR CD DVD CD-ROM LC20 PULITORE PER LENTI DI CD DVD CD-ROM LC20 LIMPIADOR DE LENTE CD DVD CD-ROM M AM1080 UM TH 55348490 AM1080 NU TH AM1080 BA TH AM1080 IU TH AM1080 IU TH AM1080 PARTS LIST 35215160 AM1080 LISTE DE PIECES DETACHEES AM1080 ERSATZTEILLISTE AM1080 LISTA PARTI DI RICAMBIO AM1080 LISTA DE PIEZAS DE REPUESTO CRKD1290C SERVICE MANUAL 35215180 CRKD1290C DOCUMENTATION TECHNIQUE CRKD1290C TECHNISCHE DOKUMENTATION CRKD1290C DOCUMENTAZIONE TECNICA CRKD1290C DOCUMENTACION TECNICA OTHER PARTS AUTRES PIECES SONSTIGE TEILE ALTRE PARTI OTRAS PIEZAS HEADPHONE SOCKET 35214620 PRISE CASQUE KOPFHOERERBUCHSE PRESA JACK TOMA JACK D621 DISPLAY LCD 35149030 AFFICHEUR LCD LCD-ANZEIGE VISUALIZZATORE LCD VISUALIZADOR LCD F401 3A15T 250V TIME-LAG FUSEW 10119590 3A15T 250V FUSIBLE TEMPORISE 3A15T 250V SICHERUNG 3A15T 250V FUSIBILE TEMPORIZZATO 3A15T 250V FUSIBLE TEMPORIZADO LM501,502, LAMP 9V/100MA 1/4W 35094850 503 AMPOULE 9V/100MA 1/4W LAMPE 9V/100MA 1/4W LAMPADA 9V/100MA 1/4W LAMPARA 9V/100MA 1/4W SPK301 LOUDSPEAKER SOCKET 10494310 PRISE HAUT PARLEUR LAUTSPRECHERBUCHSE PRESA ALTOPARLANTE TOMA HEMBRA ALTAVOZ SW600 SLIDE SWITCH 35094860 COMMUTATEUR SCHALTER COMMUTATORE CONMUTADOR SW601,602, MICROSWITCH 10449940 603,604,605, MICRO CONTACTEUR 606,607,608, MIKROSCHALTER 609,610,611, MICROINTERRUTTORE 612,613,614, MICROCONTACTOR 615,616,617 SW701 SWITCH 10449930 COMMUTATEUR SCHALTER COMMUTATORE CONMUTADOR EQUIPMENT/PRESENTATION EQUIPEMENT/PRESENTATION AUSSTATTUNG/GEHAEUSE PARTI VARIE EQUIPO/PRESENTACION AM1080 (REMOTE CONTROL) 35215150 AM1080 (TELECOMMANDE) AM1080 (FERNBEDIENUNG) AM1080 (TELECOMANDO) AM1080 (TELEMANDO) LOUDSPEAKER BOX ASSY RIGHT AND LEFT 35215130 ENCEINTE ACOUSTIQUE GAUCHE ET DROITE LAUTSPRECHERBOX RECHTS UND LINKS CASSA ACUSTICA DESTRO E SINISTRO CAJA ACUSTICA DERECHA Y IZQUIERDA LOUDSPEAKER BOX RIGHT OR LEFT 35215140 ENCEINTE ACOUSTIQUE GAUCHE OU DROITE LAUTSPRECHERBOX RECHTS ODER LINKS CASSA ACUSTICA SINISTRA O DESTRA CAJA ACUSTICA IZQUIERDA O DERECHA FITTING UPPER RIGHT 35145940 CALE SUPERIEURE DROITE POLSTER OBEN RECHTS DISTANZIATORE SUPERIORE DESTRA CALZO SUPERIOR DERECHA FITTING UPPER LEFT 35145930 CALE SUPERIEURE GAUCHE POLSTER OBEN LINKS DISTANZIATORE SUPERIORE SINISTRA CALZO SUPERIOR IZQUIERDA FITTING DOWNER RIGHT 35145920 CALE INFERIEURE DROITE POLSTER UNTEN RECHTS DISTANZIATORE INFERIORE DESTRA CALZO INFERIOR DERECHA FITTING DOWNER LEFT 35145910 CALE INFERIEURE GAUCHE POLSTER UNTEN LINKS DISTANZIATORE INFERIORE SINISTRA CALZO INFERIOR IZQUIERDA FOLDING BOX 55348590 EMBALLAGE CARTON KARTON IMBALLAGGIO CARTONE EMBALAJE CARTON POWER SUPPLY LEADW 10260820 CORDON DALIMENTATION NETZKABEL CAVO DI ALIMENTAZIONE CABLE DE ALIMENTACION AM1080 2/4
Page 2
CHASSIS AND PRESENTATION CHASSIS ET PRESENTATION CHASSIS UND GEHAEUSETEILE TELAIO E DI PRESENTAZIONE CHASIS Y PRESENTACION KDBDISPLAY/CONTROL BOARD 35215120 DISPLAY/CONTROL PLATINE DISPLAY/CONTROL PLATTE DISPLAY/CONTROL PIASTRA DISPLAY/CONTROL PLATINA MAINMAIN BOARD 35215110 MAIN PLATINE MAIN PLATTE MAIN PIASTRA MAIN PLATINA POWEPOWER BOARD 35149230 POWER PLATINE POWER PLATTE POWER PIASTRA POWER PLATINA RCPBCASSETTE BOARD 35149220 CASSETTE PLATINE CASSETTE PLATTE CASSETTE PIASTRA CASSETTE PLATINA 01 CASSETTE FLAP WINDOW 35214730 GLACE VOLET CASSETTE FENSTER CASSETTENKLAPPE VETRO SPORTELLO CASSETTA CRISTAL TAPA CASSETTE 02 CASSETTE FLAP DOOR 35214740 VOLET CASSETTE CASSETTENKLAPPE SPORTELLO CASSETTA TAPA CASSETTE 03 CASSETTE HOLDER 35089060 PORTE CASSETTE CASSETTENHALTER PORTACASSETTA PORTACASSETTE 04 SPRING TORSION HOLDER CASSETTE 35089070 RESSORT A EPINGLE VOLET CASSETTE NADELFEDER CASSETTENKLAPPE MOLLA DI TORSIONE PORTACASSETTA RESORTE HORQUILLA PORTACASETTE 07 VOLUME KNOB 35214750 BOUTON VOLUME LAUTSTAERKEKNOPF ROTELLA DI PLASTICA VOLUME RUEDA PLASTICA MANDO VOLUMEN 08 MONO/STEREO SLIDE BUTTON 35214760 MANETTE MONO/STEREO MONO/STEREO SCHIEBETASTE COMMANDO A CURSORE MONO/STEREO MANECILLA MONO/STEREO 09 DISPLAY WINDOW 35214770 GLACE AFFICHEUR ANZEIGEFENSTER VETRO DEL VISUALZZATORE CRISTAL DEL VISUALIZADOR 10 FRONT PANEL 35214780 FACADE FRONTPLATTE PANNELLO FRONTALE PANEL FRONTAL 15 CASSETTE BUTTON ASSY 35214900 ENSEMBLE DE TOUCHES CASSETTE TASTENEINHEIT CASSETTE ASSIEME TASTI CASSETTA CONJUNTO DE TECLAS CASSETTE 22 CASSETTE DOOR DAMPER GEAR 35089190 ROUE DENTEE PORTE CASSETTE ZAHNRAD CASSETTENHALTER RUOTA DENTATA PORTACASSETTA RUEDA DENTADA PORTACASSETTE 23 GEAR WHEEL CASSETTE HOLDER 35089200 SUPPORT ROUE DENTEE PORTE CASSETTE HALTER ZAHNRAD SUPPORTO RUOTA DENTADA PORTACASSETTA SOPORTE RUEDA DENTADA PORTACASSETTE 24 BUTTON STRIP CD CONTROL/PRESET 35214790 BARRETTE DE TOUCHES 8T CD/PRESET TASTENLEISTE CD CONTROL/PRESET PIATTINA TASTI 8T CD CONTROL/PRESET PLACA DE TECLAS 8T CD CONTROL/ PRESET 25 TIME/MIX BUTTON 35214800 BARRETTE DE TOUCHES TIME/MIX TASTENLEISTE TIME/MIX PIATTINA TASTI TIME/MIX PLACA DE TECLAS TIME/MIX 26 BUTTON STRIP POWER/PROGRAM 35214810 BARRETTE DE TOUCHES POWER/PROGRAM TASTENLEISTE POWER/PROGRAM PIATTINA TASTI POWER/PROGRAM PLACA DE TECLAS POWER/PROGRAM 27 SUPPORT BUTTONS CD/TAPE/TUNER 35111770 SUPPORT DE TOUCHES CD/TAPE/TUNER HALTER KUNSTSTOFF CD/TAPE/TUNER SUPPORTO TASTI CD/TAPE/TUNER SOPORTE TECLAS CD/TAPE/TUNER 28 CD BUTTON 35214830 TOUCHE CD TASTE CD TASTO CD TECLA CD 29 TAPE BUTTON 35214840 TOUCHE TAPE TASTE TAPE TASTO TAPE TECLA TAPE 30 TUNER BUTTON 35214850 TOUCHE TUNER TASTE TUNER TASTO TUNER TECLA TUNER 50 SWITCHED MODE POWER TRANSF. 35149040 TRANSFORMATEUR D'ALIMENTATION TRAFO SCHALTNETZTEIL TRASFORMATORE DI ALIMENTAZIONE TRANSFORMADOR DE ALIMENTACION 53 REAR PANEL 35214890 COFFRET ARRIERE RUECKWAND PANNELLO POSTERIORE TAPA POSTERIOR 65 COUNTER CENTRIRING PART 35145820 CONTRE CENTREUR GEGENZENTRIERSTUECK CONTROCENTRATORE CONTRA ADAPTADOR 66 MAGNET CD 35051560 AIMANT CD MAGNET CD MAGNETE CD IMAN CD 68 COUNTER CENTRIRING HOLDER 35051520 SUPPORT CONTRE CENTREUR GEGENZENTRIERSTUECK HALTER SUPPORT0 CONTROCENTRATORE SOPORTE CONTRA ADAPTADOR 70 CD LOCK MAGNET 35051550 VERROU AIMANT CD RIEGEL MAGNET CD CHIUSURA MAGNETE CD CERROJO IMAN CD 71 CD DOOR 35214860 VOLET CD CD KLAPPE SPORTELLO CD TAPA CD AM1080 3/4 72 LOCK CD DOOR 35089250 VERROU VOLET CD RIEGEL CD KLAPPE CHIUSURA SPORTELLO CD CERROJO TAPA CD 73 CD EJECT SPRING 35176990 RESSORT VOLET CD FEDER CD KLAPPE MOLLA SPORTELLO CD RESSORTE TAPA CD 74 CD OPEN LEVER 35154460 LEVIER OUVERTURE VOLET CD HEBEL (DOOR CD) LEVA APERTURA SPORTELLO CD LEVA APERTURA TAPA CD 80 SPRING TORSION CD DOOR 35089260 RESSORT A EPINGLE VOLET CD NADELFEDER CD KLAPPE MOLLA DI TORSIONE SPORTELLO CD RESSORTE HORQUILLA TAPA CD 81 SUPPORT CD MECHANISM 35214870 SUPPORT MECANIQUE CD HALTER CD LAUFWERK SUPPORTO MECCANICA CD SOPORTE MECANISMO CD 82 CD DOOR DAMPER GEAR 35089280 ROUE DENTEE VOLET CD ZAHNRAD CD HALTER RUOTA DENTATA SPORTELLO CD RUEDA DENTADA TAPA CD 83 GEAR WHEEL CD HOLDER 35089290 SUPPORT ROUE DENTEE VOLET CD HALTER ZAHNRAD SUPPORTO RUOTA DENTADA SPORTELLO CD SOPORTE RUEDA DENTADA TAPA CD
