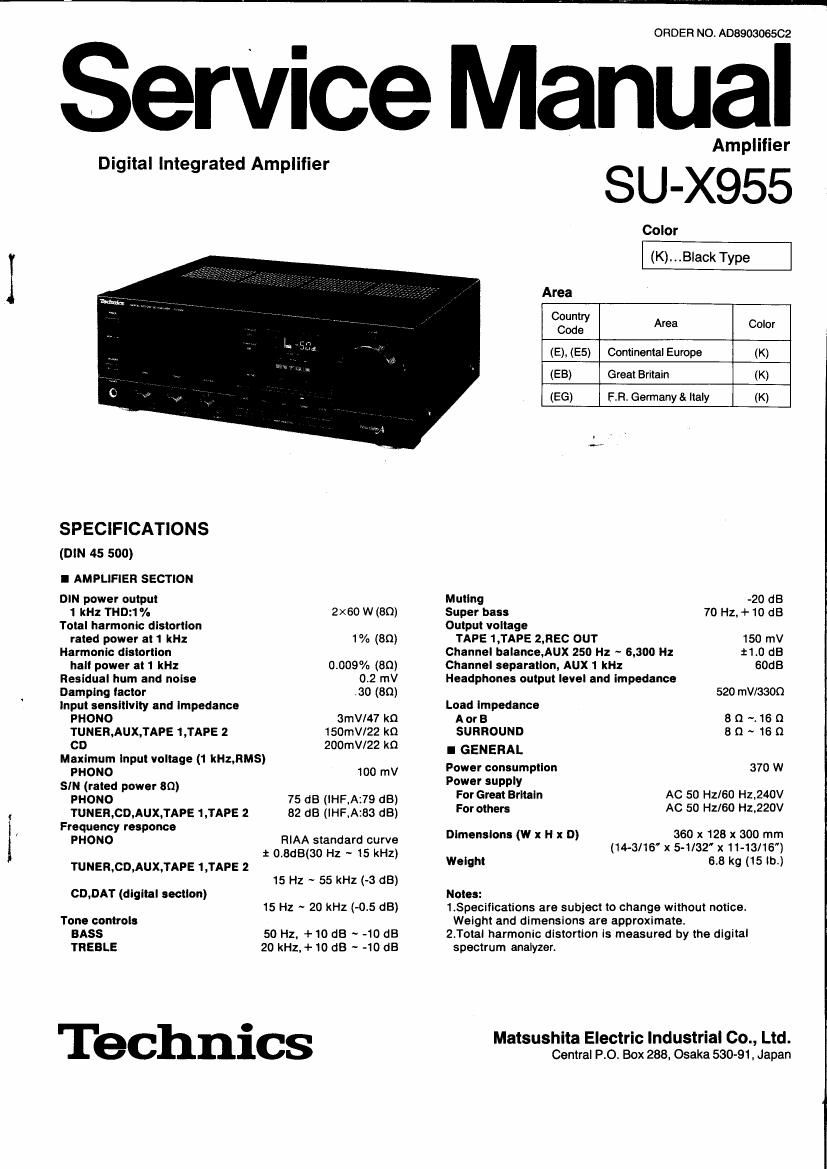

Technics SUX 955 Service Manual
This is the 26 pages manual for Technics SUX 955 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Technics SUX 955 Service Manual (Ocr-read)
Page 2
I CONTENTS
Page
BEFORE REPAIR DESCRIPTION OF FL PANEL ........................... 11
PROTECTION CIRCUITRY . . TERMINAL GUIDE OF IC'S,
ACCESSORY .............. TRANSISTORS AND DIODES ..................... . . 19
LOCATION OF CONTROLS . . . . . PRINTED CIRCUIT BOARDS 9~23
CONNECTIONS ................ .. . 4. 5 WIRING CONNECTION DIAGRAM . .. 24
DISASSEMBLY INSTRUCTIONS , . . . .6~B FUNCTIONS OF IC TERMINALS . . . 25,26
BLOCK DIAGRAM .............. . . . 9, 10 RESISTORS AND CAPACITORS . 27~30
SCHEMATIC DIAGRAM ......................... 1 1 ~18 REPLACEMENT PARTS LIST . . 30~32
EXPLODED VIEW .................................... 33, 34
I BEFORE REPAIR
(1)Turn off the power supply. Using a 100, SW resistor connect both ends ot power supply
capacitors(C701,C702.6800pF) in order to discharge the voltage.
(2)Betore turning the power supply on , after completion of repair , slowly apply the primary voltage by using
a power supply voltage controller to make sure that the consumed currentat 50Hz/60Hz in NO SIGNAL mode
should be shown below with respect to supply voltage 220V/240V.
Power supply voltage ACZZOV ACZ40V
Consumed current 50H: 122 ~ 365mA 112 - 336mA
Consumed current 60H: 119 ~ 356mA 110 - 330mA
I PROTECTION CIRCUITRY
The protection circuitry may have operated it either of the following conditions is noticed:
* No sound is heard when the power is switched ON.
a: Sound stops during a pertormance.
The function of this circuitry is to prevent circuitry damage it, for example, the positive and negative speaker
connection wires are shorted , or if speaker systems with an impedance less than the indicated rated
impedance of this unit are used.
If this occurs, follow the procedure outlined below:
1.Switch OFF the power.
2.Determine the cause of the problem and correct it.
3.Switch ON the power once again.
Note:
When the protection circuitry functions. the unit will not operate unless the power is first switched OFF and then
ON again.
I ACCESSORY
. AC power supply cord ............................ 1
Configuration of AC power supply cord dltters according to
area.
SJA1 BB .......... For (EB) area only.
SFDACOSEOS . .. .For others.
