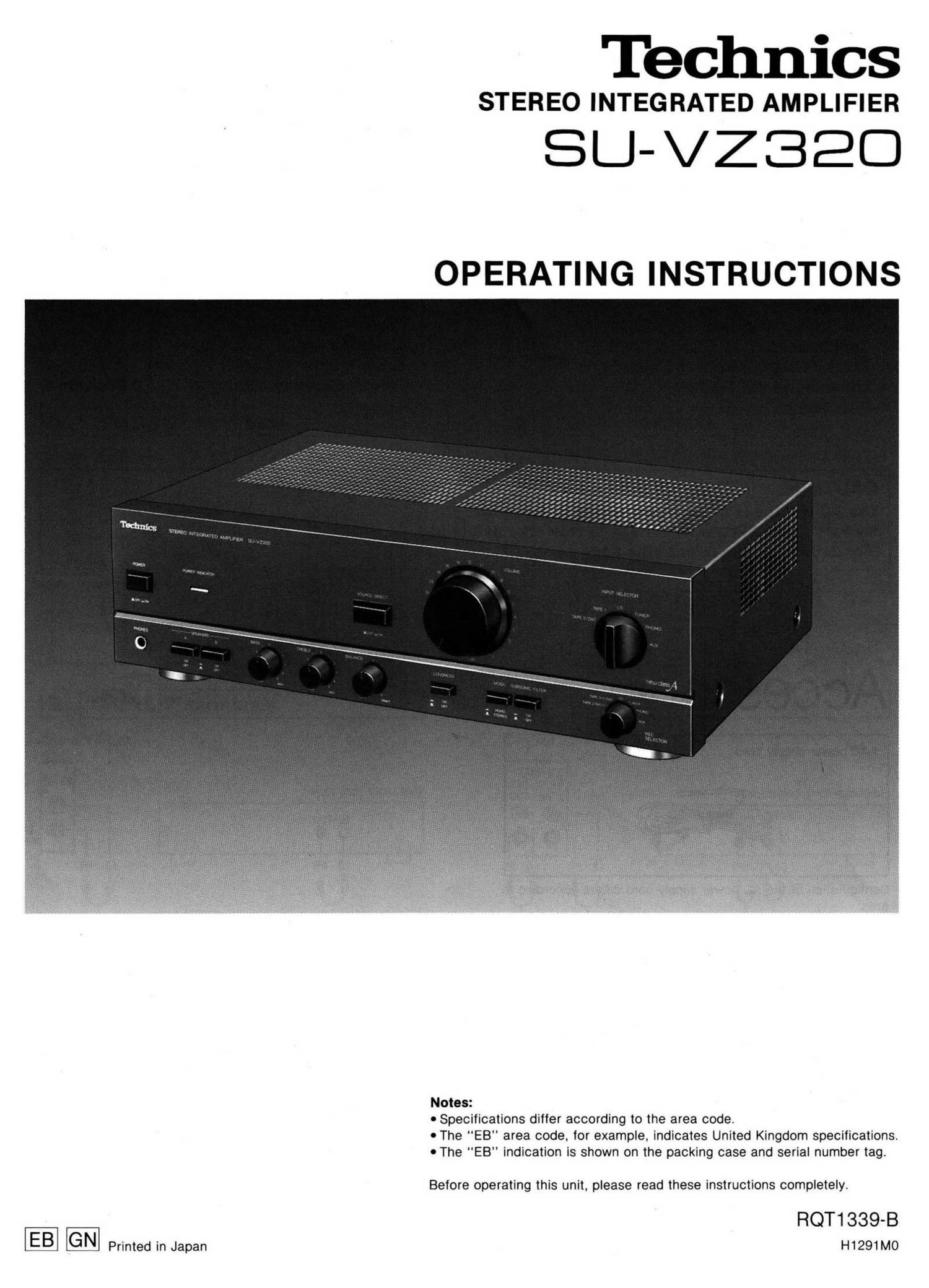

Page 1
EB
GN
t..."
Printed in Japan
Technics
STEREO INTEGRATED AMPLIFIER
SU-VZSEO
OPERATING INSTRUCTIONS
Notes:
0 Specifications differ according to the area code.
0 The "E8 area code. for example, indicates United Kingdom specifications.
0 The "EB" indication is shown on the packing case and serial number tag.
Before operating this unit, please read these instructions completely.
RQT1339-B
H1291MO
Page 2
We want to thank you for selecting this product and
to welcome you to the growing family of satisfied
Technics product owners around the world.
We feel certain you will get maximum enjoyment
from this new addition to your home.
Please read these operating instructions carefully,
and be sure to keep them handy for convenient
reference.
Contents
o Accessory ............................... 2 0 Technical Specifications ................. 10
o For United Kingdom ...................... 2 0 Protection Circuitry ...................... 1O
0 Connections ............................. 3 0 Maintenance ............................. 10
0 Front Panel Controls and Functions ...... 5 0 Suggestions for Safety ................... 11
0 Listening to the Sound ................... 6 0 Troubleshooting Guide ......... Back cover
0 Recording ............................... 8
CAUTION:
(For details, please refer to the page 4.)
The AC voltage is different according to the area.
Be sure to set the proper voltage in your area before use.
Accessory
0 AC power supply cord .............................. 1
Configuration of the AC power supply cord differs according to
area.
For United Kingdom
The EB" indication is shown on the serial number tag.
Important
THE WIREs IN THIS MAINS LEAD ARE COLOURED IN ACCOR-
DANCE WITH THE FOLLOWING CODE.
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug proceed as follows. The wire which is col-
oured BLUE must be connected to the terminal which is marked
with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the ter-
minal which is marked with the letter L or coloured RED.
Under no circumstances must either of the above wires be con-
nected to the earth terminal of a three pin plug.
