Technics SUV 90 D Owners Manual

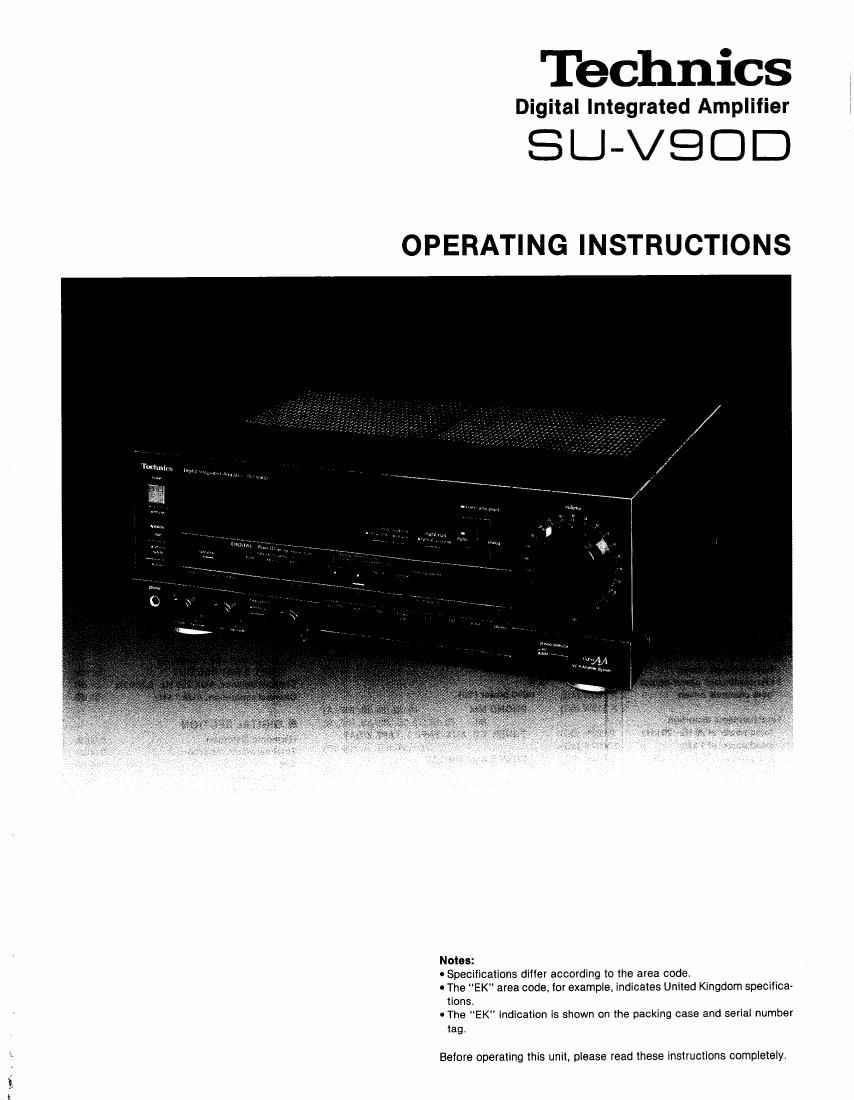

Page 1

Technics

Digital Integrated Amplifier

SLJ-VE-

OPERATING INSTRUCTIONS

nim;

Moles:

I Specifications differ according to the area code

I The EK area code. ior example. indicates United Kingdom specifica-
tions

¢ The EK indication is shown on the packing case and seriai number
tag.

Before operaiing this unii, please read these instructions completely

Page 2

HSHEJNE

9W Spire/tea 0%,

We want to thank you for selecting this product and
to welcome you to the growing family of satisfied
Technics product owners around the world.

from this new addition to your home.
Please read these operating instructions carefully,
and be sure to keep them handy for convenient

We feel certain you will get maximum enjoyment reference.

- For United Kingdom... . .................. 2 0 Front Panel Controls and Functions ...... 6
- Technical Specifications ........... . 2 . Operation ................................ 8
- Accessory ................................ 3 - Recording ................................ 10
- Suggestions for Salety ................... 3 - Using the Graphlc Equalizer, etc. ......... 11
0 Before Use ......... . 3 - Troubleshooting Guide . ........... 12
0 Connections ............................. 4 0 Maintenance ............................. 12

For United Kingdom

The EK indication is shown on the name plate.

Important

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN

ACCORDANCE WITH THE FOLLOWING CODE.
BLUE: NEUTRAL
BROWN: LIVE

As the colours of the wires in the mains lead 01 this unit may not

correspond with the coloured markings identliying the terminals

in your plug, proceed as lollcws. The wire which is coloured BLUE

must be connected to the terminal which is marked with the letter
N or coloured BLACK.

The wire which is coloured BROWN must be connected to the ter-
minal which is marked with the letter L or coloured RED.

Technical Specifications 00.000000,

I MAIN AMP. SECTION
20 Hz~20 kHz continuous power output

both channels driven 2 X 100W (80)
1 kHz continuous power output
both channels driven 2 X 150W (4o)
2 X 115W (89)
Total harmonic distortion
rated power at 20 Hz~2tl kHz 0.002% (an)
rated power at 1 kHz 0 0007% (80)
hall power at 20 Hz~20 kHz 0.002% (en)

hall power at 1 kHz
lntermodulelion dlstorllon
rated power 31250 Hz: 8 kHz:4:1, at) 0.005%
rated power at 50 Hz: 7 kHz . ,SMPTE. an
0.005%

0 0007% (8(1)

Power bandwidth
both channels driven, -3 dB
5 Hz~60 kHz (89, 0.025%)

Residual hum and noise 0.8 mV
Damping loctor 30 (40). 60 (80)
Headphones output level and impedance
700 mV/SSOQ
Load impedance
MAIN or REMOTE 4fl~160
MAIN and REMOTE 80~160
I PRE AMP. SECTION
lnpul sensitivity and impedance
PHONO MM 2.5 mV/47k0
MC 170 liV/ZEOQ

TUNER, CD, AUX, TAPE 1, TAPE 2/DAT
150 mV/18k0

POWER AMP DIRECT 1V/47kQ

PHONO maximum input voltage (1 kHz, RMS)

MM 160 mV
MC 12 mV
S/N
rated power (40)
PHONO MM 79 dB (88 dB, IHF. A)

MC 70 dB (72 dB, 250 MV, IHF. A)
TUNER, CD, AUX, TAPE 1, TAPE 2/DAT
100 dB (IHF. A: 106 dB)
POWEFI AMP DIRECT
106dB(|HF,A1115 dB)

726 dB power (40)
PHONO MM 79 (18
MC 68 dB
TUNER, CD, AUX, TAPE 1, TAPE 2/DAT
86 dB
50 mW power (40)
PHONO MM 76 dB
MC 69 dB
TUNER, CD, AUX, TAPE 1, TAPE 2/DAT
80 dB

Frequency response
PHONO RIAA standard curve
i0.2 dB (20 H2~2O kHz)
TUNER, CD, AUX, TAPE 1, TAPE 2/DAT
0.8 Hz~150 kHz (*3 (13)
+0, -D.1 dB (20 HZ~20 kHZ)
POWER AMP DIRECT 0 8 HZ~150 kHz (*3 dB)
Tone controls
BASS 50 HZ,410dB~10dE
TREBLE 20 kHz, +10 dBleO dB
Loudness control (volume akao dB)
50 Hz, +9 dB

Muling -20 d8
Output voltage and Impedance

TAPEI, 2/DAT REC OUT 150 mV
Channel balance. AUX 250 Hz~6.300 Hz :1 dB
Channel separation, AUX 1 kHz 55 dB
I DIGITAL SECTION
Harmonic distortion 0.002%
Total harmonic distortion 0.003%

S/N 110 dB
Dynamic range 99 dB
Frequency response

2 Hz~20 kHz, +0 3 dB. *03 dB

I GENERAL

Power consumption
Power supply

For continental Europe AC 50 Hz/BO Hz, 220V

For United Kingdom, Australia and others
AC 50 Hz/60 Hz, iiDV/127V/220V/240V
Dimensions (WXHXD) 480 X 158 X 397 mm
[16»15/16" >< 6-7/32" X 15-5/8")
13.2 kg [29.04 lb.)

765W

Weight

Notes:

1 Specifications are subject to change without
notice.
Weight and dimensrons are approximate,

2. Total harmonic distortion is measured by the
digital spectrum analyzer (HP 3045 system).
