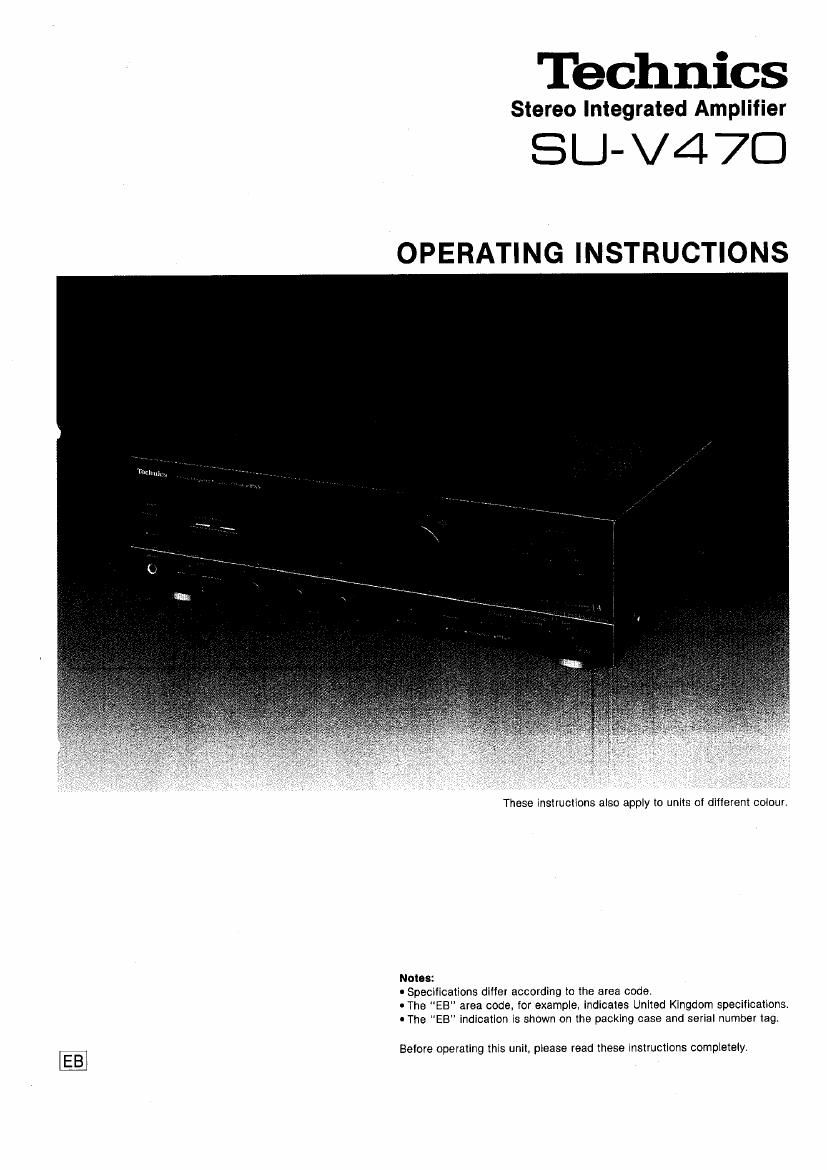

Technics

Stereo Integrated Amplifier

SLJ-V4 /

OPERATING INSTRUCTIONS

Thcliui:

These instructions also apply to units of ditterent colour.

Notes:

c Specifications differ according to the area code.

- The "EB area code, for example, Indicates United Kingdom specifications.
0 The E8" indication is shown on the packing case and serial number tagt

Before operating this unit, please read these instructions completely.

Page 2

Qéfllbym (gm

We want to thank you for selecting this product and
to welcome you to the growing family of satisfied
Technics product owners around the world.

We feel certain you will get maximum enjoyment

from this new addition to your home.

Please read these operating instructions caretully,
and be sure to keep them handy for convenient
reference.

Contents

. Accessory ............................... 2
- For United Kingdom ...................... 2
. Suggestions for Saiety ................... 3
- Connections ............................. 4
- Front Panel Controls and Functions ...... 6
0 Listening to the Sound ................... 7

Accessory

- AC power supply cord (Refer to page 5) .................. 1

Recording ............................... 9
Technical Specifications .. .. 10
Protection Circuitry ....... . . 10
Troubleshooting Guide _ . . . .. 11
Maintenance ............................. 11

For U n ited Kingdom (EB area code model only)

The EB" indication is shown on the serial number tag.

Important

THE WIRES IN THlS MAINS LEAD ARE COLOURED IN ACCOR-
DANCE WiTH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identilying the
terminals in your plug proceed as follows. The wire which is col-
oured BLUE must be connected to the termlnal which is marked
with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the ter-
mlnal which is marked with the letter L or coloured RED.

This apparatus was produced to BS 800.

Page 5

D

C TAPE 1" terminals
Connect a first tape deck,

Tape deck 1 (not included)
LlNE m LiNE our

'- (F'irtfiitfivi)

TLU

( TAPE 2IDAT terminals )

Connect a second tape deck or a digital audio tape deck (DAT).

Digital audio tape deck (DAT)
(not included)

i" OUT

ANALOG $1 8"

L4 (none

( POWER AMP DIRECT terminals )

Connect a compact disc player.

A superior level of tone quality can be obtained, because the
signal from these terminals are sent directly to the volume con-
trol and power amp section of this unit.

The sounds from a component connected to these terminals can-
not be recorded.

Compact disc player (not Included)

LINE OUT

TT

(H) (L)

To connect the AC power supply cord
(included)

Connect the AC power supply cord (included) alter all other
cables and cards are connected.

AC power supply
cord (included)

Household
AC outlet

Flt a suitable plug to an
AC power supply cord.

Connectl to speaker systems

One pair 01 speaker systems can be connected to the A"
terminals oi this unit and one pair to the 8" terminals.

I Load impedance

-When only the A" or only the "B" terminals are used:4-16
ohms

~When both the A" and the B" terminals are used simul-
taneously28-16 ohms

C

H (+)

To connect main (A) andlor second (B)
speaker systems

Main (A) speaker systems
(not Included)

(right)

(lett)

Second (B) speaker systems
(not Included)

(right) (left)

ITo connect cords to terminals

(D Strip oft the outer cover- (D
ing. and twist the center :5 9 =

conductor. 10 mm Twist.

(2 Turn 5 or 6 times.

(13/32)
63 ©
9) Insert the wire and tighten @ i
screw completely.
Pull the wire to assure a
proper connection.
Note: Be sure to only connect positive (+) cords to
positive ( +) terminals, and negative (-) cords to negative
(-)termlnals.

Note:

To prevent damage to circuitry, never short-
circuit the plus (+) and minus (-) speaker
terminals.
