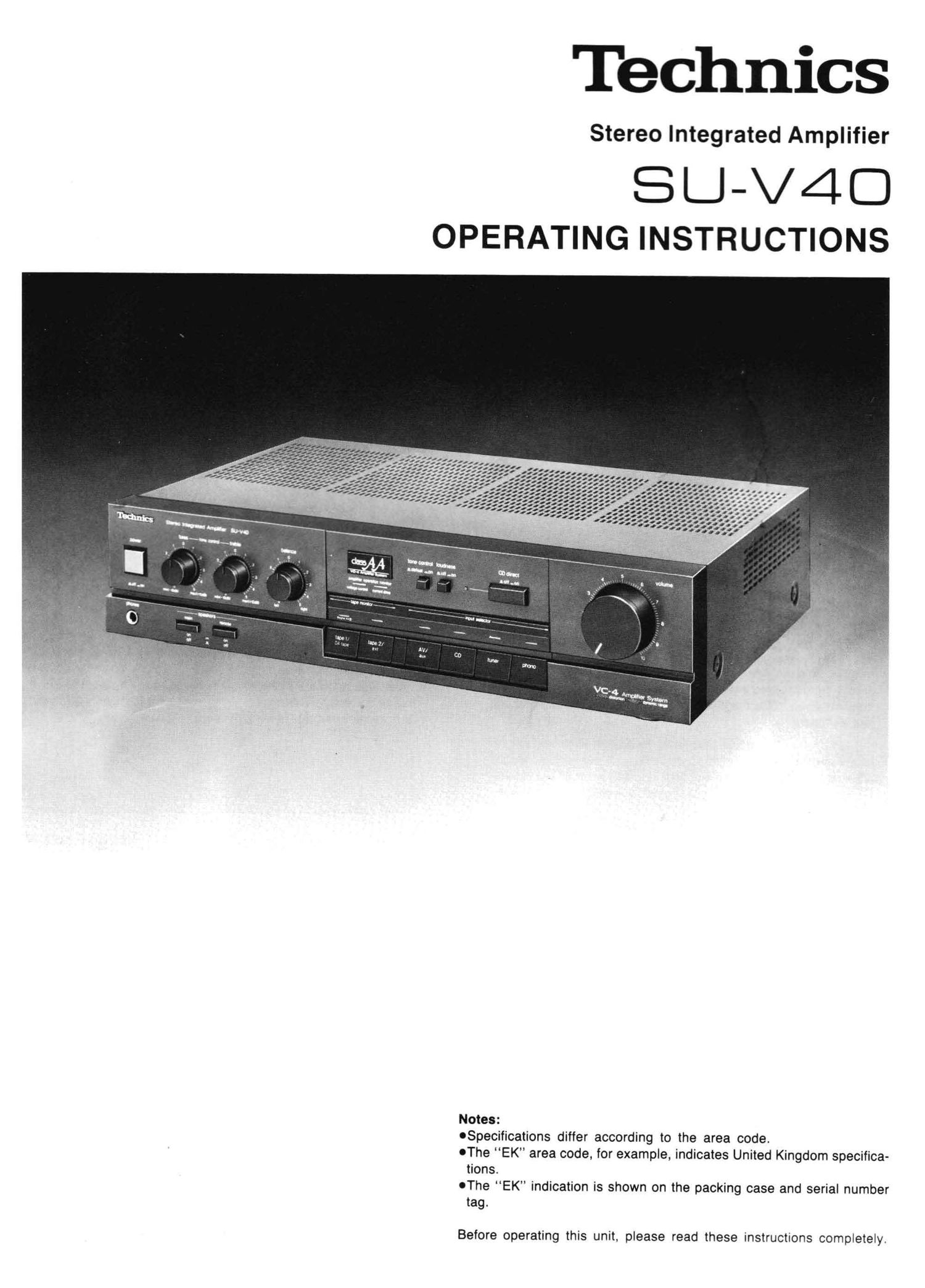

Technics

Stereo Integrated Amplifier

SU-V4D

OPERATING INSTRUCTIONS

Notes:
OSpecifications differ according to the area code.

OThe EK area code, for example, indicates United Kingdom specifica-
tions.

OThe EK indication is shown on the packing case and serial number
tag.

Before operating this unit, please read these instructions completely.

Page 2

r ,9 -
tea/r / @6117 flat/2.x

We want to thank you for selecting this product and
to welcome you to the growing family of satisfied

Technics product owners around the world.

We feel certain you will get maximum enjoyment

Contents

OBefore Using This Unit ..................
OFor United Kingdom ....................
0Accessory ..............................
0For Safe Use of This unit ................
0Connections ............................
OFront Panel Controls and

Their Functions

hODNNN

G)

from this new addition to your home.
Please read these operating instructions carefully,

and be sure to keep them handy for convenient
reference.

OOperation .............................. 8
0Recording .............................. 9
OTechnicaI Specifications ................ 10
0Maintenance ............................ 10
0Protection Circuitry .................... 10
0Troubleshooting Guide .................. 11

Before Using This Unit

Be sure to disconnect the mains cord before adjusting the
voltage selector.
Use a minus (-) screwdriver to set the voltage selector (on the

bottom panel) to the voltage setting for the area in which the unit
will be used.

(If the power supply in your area is 117 V or 120 V. set to the
127 V position.)

Note that this unit will be seriously damaged it this setting is not
made correctly. (There is no voltage selector for some countries;
the correct voltage is already set.)

For United Kingdom...E...................

The EK indication is shown on the name plate.

Important

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this unit may not

Accessory

OAC power supply cord (see page 5)

correspond with the coloured markings identifying the terminals
in your plug, proceed as follows. The wire which is coloured
BLUE must be connected to the terminal which is marked with
the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.
