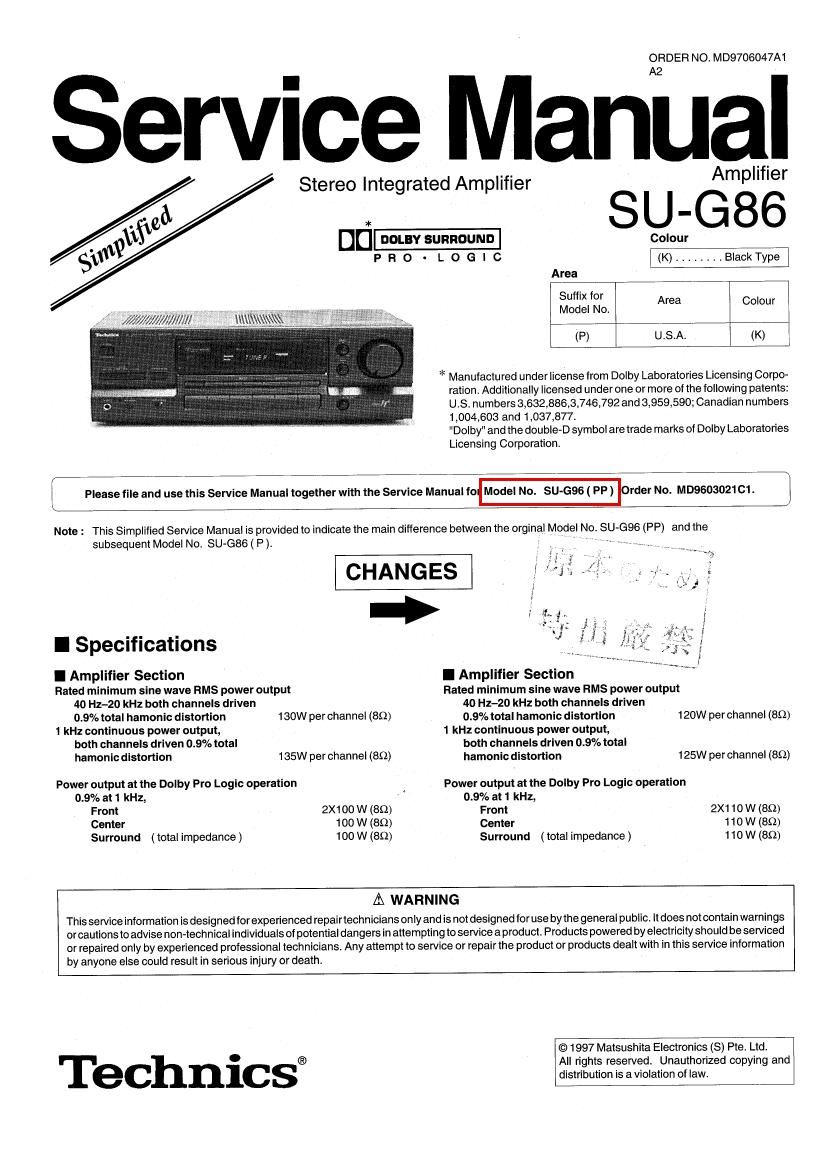

ORDER NO. MD9706047A1
A2

ervice Manual

Stereo Integrated Amplifier Amplifier

SU-G86

Colour
- L 0 G l C (K) BlackType
Area
Suffix for
A
Model No. rea Colour
(P) USA. (K)

* Manufactured under license from Dolby Laboratories Licensing Corpo-
ration. Additionally licensed under one or more of the following patents:
UtS. numbers 3,632,886,3.746,792 and 3,959,590; Canadian numbers
1,004,603 and 1,037,877.

"Dolby" and the double-D symbol are trade marks of Dolby Laboratones
Licensing Corporation

[ Please file and use this Service Manual together with the Service Manual fo Model No. SU-GSG ( PP) IOrder No. MD960302101. ]

Note : This Simplified Service Manual is provided to indicate the main difference between the orginal Model No. SU-G96 (PP) and the
subsequent Model No. SU-GBG ( P). 3 ' - ._ .t _ 7. ,

CHANGES

I Specifications

I Amplifier Section

Rated minimum sine wave RMS power output
40 Hz-zo kHz both channels driven
0.9% total hamonio distortion

I Amplifier Section
Hated minimum sine wave RMS power output
40 Hz-20 kHz both channels driven

130W per Channel (89) 0.9% total hamonic distortion

120W per channel (89)

1 kHz continuous power output,
both channels driven 0.9% total
hamonlc distortion 135W per channel (89)

Power output at the Dolby Pro Logic operation
0.9% at 1 kHz,

Front 2x100 W (89)

1 kHz continuous power output,
both channels driven 0.9% total
hamonic distortion 125W per channel (89)

Power output at the Dolby Pro Logic operation
0.9% at 1 kHz,

Front 2X1 10 W (852)

Center 100 W (89) Center 110 w (an)

Surround (total impedance) 100 W (89) Surround (total impedance) 110 W (89)
A WARNING

This service information is designed tor experienced repairtechnicians only and is not designed for use by the general public. It does not contain warnings
orcautionsto advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced
or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in this service information
by anyone else could result in serious injury or death.

Technics®
