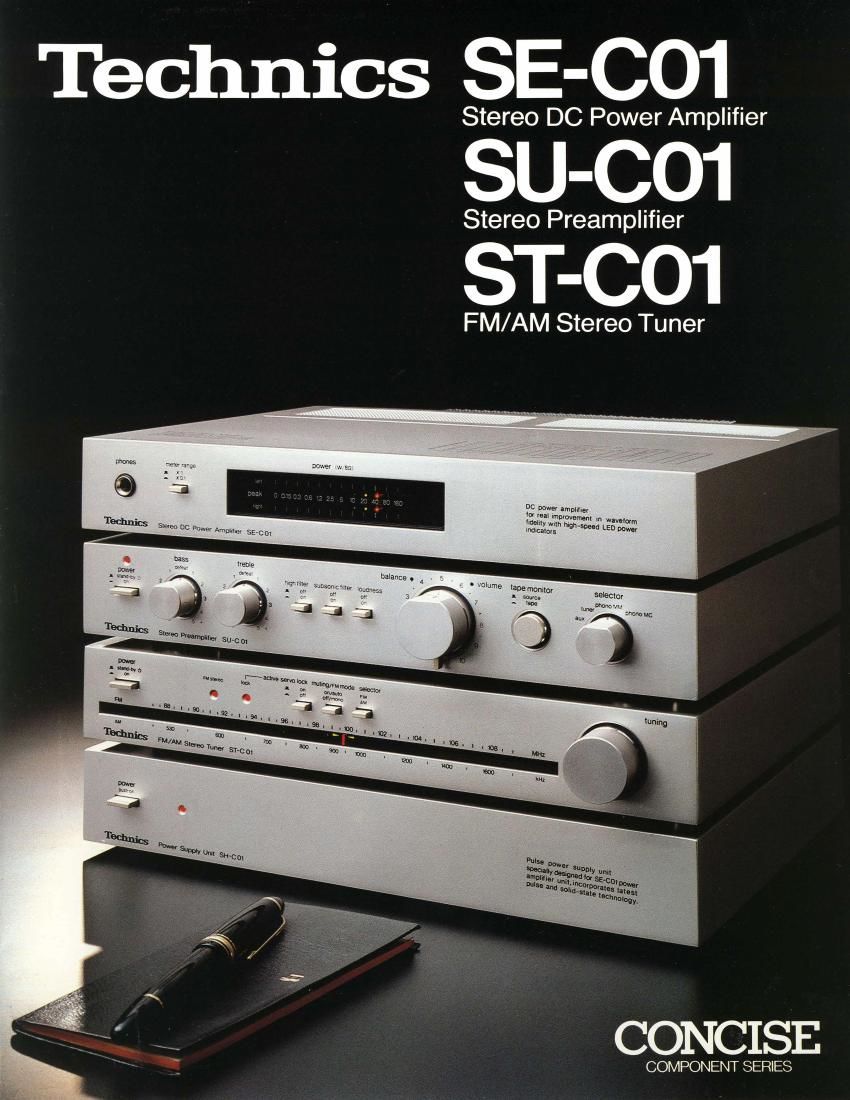

power twtam llll I I I I I I I I I I I I peak 0 01!l 03 OG 12 25 5 10 20 40 80 1GO roglll I I I I I I I I l I I I SE-C01 Stereo DC Power Amplifier The new SE-C01 may be a compact component but puts out the kind power you expect from a much larger amplifier. And it does this in the high fidelity tradition, with virtually flat response over the entire audible range and total harmonic distortion of only 0.03%. It's a true DC amplifier that can handle the nuances and power of a full orchestra. DC Amplifier for Realism in Sound This DC (direct coupled) amplifier was designed without any coupling capacitors. You won't find any in the signal path nor in the feedback loop. Nor will you encounter DC drift and instability, problems often arising from this type of design. They have been controlled by the following design measures: a current-mirror loaded differential first amp stage using thermally balanced dual transistors; a voltage amp stage with purely resistive load and excellent open­ loop characteristics; and a power amp stage 20 Hz square wave response SE-C01 Input Output Non DC amp Input Output Gain, phase, vs. frequency response Frequency(Hz) which, by utilizing the diode-like behavior between transistor base and emitter, provides accurate thermal compensation over an extremely wide range of temperatures. Other features of special note are the current limiter and the short circuit protection circuit. Delivers 50 W +50 W continuous power both channels driven into 8 ohms, 20 Hz to 20 kHz with no more than 0.03% THO This DC amplifier illustrates that big things can come in small packages. The SE-C01 has ultra­ compact dimension but delivers 50 watts per channel minimum r.m.s. power into 8 ohms with no more than 0.03% total harmonic distortion from 20Hz to 20,000 Hz. Except in the most "power hungry" installations, it easily handles the dynamics and detail of a full orchestra. Output power vs. total harmonic distortion ' """"--+SPou! - ' :BE�m i : 1o.Hzb01hellil""''l'ldr-Y1!1'11181! � ' l'';§!lllml � 3 ' ' "" 0.1 2 3 s 710 2 3 5 7100 2 3 s
