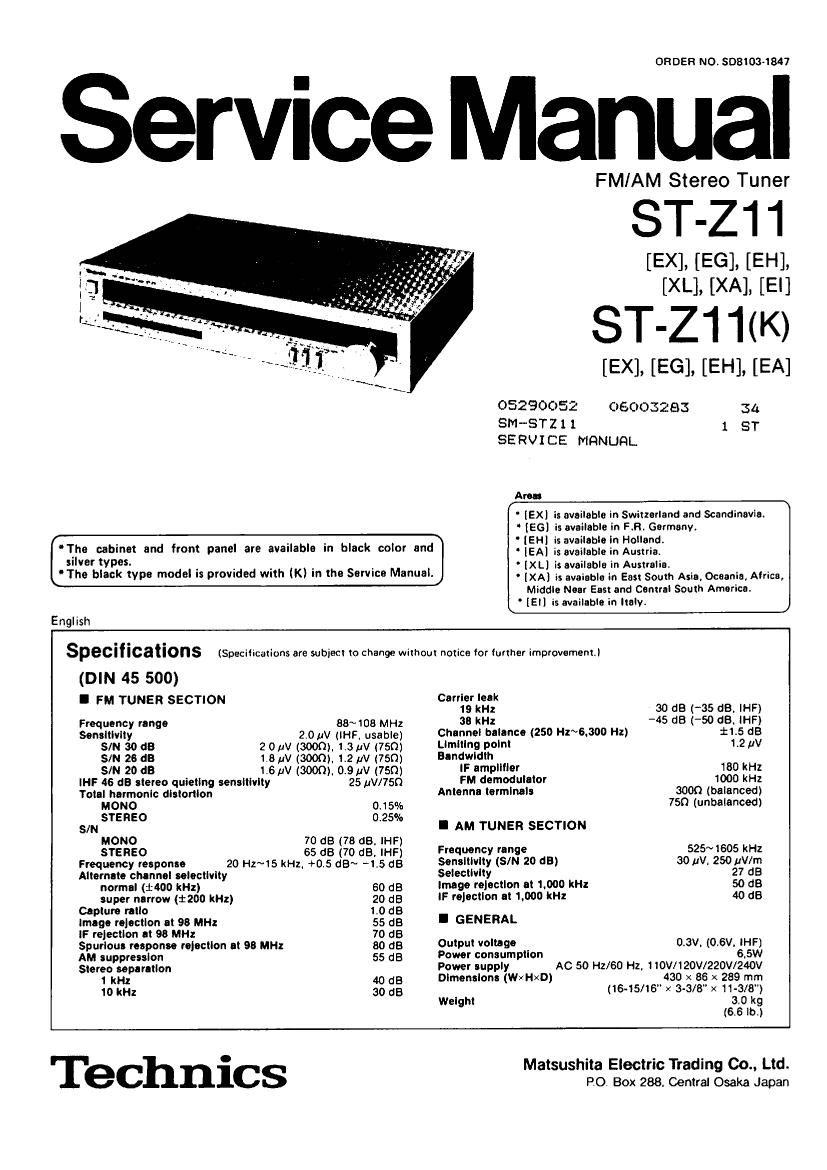

Technics STZ 11 Service Manual
This is the 18 pages manual for Technics STZ 11 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Technics STZ 11 Service Manual (Ocr-read)
Page 3
I LOCATION OF CONTROLS
FM stereo indicator
Signal-strength indicators
Band selector (1 FM, - AM)J ITuning control
FM-IF band FM muting/FM mode selector
(1. normal. - super narrow) ( n on/FM auto, - off/FM mono)
AM antenna terminal Output terminals
Voltage seiector
FM amenna terminais
Note: FM Antenna
Note that the FM antenna terminals used on products for FR Germany are me 7552 iype only.
FM MPX IC
Power supply circuit AM bar antenna coil
Power Transformer FM RF ampIifier
Variabie
capacitors
FM IF/AM RF
ampiifier and
AM canvener IC
FM IF detector 10
Fuses
LED drive circuit
