Technics ST GT 350 Owners Manual

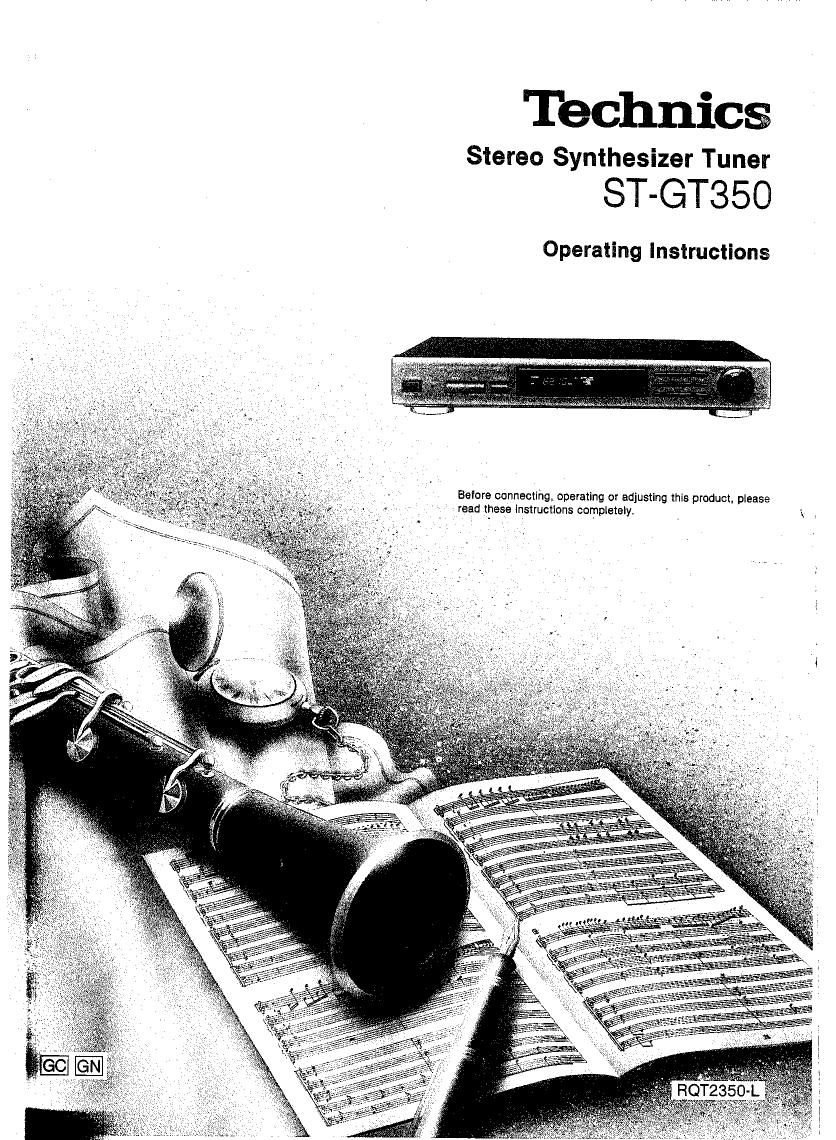

Page 1

Technics
Stereo Synthesizer Tuner

ST-GT35O

Operating Instructions

Before connecting, operating or adjusting this product, please
read these Instructions completely: .

no
if:

Page 2

c.

Dear Customer

Thank you for purchasing this Technics product.
For optimum performance and safety, please read
these instructions carefully.

Contents

Technical specifications ......
Suggestions for safety . . . .
Front panel controls ...............
Accessories . .
Connections

Receiving radio broadcasts ....................
To lock a broadcast station being received ..........
If noise is excessive in the FM stereo mode ,

To check the FM signal strength.

Preset tuning .............

Automatic memory presettlng . 10
Manual memory presettlng ..... .. 11
To listen to preset broadcast stations .................. 11
Troubleshooting guide ............... Back cover

FF areas except Australia and N1.

CAUTION:

The AC voltage ls different according to the
area.

Be sure to set the proper voltage in your area
before use.

(For details, please refer to the page 7.)

FFor Australia and Nix
THIS TUNER/RECEIVER Is CAPABLE OF RECEIVING THE
NEW AM STEREO BROADCASTS FROM THE AM BAND
RADIO STATIONS.
HOWEVER LIKE MANY TUNERS AND RECEIVERS CURRENT-
LY AVAILABLE ON THE MARKET lT WILL REPRODUCE THIS
AM STEREO SIGNAL ONLY IN AM MONO, WHICH. lN EFA
FECT, IS OF NO LESSER QUALITY THAN YOUR EXISTING

AM MONO TUNER/RECEIVER,

I FM TUNER SECTION

Frequency range 8150-10800 MHz (0.05 MHz steps)

Sensitivity 1.5 pv (IHF, usable)
SIN 30 dB 1.3 pV (75 Q)
SIN 26 dB 1.2 uV (75 Q)
SIN 20 dB 0.9 V (75 Q)

IHF 46 dB stereo quietlng sensitivity 28 14V (75 c)

Total harmonic distortion
MONO 0.2%
STEREO 0.3%

SIN
MONO 70 dB (75 dB, IHF)
STEREO 65 dB (70 dB, IHF)

Frequency response 20 Hz-15 kHz, +0.5 to -1.5 dB

Alternate channel selectivity
Moo kHz 65 dB

Capture ratio 1.0 dB

image rejection at 98 MHz 45 dB

IF rejection at 98 MHz 90 dB

Spurious response rejection at 98 MHz 75 dB

AM suppression 55 dB

Stereo separation
1 kHz 40 dB

Carrier leak
19 kHz ~30 dB (-35 dB. lHF)
38 kHz -50 dB (-55 dB, lHF)

Channel balance (250 Hz-s.3 kHz) :15 dB

Limiting point 1.2 uv

Bandwidth
IF amplifier 150 kHz
FM demodulator 1000 kHz

Antenna terminaljs)

.AM TUNER SECTION

Frequency range

75 Q (unbalanced)

522~1611 kHz (9 kHz steps)
530-1620 kHz (10 kHz steps)
Sensltlvfly (SIN 20 dB) at 993 kHz 20 LIV, 600 jiV/m

Selectivity (:9 kHz) at 999 kHz 40 dB
Image rejection at 999 kHz 40 :13
IF rejection at 999 kHz 50 dB
I GEN ERAL

Output voltage 0.3 V (0.6 V, lHF)

Power consumption 9 W
Power supply

For Australia and NZ. AC 50/60 Hz, 230-240 V

For others AC 50/60 Hz. 110-127 V/220-240 V
Dimensions (W x H x D) 430 x 69.3 x 301 mm
Weight 2.6 kg
Notes:

1. Specifications are subject to change without notice.
Weight and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.
