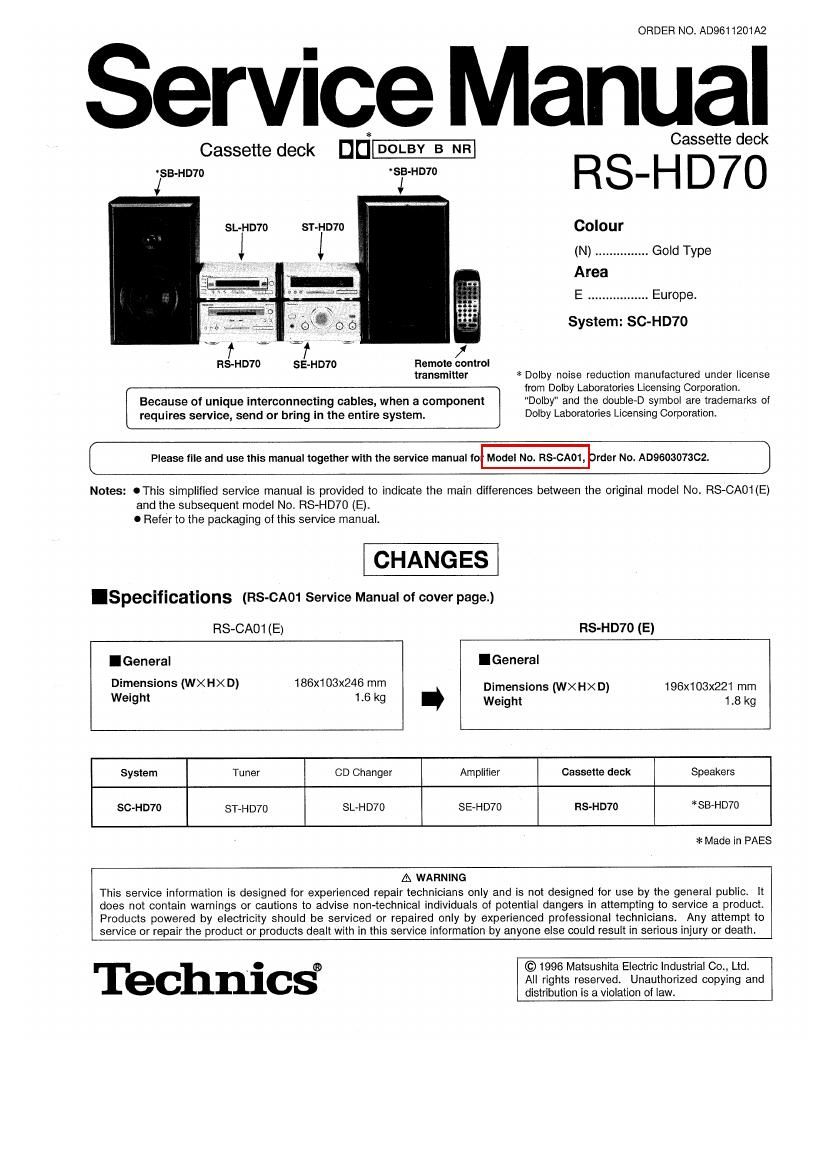

ORDER NO. A09611201A2

Service Manual

Cassette deck D_ Cassette deck

RS-H D70

Colour

(N) ............... Gold Type
Area

E .. Europe.

System: SC-HD70

RS~HD70 SE-HD70 Remote control

transmitter * Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
Dolby" and the double-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.

Because of unique interconnecting cables, when a component
requires service, send or bring in the entire system.

[ Please file and use this manual together with the service manual to Model No. HS-CAOt, Drder No. AD960307362. )

Notes: IThis simplified service manual is provided to indicate the main differences between the original model No. RS~CA01(E)
and the subsequent model No. RS-HD70 (E).
0 Refer to the packaging of this service manual.

CHANGES

.Specifications (RS-CA01 Service Manual of cover page.)

RS-CAOi (E) RS-HD70 (E)
IGeneral IGeneral
Dimensions (WXHXD) 186x103x248 mm Dimensions (WXHXD) 196x108x221 mm
We'ght 1-6 k9 Weight 1.8 kg
System Tuner CD Changer Amplifier Cassette deck Speakers
SC-HD70 ST-HD70 SL-H D70 SE-HD70 RS-HD70 *SB-HD70
at: Made in PAES
A WARNING
This service information is designed for experienced repair technicians only and is not designed ior use by the general public. it
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
, 0 ® © 1996 Matsushita Electric industrial Co., Ltd.
ec nlcs All rights reserved. Unauthorized copying and
distribution is a violation of law.
