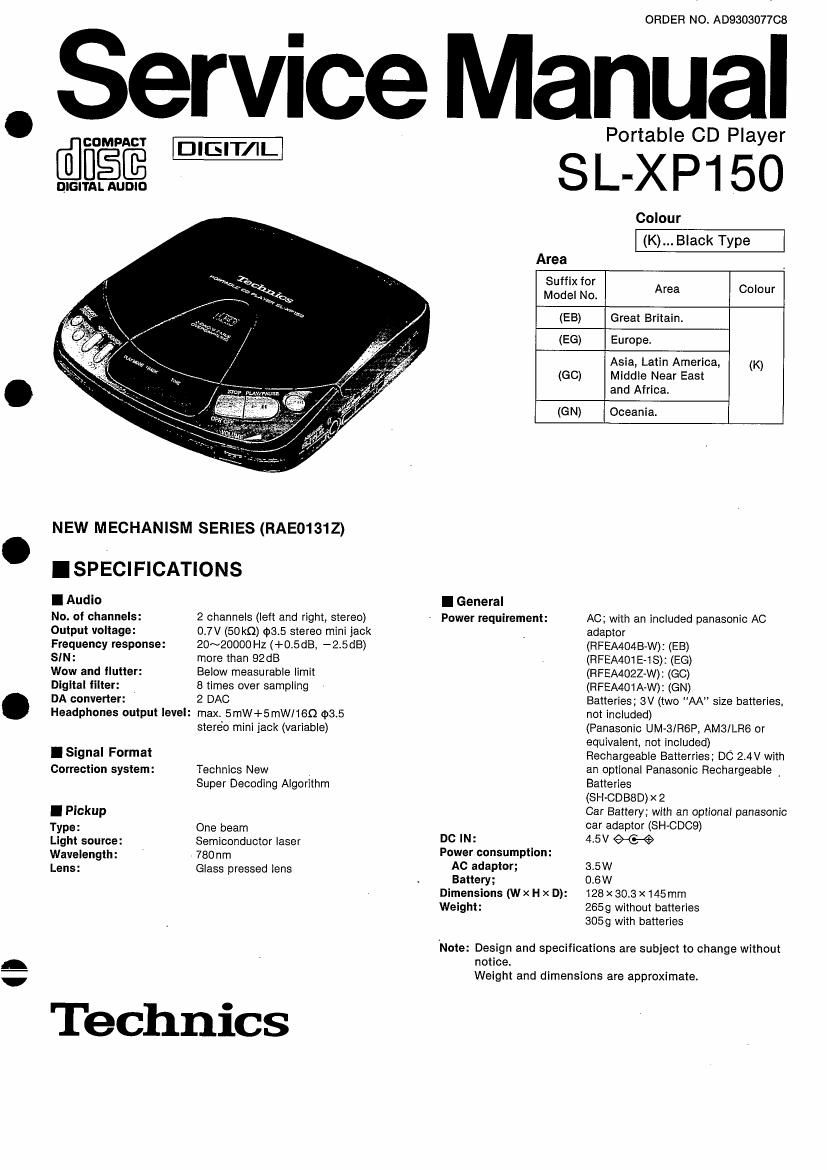

Page 1

ORDER NO. AD930307768

Service Manual

@CD MPACT

DIGITAL AUDIO

ICIT/IL

Portable CD Player

SL- XP15O

Colour
Area
323;): Log. Area Colour

(EB) Great Britain.
(EG) Europe.

Asia, Latin America, (K)
(GO) Middle Near East

and Africa.
(GN) Oceania.

NEW MECHANISM SERIES (RAE0131Z)

ISPECIFICATIONS

I Audio

No. of channels:
Output voltage:
Frequency response:
SIN:

Wow and llutter:
Digital filter:

DA converter:

Headphones output level:

I Signal Format
Correction system:

I Pickup
Type:

Light source:
Wavelength:
Lens:

I General
2 channels (left and right, stereo) ' Power requirement:
0.7V (50 k0) $3.5 stereo mini jack
20~20000 HZ (+0.5dB, - 2,5dB)
more than 92dB
Below measurable limit
8 times over sampling
2 DAC
max. 5mW+5mWI1GQ (p35
stereo mini jack (variable)

Technics New
Super Decoding Algorithm

One beam
Semiconductor laser DC IN:
780nm Power consumption:

Ac adaptor;

Glass pressed lens
Battery;

Dimensions (w>< H x D):

Weight:

AC; with an included panasonic AC
adaptor

(RFEA404B-W): (EB)

(RFEA401 E-1 S): (EG)

(RFEA4022-W): (GC)

(RFEA401A-W): (GN)

Batteries; 3V (two AA size batteries,
not included)

(Panasonic UM-BIHGP, AMSILRB or
eqUivalent. not included)
Rechargeable Batterries; DC 2.4V with
an optional Panasonic Rechargeable
Batteries

(SH-CDBBD) X 2

Car Battery; with an optional panasonic
oar adaptor (SH-CDCQ)

4.5V 9%

3.5W

0.6W

128 x 30.3 X145mm
2659 without batteries
305g with batteries

yNote: Design and specifications are subject to change without

notice.

Weight and dimensions are approximate.

Technics

Page 2

SL-XP150

I CONTENTS

LOCATION AND FUNCTION OF CONTROLS.
ACCESSORIES .............................
PRECAUTION OF LASER DIODE
CONNECTIONS ..
POWER SOURCE
BASIC OPERATING PROCEDURES
HANDLING PRECAUTIONS FOR TRAVERSE DECK
DISASSEMBLY INSTRUCTIONS
HOW TO CHECK THE P.C.B. .
HOW TO INSTALL THE SWITCH KNOB ..
CHECKING THE OPERATION PROBLEMS ON THE

TRAVERSE DECK (OPTICAL PICKUP)..
NOTE FOR SERVICE ..................................

'U
:rn
'0

(D

oomummhuw»

-I.-I

Page
INTERNAL CONNECTIONS OF LCD ..... 12
MEASUREMENTS AND ADJUSTMENTS .. .. 13, 14
DISPLAY FUNCTION OF AUTOMATICALLY-ADJUSTED
RESULTS (SELF-CHECK FUNCTION) .14, 15
BLOCK DIAGRAM....... 16~16
SCHEMATIC DIAGRAM 19~22
PRINTED CIRCUIT BOARD AND
WIRING CONNECTION DIAGRAM . 23, 24
TERMINAL FUNCTION OF ICS 25~29
REPLACEMENT PARTS LIST .. .. 30, 32
RESISTORS AND CAPACITORS . 31
PACKAGING 31

CABINET PARTS LOCATION ....................................................... 33

ILOCATION AND FUNCTION OF CONTROLS

(D Memory/recall button
(MEMORY/RECALL)
® Repeat button (REPEAT)
© Skip/search buttons
(H4 -SKlPl-SEARCH pm)
@ Display
© Stop/operation off button
(I STOP/CPR OFF)
© Earphones/headphones volume
control (VOLUME)
(See page 6.)
® Play/pause button
(b II PLAY/PAUSE)
(See page 6.)
Open button (OPEN)
(See page 6.)
© ASC/S-XBS selector
(ASC/S-XBS)
Earphones/headphones jack
( f) ) 160 ¢a.5
(See page 4.)
® Play mode selector
(PLAY MODE)
Use to select the lollowing play modes:
RESUME: Resume function
NORMAL: Sequential and program
play
RANDOM: Random play

® Hold switch (HOLD)
Use to prevent unintended operation.
You cannot activate functional buttons
when player is in the hold state. The
display window shows ",10 I "
Before operating the front panel buttons
(except for open button), be sure to re-
lease the player from the hold state.
(See page 6.)

® Push button (PUSH)
Press to release the fixed state of the
disc. (See page 6.)

® Out jack (OUT)

(59 DC in lack
(DC IN 4.5 v ee-e )

Random indicator (RANDOM)

® Track display
Shows the total number of tracks and
the track number in play (up to 99).

Time display
Shows the elapsed playing time of the
current track and the total playing time
of the disc. '

Battery check indicator ( N )

@ Resume indicator (RESUME)

® Repeat indicators
One track repeat indicator (1 C) )
All tracks repeat indicator (ALL C) )

® Memory indicator (M)

® Slider
Sliders up to prevent entangling oi the
cord when the stereo earphones are not
in use.

_2_

@@

RANDOMIEI Ct" ii'ni. rm" 1-D.
RESUMEIiLI Ling [I ' Ll [jigglfi'

...... a ~__ .-I u. .

IPrecautions for Listening

with the Headphones

000 not play your headset at a high
volume. Hearing experts advise against
continuous extended play.

Ilf you experience a ringing in your ears,
reduce volume or discontinue use.

000 not use while operating a motorized
vehicle. It may create a traffic hazard and
is illegal in many areas.

IYou' should use extreme caution or tem-
porarily discontinue use in potentially haz-
ardous situations.

uEven if your headset is an open-air type
designed to let you hear outside sounds,
don't turn up the volume so high that you
cant hear what's around you.
