Technics SLV 5 Owners Manual

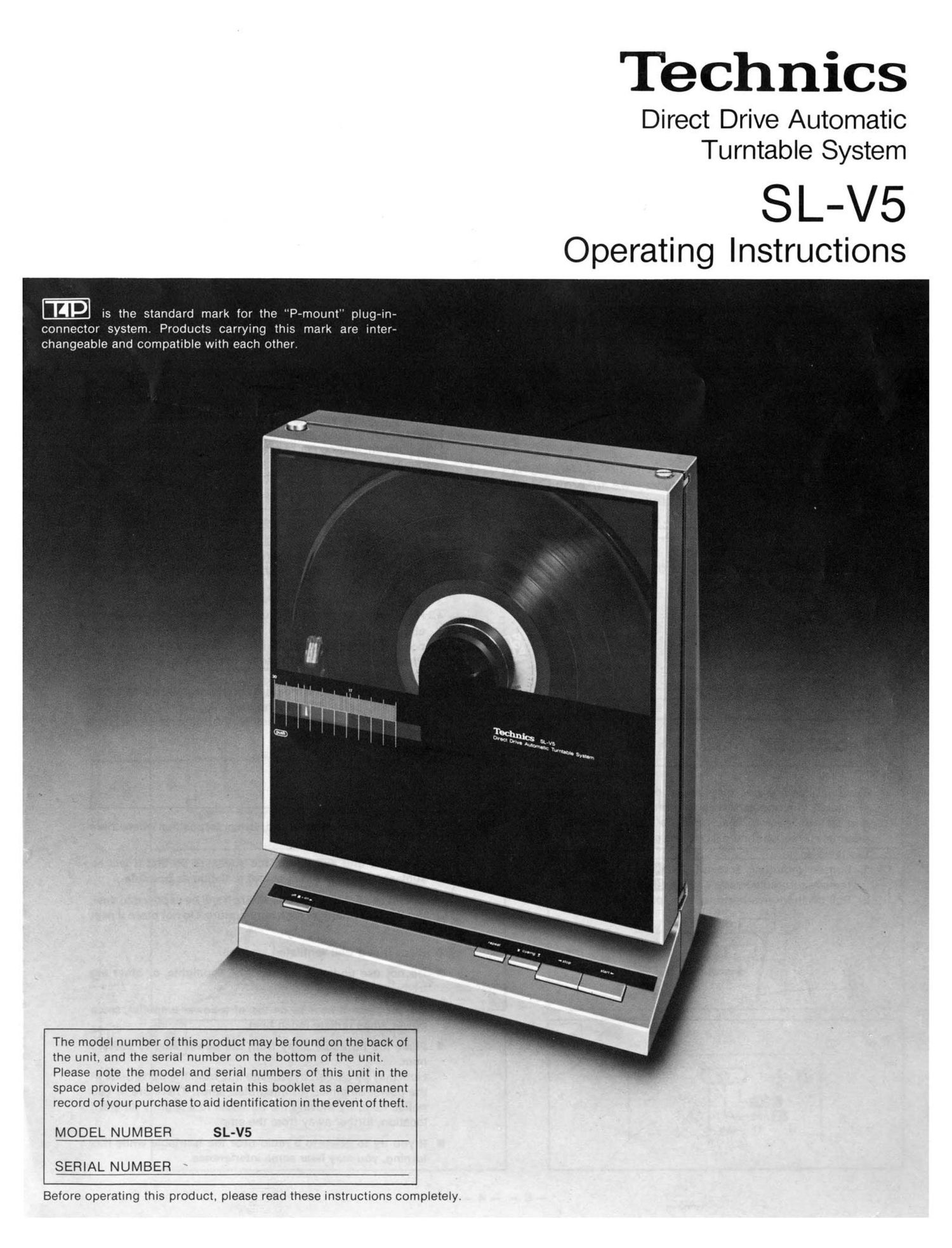

Page 1

Technics

Direct Drive Automatic
Turntable System

S L-V5

Operating Instructions

El is the standard mark for the P-mount" plug-in-
connector system. Products carrying this mark are inter-

changeable and compatible with each other.

trillilltllllitli

The model number of this product may be found on the back of
the unit. and the serial number on the bottom of the unit.

Please note the model and serial numbers of this unit in the
space provided below and retain this booklet as a permanent
record of your purchase to aid identification in the event of theft.

MODEL NUMBER SL-VS

SERIAL NUMBER

Before operating this product. please read these instructions completely.

Page 2

Parts identification

o Open/close button

1.}

0 Front cabinet

o Cartridge (option)

o Tonearm position indicator LED

0 Record groove scale

0 On/ott switch

@ 45 rpm adaptor

@ Turntable mat l

G Turntable platter

Q Record guides

@ Speed selector

0 Start switch

0 Stop switch

o Cueing control

w Repeat switch

®Optical record size sensor

® Stabilizer

i

® Disc size selector

WARNING: To reduce the risk of fire or electric shock, do not expose this

appliance to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE SCREWS.
NO USER-SERVICEABLE
PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

The lightning flash with arrowhead symbol.
within an equilateral triangle. is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the products
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance.
