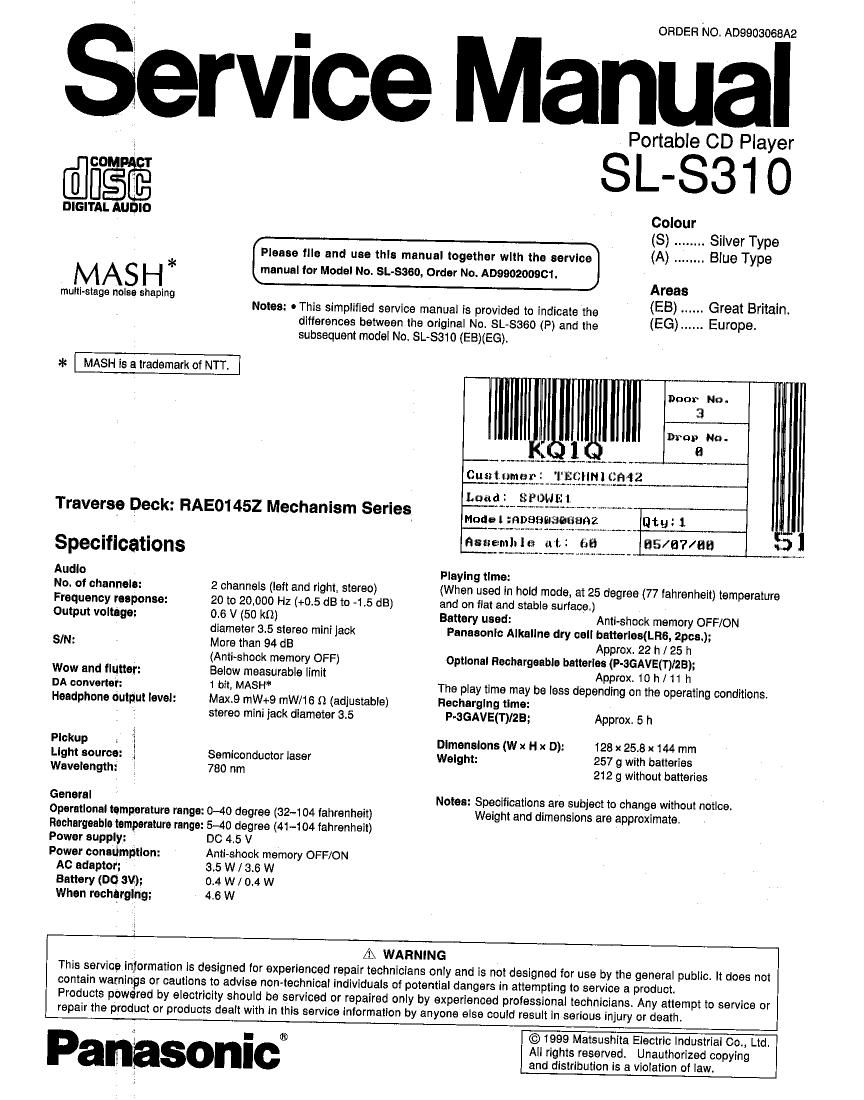

Technics SLS 310 Service Manual

Page 1

CO CT

DIGITAL AUDIO

MASH

mulli-slaga noise shaping

ORDER No. A09903068A2

vice Manual

Portable CD Player

SL-S310

Colour

(S) .. .. Silver Type

Please file and use this manual together with the service
manual for Model No. SL-saoo, Order No. ADeeozooect.

(A) .. Blue Type

Areas

Notes: 0 This simplified service manual is provided to indicate the
differences between the original No. SL-SGSO (P) and the

(EB).
use).

Great Britain.
Europe.

subsequent model No. SL»SS10(EB)(EG).

* MASH is a trademark of NTT.

Traverse Deck: RAE01452 Mechanism Series

Specifications

Audio

No. or channels:
Frequency response:
Output voltage:

SIN:

Wow and flutter:
DA converter:
Headphone output level:

Pickup . j
Light source:
Wavelength:

General
Operational temperature range:
Rechargeable temperature range:
Power supply:
Power consumption:

Ac adaptor;

Battery (DO all):

When recherglng;

2 channels (left and right, stereo)
20 to 20.000 Hz (+0.5 dB to 4.5 dB)
0.6 V (50 km

diameter 3.5 stereo mini Jack

More than 94 dB

(Anti-shock memory OFF)

Below measurable limit

1 bit. MASH"

Max.9 mW+9 mW/16 fl (adjustable)
stereo mini jack diameter 3.5

Semiconductor laser
780 rim

0-40 degree (32-104 fahrenheit)
5-40 degree (41-104 lahrenheit)
DC 4.5 V

Anti-shock memory OFF/ON

3.5 W / 3.6 W

0.4 W / 0.4 W

4.6 W

H. l

cuntcegz

SPUNE I,

Qty: 1
85/87/83 a:

iii :3: i]

Playing time:
(When used in hold mode. at 25 degree (77 lahrenheit) temperature
and on flat and stable surface.)
Battery used: Anti-shock memory OFF/ON
Panasonic Alkaline dry cell betterlee(LFt6, 2pm.);
Approx. 22 h / 25 h
Optional Rechargeable batteries (P-SGAVE(T)IZB);
Approx. 10h/11 h
The play time may be less depending on the operating conditions.
Recharging time:
P-SGAVE(T)IZB; Approx. 5 h
128x 25.8 x144 mm
257 g with batteries
212 9 without batteries

Dimensions (W x H x D):
Weight:

Notes: Specifications are subject to change without notice.
Weight and dimensions are approximate.

This service information is designed for ex
contain warnings or cautions to advise no
Products powered by electricity should b
repair the product or products dealt with i

A. WARNING
perienced repair technicians only and is not designed for use by the general public. It does not
nvtechnical individuals of potential dangers in attempting to service a product.
e serviced or repaired only by experienced professional technicians. Any attempt to service or
n this service information by anyone else could result in serious injury or death.

Paniasonici

© 1999 Matsushita Electric Industrial 00., Ltd.
All rights reserved. Unauthorized copying
and distribution is a violation of law.

Page 2

SL-8310

l Precaution of Laser Diode

CAUTION:
' Wave length: 780 nm

Maximum'output radiation power from pick up: 100 pWNDE

This product utilizes a. laser diode with the unit tumed"'on"

. invisible laser radiation is emitted from the pick up lens.

Laser radiation from the pick up unit is satety level, but be sure the followings:

1. Do not disassemble the pick up unit, since radiation from exposed laser diode is dangerous.
2. Do not adjust the variable resistor on the pick up unit. It was already adjusted.

3. Do not look at the focus lens using optical instruments.
4. Recommend not to look at pick up lens for a long time.

ACHTUNG:

Wellenlange: 780 nm
Maximale strahlungsleistung der laserinhelt: 100 pWNDE

Dieses produkt enthélt eine laserdiode. lm elngeschalteten zustand wird unsichtbare laserstrahlung von der lasereinheit adgestrahit.

Die strahlung an der lasereinheit isl ungef'ahrllch, wenn tolgende punkte beachtet warden:

1. Die lasereinheit nicht zerlegen, da die strahlung an der freigelegten laserdiocle gefahriich ist.
2. Den werksseitig iustierten einstellregler der lasereinreit nicht verstellen.
3. Nicht mit optischen instrumenten in die fokussierltnse blioken.

4. Nlcht fiber Iangera zeit in die lokussierlinse blicken.

CLASS 1
LASER PRODUCT

I Schematic Diagram

(This schematic diagram may be modified at any time with the development of new technology.)

Notes:
08201 : Laser ON/OFF switch in OFF" position.
(It turns "ON" with disc holder closed.)
c8202 : Flest detector switch in "OFF" position.
(it turns "0N" when optical pickup comes to innermost periphery.)
ISSOt : Play/pause (D II) switch.
.8502 : Stop/operation off (I POWER OFF) switch.
08303, 304: Skip/search (5303: MP> $304zl<<,«) switches.
08305 : Repeat (REP) switch.
08306 : Memory/recall (MEMORY/RECALL) switch.
08307 : S-XBS Selector (S-XBS) switch.
03308 1 Anti-shock (A.SHOCK) switch.

08309 : Play mode selector (MODE) in NORMAL" position.
(RANDOMWNOHMALH RESUME)

08310 : Hold (HOLD) switch in "OFF" position.

OVFttt : Power supply voltage adjustment VFt.

IVR701-1, VFl701v2:Volume control VFl.

thSIBtE LASER RADlATlilN WHEN OPEN AND lNiElltuCK BEFEMEB.

DANGER Avommnmrexrusmrroanv. (Inside of product)

ADVARSEL thsrlrtum violavwn. Nlltsmrrltlirustrtltvurltr

titumrmlumon UNDGA UDSETTELSE in stature ('"de'sman 5 apparaa)

AVATWSSA JA SUNALUKITUS flHlTEnAESSA OLET AlWllNA

ROI vmuirémmnsnrtutu iunrsosnersrrlr 0"99" S'Séillal
osvrrueusnsttltiirinNirrrtuturiitorrlwor» .
MING somttutnwo annrnrlsmltsil (Apparatens "Sldal

usrrus usmsnlutn Nit Drrsri Ants on srrtnvrnsds

ADVARSEL cams, unel EKSPDNERINU rot sttlterl (Mums "infidel

VORSIGHT UNSWHTEARE LASERSYRAHLUNG. WENN ABDEGKUNB EEDFfNEi

WSlWEfiHEllSVERRlEGELUNG UBERBRUEKi (Im lnneren des Gerates)

MW DEM SIRAHL AUSSETZIM.

OThe voltage value and waveforms are the reference voltage of this
measured by DC electronic voltmeter (high impedance) and oscilloscope
on the basis of GND terminal (DC iN Jack). Accordingly, there may arise
some errors In the voltage values and waveforms depending upon the
internal impedance of the tester or measuring unit.

OThe parenthesized is the voltage for test disc (1kHz, L+Ft, 0 dB) in play
mode, and the other, for no disc in stop mode.

oAC adaptor is used for power supply.

OSignal line

-D- : Positive voltage line.
: Audio signal line.

clmportant safety notice:

Components identified by A mark have special characteristics important
for safety. Furthermore, special parts which have purposes of fire-
retardant (resistors), high-quality sound (capacitors), low-noise (resistors),
etc. are used. When replacing any of components, be sure to use only
manufactures specified parts shown in the parts list.

Caution!

IC and LSl are sensitive to static electricity.

Secondary trouble can be prevented by taking care during repair.
0 Cover the parts boxes made of plastics with aluminum foil.

0 Ground the soldering iron.

0 Put a conductive mat on the work table.

I Do not touch the pins of IC or LSl with fingers directly.
