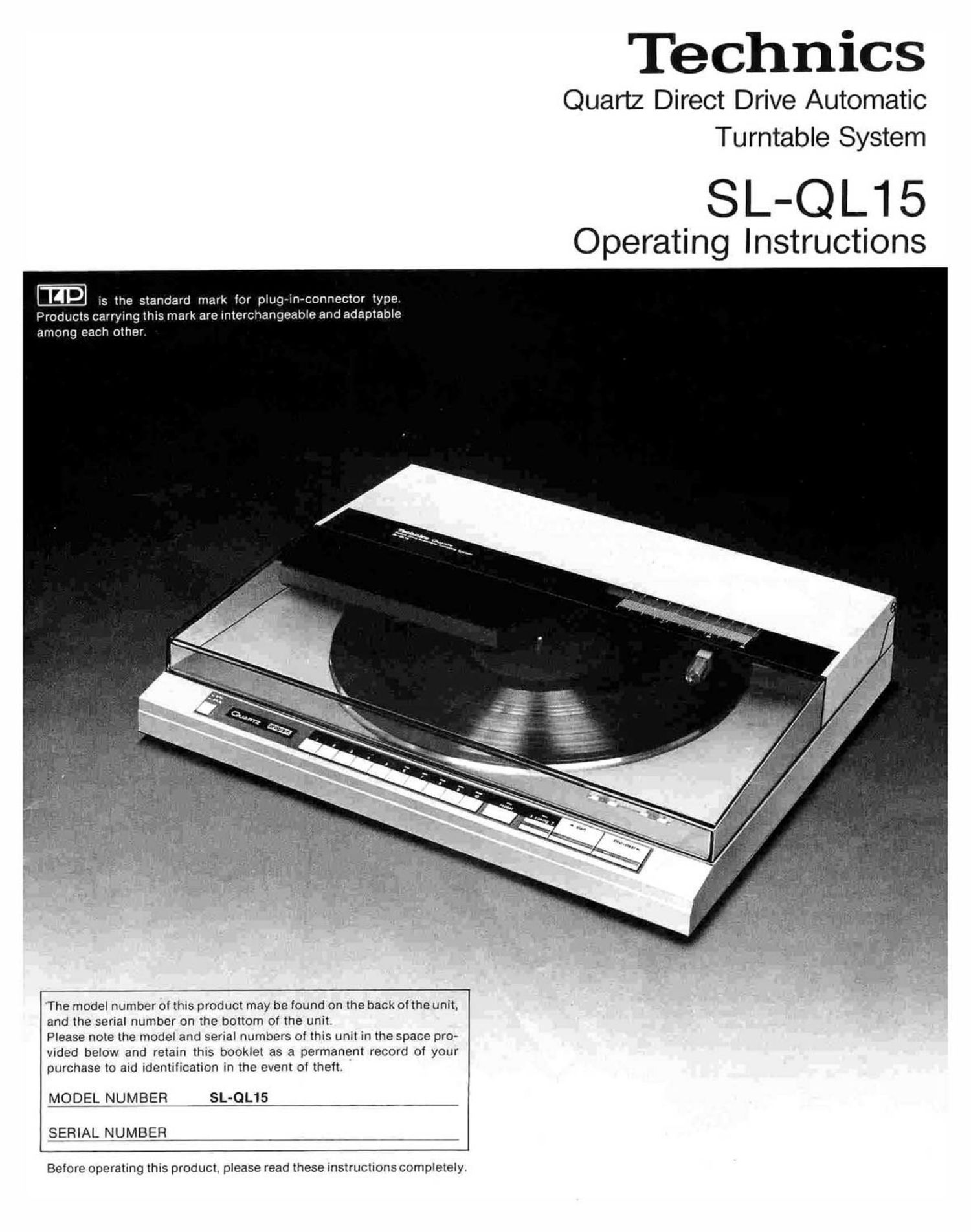

Technics SLQL 15 Owners Manual

Page 1

is the standard mark for plug-in-connector type.

Products carrying this mark are interchangeable and adaptable
among each other

The model number of this product may be found on the back ol the unit,
and the serial number on the bottom of the unit

Please note the model and serial numbers of this unit in the space pro-
wded below and retain this booklet as a permanent record of your
piircnase to aid identification in the event of theft.

MODEL NUMBER SL-QL15

SERIAL NUMBER

Before operating this product please read these instructions completely.

Technics

Quartz Direct Drive Automatic
Turntable System

SL-QL15

Operating Instructions

Page 2

Parts identification

0 Upper cabinet 9 Record groove scale

o Tonearm position
indicator LED

o Cartridge

a LED program indication o Stop/clear switch

o On/olt switch I . . I
, -A _ _ - ,_ -7 9 Start switch

@ Cueing control

0 Program keys

0 Repeat switch

@Slylus cue-down position
adjustment screw

0 Stylus pressure
adjustment screw

Q Shutter switch

Q Reset switch

Q Turntable mat ® Center spindle

@ 45 rpm adaptor

@ Turntable platter

6 Lower cabinet @ Speed selector

@ Optical sensor
sensitivity selector

The lightning flash with arrowhead symbol,
Within an equilateral triangle. is intended to
alert the user to the presence of uninsulated
dangerous voltage" within the products
enclosure that may be of suiticnent magnitude
to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK

I10 NUT OPEN

CAUTION; TO REDUCE THE RISK OF
ELECTRIC SHOCK. DO NOT
REMOVE SCREWS.
NO USER-SERVICEABLE
PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence oi important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance.

WARNING: To reduce the risk of fire or electric shock,
do not expose this appliance to rain or moisture.

_2-
