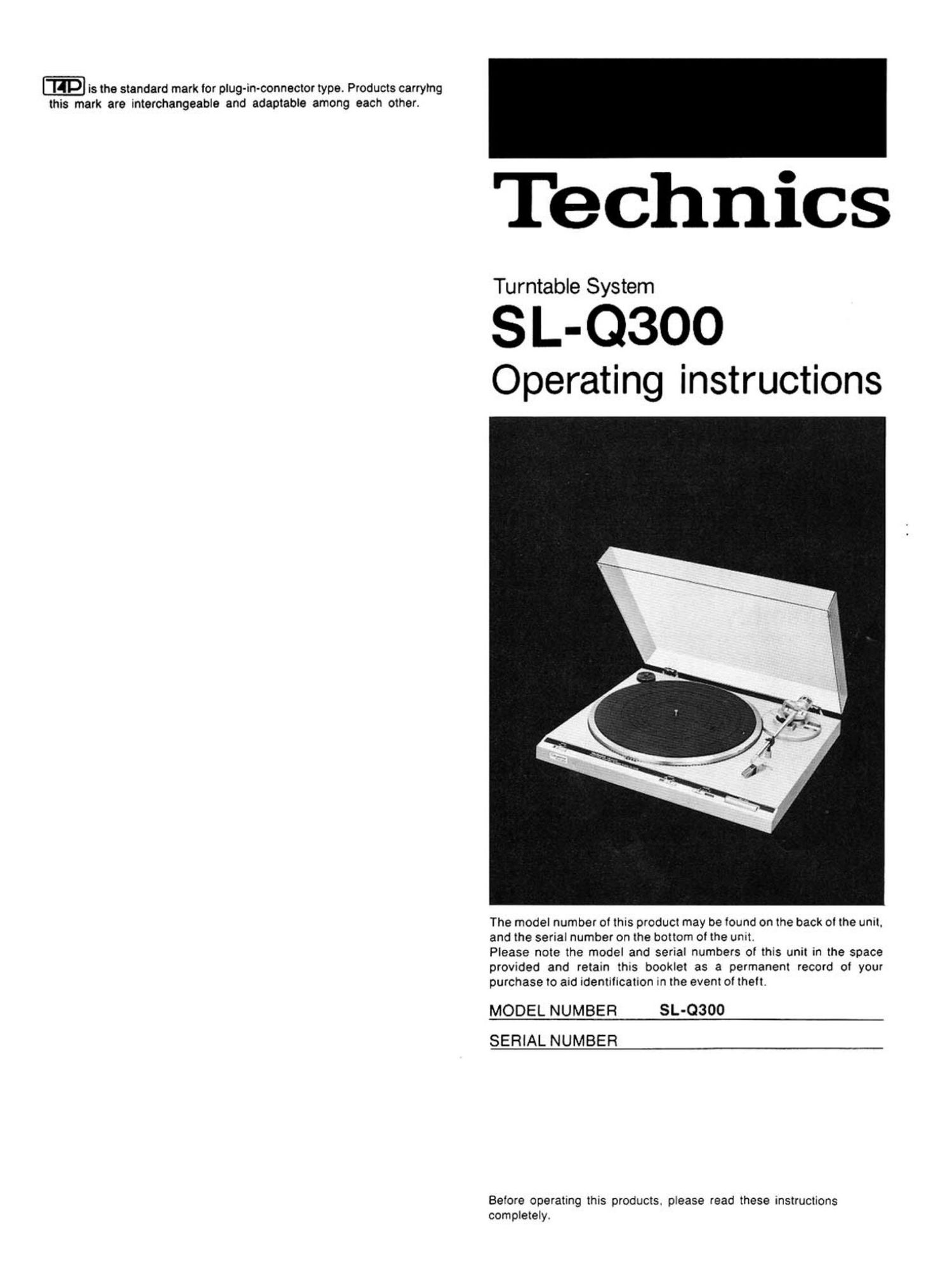

Page 1
1113 is the standard mark for plug-in-connector type. Products carrying
this mark are interchangeable and adaptable among each other.
Technics
Turntable System
SL-Q3OO
Operating instructions
The model number of this product may be found on the back of the unit,
and the serial number on the bottom of the unit.
Please note the model and serial numbers of this unit in the space
provided and retain this booklet as a permanent record of your
purchase to aid identification in the event of theft.
MODEL NUMBER SL-Q300
SERIAL NUMBER
Before operating this products, please read these instructions
completely.
Page 2
Thank you for choosing the SL-QSOO.
For optimum performance and safety. please read these instructions carefully.
Parts identification
45-rpm adaptor
Record size sensor
Center spindle
Turntable mat
Turntable platter
Turntable base
Hinge
Stylus-pressure
adjustment knob
Arm clamp
Arm rest
Tonearm
Cartridge
Speed selector
Strobe-illuminator/pilot lamp
CAUTION
RISK OF ELECTRIC SHOCK
[10 NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK. DO NOT
REMOVE SCREWS.
NO USER-SERVICEABLE
PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Start/stop switch
Cueing control
Repeat switch
The lightning flash with arrowhead symbol.
within an equilateral triangle. is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance.
WARNING: To reduce the risk of fire or electric shock,
do not expose this appliance to rain or moisture.
-2...
Page 8
Panasonic Tokyo National Panasonic Gmbl-i
Matsushita Electric Industrial 00., Ltd. Hagenauer StraBe 43
1-2 1-Chome Shiba-koen Minato-ku Tokyo 105, Japan 6200 Wiesbaden/Biebrich
. F. R. Germany
SFNUQ63PO1
Printed in Japan F0483W0
