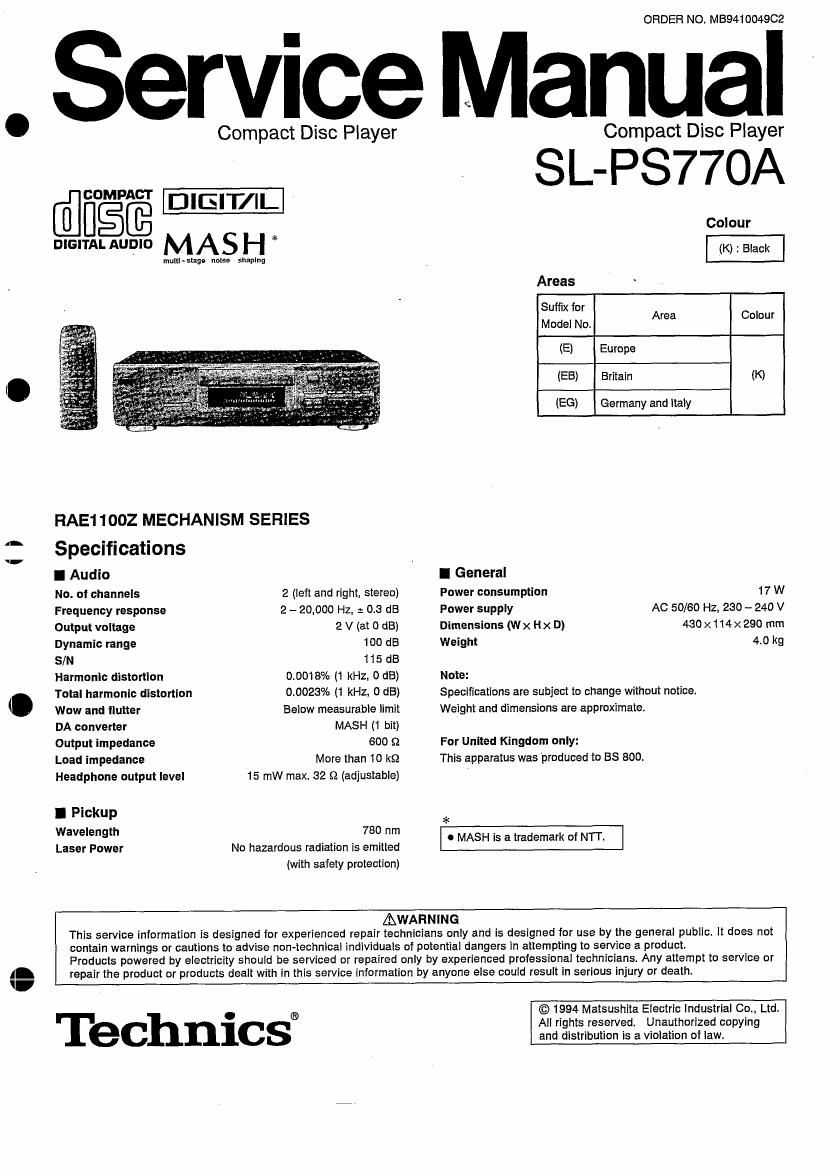

Technics SLPS 770 A Service Manual

Page 1

-

ORDEFI NO. MB941004902

Service Manual

Compact Disc Player

@figfi DlGIT/IL

MASH"

multI-sllge nolse shaping

DIGITAL AUDIO

RAE11OOZ MECHANISM SERIES

Specifications

I Audio
No. of channels
Frequency response

2 (left and right, stereo)
2 - 20,000 Hz. 2 0.3 dB

Output voltage 2 V (at 0 d8)
Dynamic range 100 dB
S/N 115 dB

Harmonlc distortlon 0.0018% (1 kHz. 0 dB)

Total harmonic distortion
Wow and flutter

DA converter

Output impedanCe

Load impedance
Headphone output level

I Pickup
Wavelength
Laser Power

0,0023% (1 kHz. 0 dB)
Below measurable limit
MASH (1 bit)

600 9

More than 10 kg

15 mW max. 32 E2 (adjustable)

780 nm

No hazardous radiation is emitted

(with safety protection)

Compact Disc Player

SL-PS77OA

Colour
(K) : Black
Areas
Suffix for Area C I ur
Model No. 0 D
(E) Europe
(EB) Britain (K)
(EG) Germany and Italy
I General
Power consumption 17 W
Power supply AC 50/60 Hz) 230 - 240 V
Dimensions (W x H x D) 430 x114 x 290 mm
Weight 4.0 kg
Note:

Specifications are subject to change without notice.
Weight and dimensions are approximate.

For Unlted Kingdom only:
This apparatus was produced to ES 800.

*
c MASH is a trademark of NTT.

AWAHNING

This service information is designed for experienced repair technicians only and Is designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers In attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with In this service information by anyone else could result In serious Injury or death.

Technics®

© 1994 Matsushita Electric Industrial Co.. Ltd.
All rights reserved. Unauthorized copying
and distribution is a violation of law.
