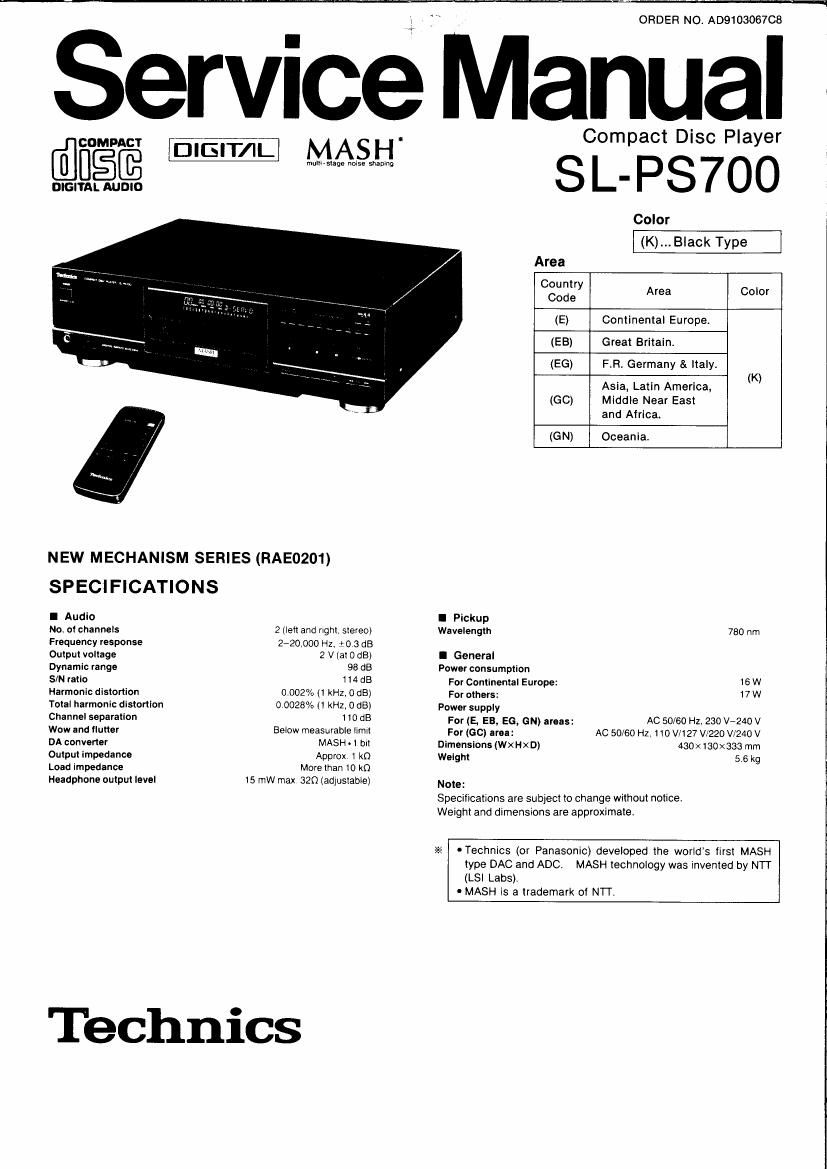

Technics SLPS 700 Service Manual

Page 1

ORDER NO. A09103067CB

Service Manual

COM PACT

DIGITAL AUDIO

ifiiEIT/IL

NEW MECHANISM SERIES (RAE0201)

SPECIFICATIONS

I Audio

No. 01 channels
Frequency response
Output voltage
Dynamic range

SIN ratio

Harmonic distortion
Total harmonic distortion
Channel separation
Wow and "utter

DA converter

Output impedance
Load impedance
Headphone output level

2 (left and right. stereo)
2-20.000 HZ. ! 0 3 d8
2 v (at 0 dB)

98 dB

114 dB

0.002%(1 kHz,0dB)
O 0028%I1kH2,0dB)
1 10 03

Below measurable limit
MASHa l but

Approx. 1 m

More than 10 k0

15 mW max 320 (adjustable)

Technics

MASH

mulli- stage noise shaping

Compact Disc Player

SI.- P8700

Color
(K) lack Type
Area
Country
Code Area Color
(E) Continental Europe.

(EB) Great Britain.
(EG) FR Germany & italy.

. . . (K)
Asra, Latln America,
(GC) Middle Near East
and Africa.
(GN) Oceania
I Pickup
Wavelength 780 nm
I General
Power consumption
For continental Europe: 15 W
For others: 17 W
Power supply
For (E, EE, EG, GN) areas: AC 50/60 Hz. 230 V-ZAD V
For (GC) area: AC 50/60 Hz. 110 V/l27 V220 W240 V
Dimensions (WXHXD) 430x130x333 mm
Welght 5.6 kg
Note:

Specifications are subject to change without notice.
Weight and dimensions are approximate.

X OTechnics (or Panasonic) developed the world's first MASH
type DAC and ADC. MASH technology was invented by MW
(LSI Labs).

- MASH is a trademark of NT).

Page 2

SL-PS700

ICONTENTS

BEFORE TRANSPORTING THE UNIT
ACCESSORIES ...........................
PRECAUTION OF LASER DIODE.
PLACEMENT...
CONNECTIONS.
LOCATION OF CONTROLS
HANDLING PRECAUTIONS FOR OPTICAL PICKUP.
INSTRUCTIONS FOR TRAVERSE OIL
DISASSEMBLY INSTRUCTIONS.........
MEASUREMENTS AND ADJUSTMENTS
TERMINAL FUNCTION OF ICS
DIGITAL SERVO SYSTEM ......
TROUBLESHOOTING GUIDE

I BEFORE TRANSPORTING THE UNIT

To safeguard against damage in transit. be sure to secure the
optical plckup by following the procedure below.

INTERNAL CONNECTION OF FL
BLOCK DIAGRAM ........................
TERMINAL GUIDE OF ICS,
TRANSISTORS AND DIODES
SCHEMATIC DIAGRAM .....
PRINTED CIRCUIT BOARDS
WIRING CONNECTION DIAGRAM
REPLACEMENT PARTS LIST
PACKING ...............
EXPLODED VIEWS
REPLACEMENT PARTS LIST ..
RESISTORS ll CAPACITORS...

OCheck that this hole can be seen in its entlrety.

1 Remove the compact disc inside, and set the
power switch to STANDBY (D with the disc
holder still open.
2 Slowly push in the disc holder by hand.
000 not tilt the unit while dclng this.
Olf the disc holder is not pushed in slowly, the optical pick-up
may not be secured properly.
3 Check that the optical pick-up is secured.
(Refer to the figure on the right.)
I ACCESSORIES
'AC power SUPP'Y ~Stereo connection
cord .................... 1 PC- cable ...............
(SFDACOSEOS) . . . . (E, E6) (SJP2249»3)
(SJA1Q3) ......... (EB)
(RJAOOO4) .

(SJA173)...,,....(GN)

'Batteries ...........
(UM-4NEI2S)

..... 2 pcs.

ORemote control
transmitter ............. 1 DC-

(RAK-SLSOAW)

,...1pc.

0Power plug adaptor. . , , . . . 1 pc.
(SJP9215) ............ (GC)

tee
