Technics SLPG 360A Service Manual

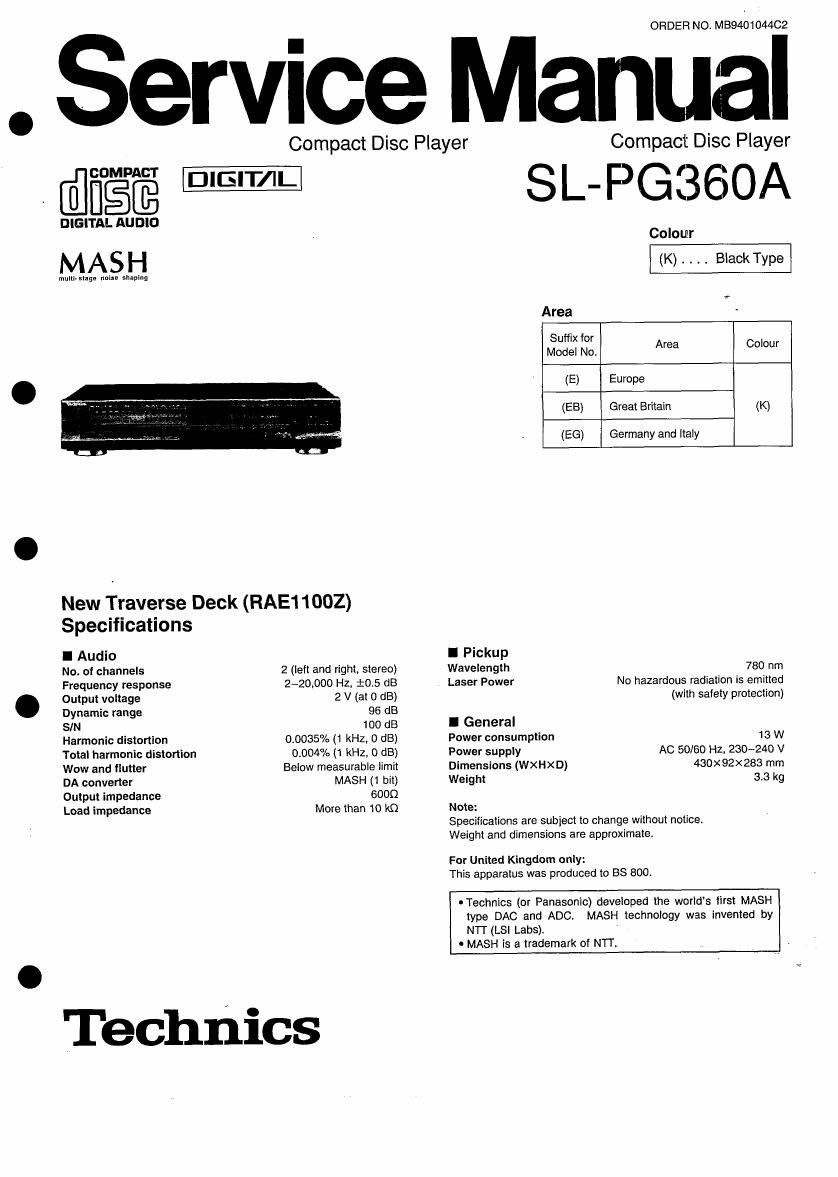

Page 1

ORDER NO. MB940104402

. Service Manual

Compact Disc Player

DIGITAL AUDIO

MASH

mum. stage not shaping

New Traverse Deck (RAE1 1 002)

Specifications

I Audio

No. of channels
Frequency response
Output voltage
Dynamic range

SIN

Harmonic distortion
Total harmonic distortion
Wow and flutter

DA converter
Output impedance
Load impedance

2 (left and right, stereo)
2-20,DOO HZ. :05 dB
2 V (at 0 dB)

96 dB

100 dB

0,0035% (1 kHz. 0 dB)
0.004% (1 kHz, 0 dB)
Below measurable limit
MASH (1 hit)

6000

More than 10 kt)

Technics

Compact Disc Player

SL-PG360A

Colour
(K) . . . . Black Type

Area
Suffix for
Model No. Area Colour
(E) Europe
(EB) Great Britain (K)
(EG) Germany and Italy

I Pickup

Wavelength 780 nm

Laser Power No hazardous radiation is emitted
(with safety protection)

I General

Power consumption 13 W
Power supply AC 50/60 Hz, 230-240 V
Dimensions (WXHXD) 430x92x283 mm
Weight 3.3 kg

Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate,

For United Kingdom only:
This apparatus was produced to BS 800.

-Technios (or Panasonic) developed the worlds first MASH
type DAC and ADC. MASH technology was invented by
MT (LS! Labs). '

- MASH is a trademark of NW.

Page 2

SL-PGSGOA

lContents

eHandling Precautions for Traverse Deck
OPrecaution of Laser Diode .
IAccessories ..
IConnections
eCaution for AC
OLccation of Controls ..........
oBasic Operating Procedure
IDisassembly Instructions
elnstaliing Disc Tray .....
oHow to Check the Main P.C.B
OHow to Check the Servo P.C.B.
oBlock Diagram

oSchematic Diagram .....
oPrinted Circuit Board Diagram
IVWring Connection Diagram...
oDisplay Function of .

Automatically~Adjusted Results .
IDigital Servo System
eTroubleshooting Guid
oFunctions of IC Terminals
oFlepiacement Parts List
oCabinet Parts Location
OLcading Unit Parts Location
oPackaging

lHandling Precautions for Traverse Deck

The laser diode tn the traverse deck (optical plckup) may break down due to potential diiierence caused by static electricity oi clothes or
human body. L

30. be carelui of electrostatic breakdown during repair at the traverse deck (optical plckup).

OHandllng oi traverse deck (optical plckup)

1. Do not sublect the traverse deck (optical pickup) to static
electricity as it is extremely sensitive to electrical shock.

2. To prevent the breakdoWn oi the laser diode, an antistatic
shorting pin ls inserted into the flexible board (FPC board).
When removing or connecting the short pin, Iinish the job in as
short time as possible.

3. Take care not to apply excessive stress to the flexible board (FPC
board). '

4. Do not turn the variable resistor (laser power adjustment). it has
already been adjusted.

OGroundlng for electrostatic breakdown

prevention
1. Human body grounmng
Use the anti-static wrist strap to discharge the static electricity
irom your body.
2. Work table grounding
Put a conductive material (sheet) or sleeisheet on the area where
the traverse deck (optical pickup) is placed, and ground the sheet.
Caution:
The static electricity olyour clothes will not be grounded through the
wrist strap. So, take care not to let your clothes touch the traverse
deck (optical pickup).

FPC
Lens (Do not touch) (Handle it careiully) / \ .

Be sure to short this portion
(Use the shorting pin or clip)

. , if.".'2§2°.f£;';'.l;$°'" .
lPrecautlon of Laser Diode

CAUTION: This product utilizes a laser diode with the unit turned "on"I invisible laser radiation is emitted irom the pick up tens.
Wave length: 780 nm
Maximum output radiation power from pick up: 100 uWNDE

Laser radiation trom the pick up unit is solely level. but be sure the iollowings:

1. Do not disassemble the optical pick up unltI since radiation irom exposed laser diode is dangerous.
2. Do not adjust the variable resistor on the pickup unit. It was already adjusted.

3. Do not took at the focus lens using optical instruments.

4. Recommend not to lock at pick up lens tor a long time.

ACHTUNG: Dieses produkl enlhttlt eine laserdiode. lrn eingeschelteien zustand wird unsichtbare laserstrahlung von der laserelnheit abgestrahit.

Wetlenlttnge: 780 nm
Maximate strahlungsteistung der Iaserinhelt: 100 pWNDE

Dle strahtung an der Iasereinheit lst ungeiahrilch. wenn iolgende punkte beachtet warden: .

. Die lasereinheit nicht zertegen. da die strahiung an der trelgetegten Ieserdiode geiahriich Ist.
. Den werksseitig justierten einsteilregier der lesereinreit nicht versielien.

. Nicht mit optisohen lnstrumenten in die iokusslertinse hllcken.

. Nicht fiber litngere zeit in die tokussierlinse bilcken.

fiuM

-2-
