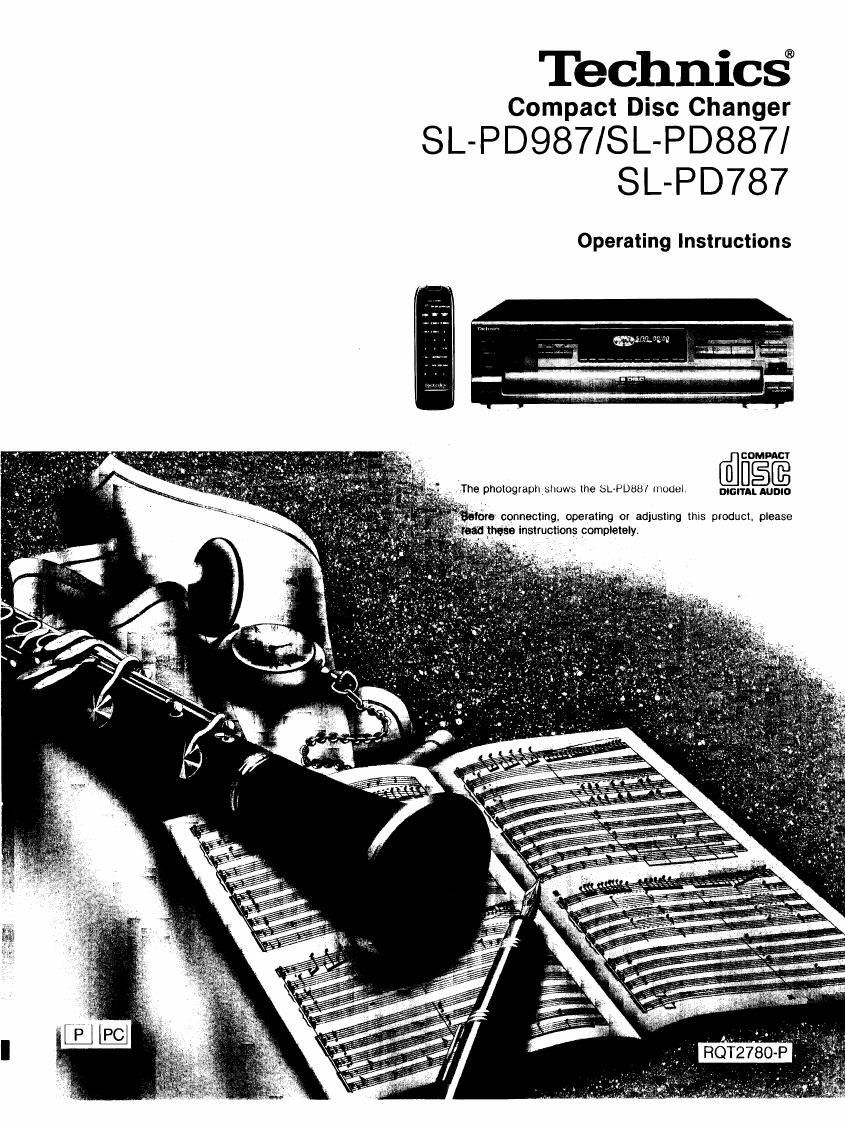

Page 1
Dear Customer Thank you for purchasing this Technics product. For optimum performance and safety, please read these instructions carefully. These operating instructions are applicable to the SL-PD987, SL- PD887 and SL-PD787 models. These operating instructions, however, fundamentally explain the operation of SL-PD987 model. The model number and serial number of this product can be found on either the back or the bottom of the unit.Please note them in the space provided below and retain them for future reference. MODEL NUMBER SERIAL NUMBER Before use Precautions ........................................ 4 Front panel controls .............................. 5 Connections ....................................... 6 Operations Basic operations .................................. 7 Sequential play ........................................ 7 To directly access a desired track...................... 8 To exchange discs during play .......................... 8 To temporarily stopplay............................... 8 To stop play.......................................... 8 Program play ....................................... 9 Using the remote controltransmitter i--i_ "JDI_;irJ$.l m"JD]:t:tl'm,],n L,. ............................ 10 Random play ....................................... 10 One disc random play ................................. 10 Full random play ...................................... 10 Delete play ......................................... 11 Using the remote controltransmitter Ik'lmllU I]t};Vi_.i_ rJii;i;ir--'01 'nLI ............................ 12 Spiral play .......................................... 12 ID scan function ................................... 13 Search function ................................... 13 Skip function ....................................... 14 To skip discs .......................................... 14 To skip tracks ......................................... 14 Repeat function ................................... 15 Time mode selection ............................. 15 Edit guide function ............................... 16 Pitch control function _............17 Auto cue function _................. 18 Reference Concerning compact discs ......................18 Troubleshooting guide ...........................19 Product service.................................. 19 Cautions concerning the moving of this unit ............................. Back cover Technical specifications .............Back cover
Page 2
-THIS PHRASE ISAPPLIED ONLYFORU.S.A.: This device complies with Part t 5 of theFCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and(2) this device must ac- cept anyinterference received,including interference that may cause undesired operation. CAUTION: This equipment has been tested and found to comply withthe limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentialin- stallation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accor- dance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmful interference to radio or televi- sion reception, whichcan be determined by turning the equip- ment off and on, the user is encouraged to try to correct the in- terference by oneof the following measures: - Reorient orrelocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiveris connected. - Consult the dealer or an experienced radio/TV technician for help. Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device. CAUTION! THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTSINSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol,within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral tri- angle is intended to alert the user to the presence of important operating andmaintenance (ser- vicing) instructions in the literature accompanying the appliance.
Page 13
To
sldp discs
Use this function to skip discs when selecting a disc to which you
wish to listen, and when loading and unloading the discs. To
skip tracks
Use this function to skip tracks when selecting a track to which
you wish to listen.
I I DISC
SKIP
I'_1 SKIP_1,,4
L ________J
....... I_ 6656;5Z' ---
You can use this function in stop,sequential play, one disc ran-
dom play and delete play modes.
DISC SKIP
% Press DISC SKIP to rotate the disc
tray.
IZ'_tIt t I_l LI -I..I I_l
Disc number at the playing position ,.,.,
SKSP "_ Press either SKIP (l_.d or I_I_!) un-
[ [ I til you reach the desired track.
I_,:You can skip backward.
I_1_" You can skip forward.
i ', L/ _,,_':,,(,-').-,'_.
-I -In./_/
c /,.,. ,_, ,
- S_C
Track number at the playing position
In stop mode:
When the loading drawer is closed, pressing DISC SKIP changes
the disc tray to the next one.
When the loading drawer is open, pressing DISC SKIP moves the
carousel by two disc trays.
In play mode:
When the loading drawer is closed, pressing DISC SKIPchanges
the disc and the changer plays the track on the next disc.
If a disc is not on the selected disc tray, the changer plays the
disc at the next number.
When the loading drawer is open, pressing DISC SKIP moves the
carousel by one disc tray. Pressing again moves the carousel in
the opposite direction so that you can change all discs exceptthe
one being played. In sequentiallprogramldelete play mode:
In sequential play mode, you can
skip only withinthe current disc.
In program play mode,you can skip fromone track to another in
the programmed sequence.
In delete play mode, you can skip tracks only within the current
disc excluding the tracks to be deleted.
