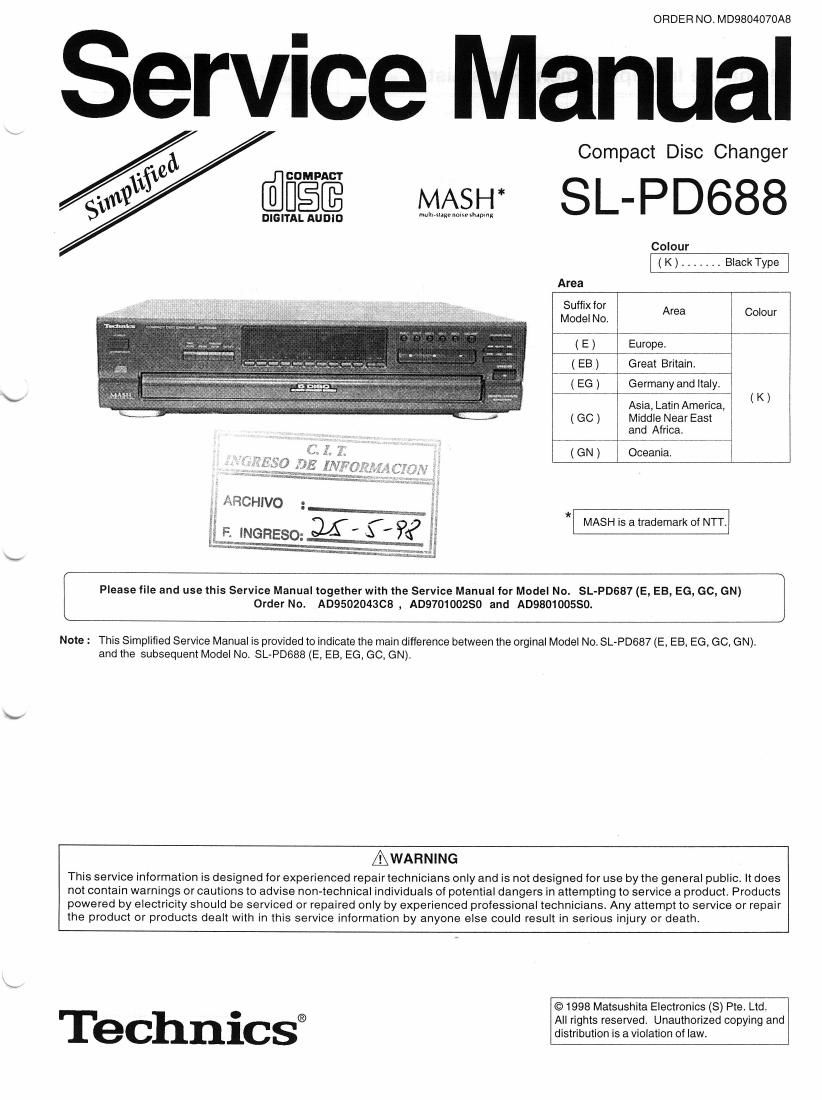

Technics SLPD 688 Service Manual

Page 1

ORDER NO. MDSBO4070A8

Service Manual

@DEE" MASH*

DIGITAL AUDIO "will clagflnatseslurmg

Compact Disc Changer

SL-PD688

Colour
Area
Suffix for
Model No. Area Colour
( E ) Europe

(EB) 7 Great BrItaIn
( EG ) Germany and iltaly.

I Asia, Latin America,
(GC ) ' Middle Near East
and Africa.

( GN ) Oceania.

MASH is a trademark of NTT.

Please file and use this Service Manual together with the Service Manual for Model No. SL-PD687 (E, EB, EG, GC, GN)
Order No. AD9502043C8 , AD9701002SO and ADQBO100550.

Note:
and the subsequent Model No. SL-PDBSB (E, EB, EG, GC, GN).

This Simplified Service Manual is provided to indicate the main difference between the orginal Model No. SL-P0687 (E, EB, EG GO, GN).

AWARNING

This service information is designed for experienced repairtechnicians only and is not designed for use by the general public It does
not contain warnings oroautions to advise non-technical individuals of potential dangers in attempting to service a product. Products

powered by electricity should be serviced or repaired only by experienced professional technicians Any attempt to service or repair
the product or products dealt with in this service information by anyone else could result in serious injury or death.

Technics®

©1998 Matsushila Electronics (8) Pte. Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

S D688

IChange In Replacement Parts List

Notes : ' Mentioned in this parts list is the complete replacement parts list for Model No. SL-PD688 (E,EB,EG,GC,GN) with relerence to
model no. SL»PD687 (E,EB,EG,GC.GN).
' Important salety notice:
Components identilied by Amark have special characteristics important for safety.
Furthermore, special parts which have purposes of lire-retardant (resistors), high-quality sound (capacitors), low noise (resistors), etc are used.
When replacing any of these components, be sure to use only manulacturers specilied parts shown in the parts list .
[M] Indicates in the Remarks columns indicates parts supplied by MESA.
* Warning : This product uses a laser diode. Refer to caution statements on page 2
ACHTUNG : 0 Die lasereinheit nicht zerlegen.
- Die lasereinheit darf nur gegen eine vom hersteller spezilizierte einheit ausgetauscht werden.
Rel No. Fan No. Part Name & Description Remarks Rel No. Part No. Fan Name 8. Description Remarks
CABINETANDCHASSIS 31 RMR0765-W1 TRANSFORMER BASE [M]
32 RHM2452A MAGNET [M]
1 RKM0339-K1 TOP CABINET [M] 33 RMR0334 FlXED PLATE [M]
2 SNE2129-3 SCREW [M] 34 RMR0744-W CLAMP PLATE [M]
3 XTBSS+8JFZ1 SCREW [M] 35 RMR0624-W CLAMPER [M]
4 RDG0267 TRAY REDUCTION GEAR [M] 36 RMN0185 FL HOLDER [M]
5 RDGOZSB LOCK GEAR [M] 37 RFKGLPDSBBGC FRONT PANEL ASSV [M]
6 RDG0269-3 OPEN/CLOSE GEAR [M] 37-1 RGK061 IA-K FRONT ORNAMENT PLATE [M]
7 RDV0031 BELT [M] 38 RGU1016-K MAIN BUTTON [M]
s RFKPLPD667PA TRAY MOTOR ASS'Y [M] 39 RGU1019-K 10-KEY BUTTON [M]
9 RMN0254 LED HOLDER [M] 40 RGU1015-K POWER BUTTON [M]
10 RMN0255 SENSOR HOLDER [M] 41 RGU1017-K1J SUB-BUTTON [M]
11 RMN0263 MOTOR HOLDER [M] 42 RMGozoo SHUTTER RUBBER [M]
12 RE20648 14F FFC [M] 43 XTBSZG+8J SCREW [M]
13 RFKNLPDIOOOE TRAY ASSY [M] 44 XTBS+10JFZ SCREW [M]
13-1 RMF0182 TRAV FELT [M] 45 XTB3+20J SCREW [M]
13-2 RMGozoo SHUTTER RUBBER [M] 46 XTB3+8JFZ SCREW [M]
13-3 RMR054sw ROLLER [M]
14 RGT0019 ROTARY TRAY [M] CASSETTEDECK
15 RHW81001-1 WASHER [M]
16 RMBoacs TRAY SPRING [M] 101 RD60270 SPEED REDUCTION GEAR [M]
17 RME0152-3 LOCK GEAR SPRING [M] 102 RDGOZ71 DRIVE GEAR A [M]
15 RMSO123-1 FIXED PIN B [M] 103 RDG0272 DRIVE GEAR B [M]
19 XTBS+10G SCREW [M] 104 RDK0025 DRIVE CAM [M]
20 XTWSEHOT SCREW [M] 105 RDPooso PULLEY GEAR [M]
21 XWE3D13 WASHER [M] 106 RFKPLPD667PB LOADING MOTOR ASSV [M]
23 REE0635 23P FFC [M] 106-1 RDP0054 MOTOR PULLEV [M]
24 REEosss-1 FFC WIRE [M] 106-2 RRDoozz MOTOR [M]
25 REE0637-1 FFC WIRE [M] 107 RHD26019 SCREW [M]
26 RGR0246A-W REAR PANEL [M] E 108 RMGOZGB-K BELT [M]
26 RGRo246A-x REAR PANEL [M] EB,EG 109 RML0334 CHANGE LEVER [M]
26 RGR0246A-Y REAR PANEL [M] GN 110 RMM0117 SLIDE PLATE 1 [M]
26 RGRUzAsB-O REAR PANEL [M] 60 111 RMM0118 SLIDE PLATE 2 [M]
27 RFKJLPDSSBPK BOTTOM CHASSIS ASS'V [M] 112 RMR0746-W STRENGTHENING PLATE [M]
28 RMRo749-W CABLE HOLDER [M] 113 RFKNLP0667PB MECHANISM BASE ASSY [M]
29 RMR0742-K BASE GUIDE (L) [M] 113-1 RMR0747-w MECHA EASE [M]
30 RMR0743-K BASE GUIDE (R) [M] 113-2 RMSOSSS PULLEV SHAFT [M]
