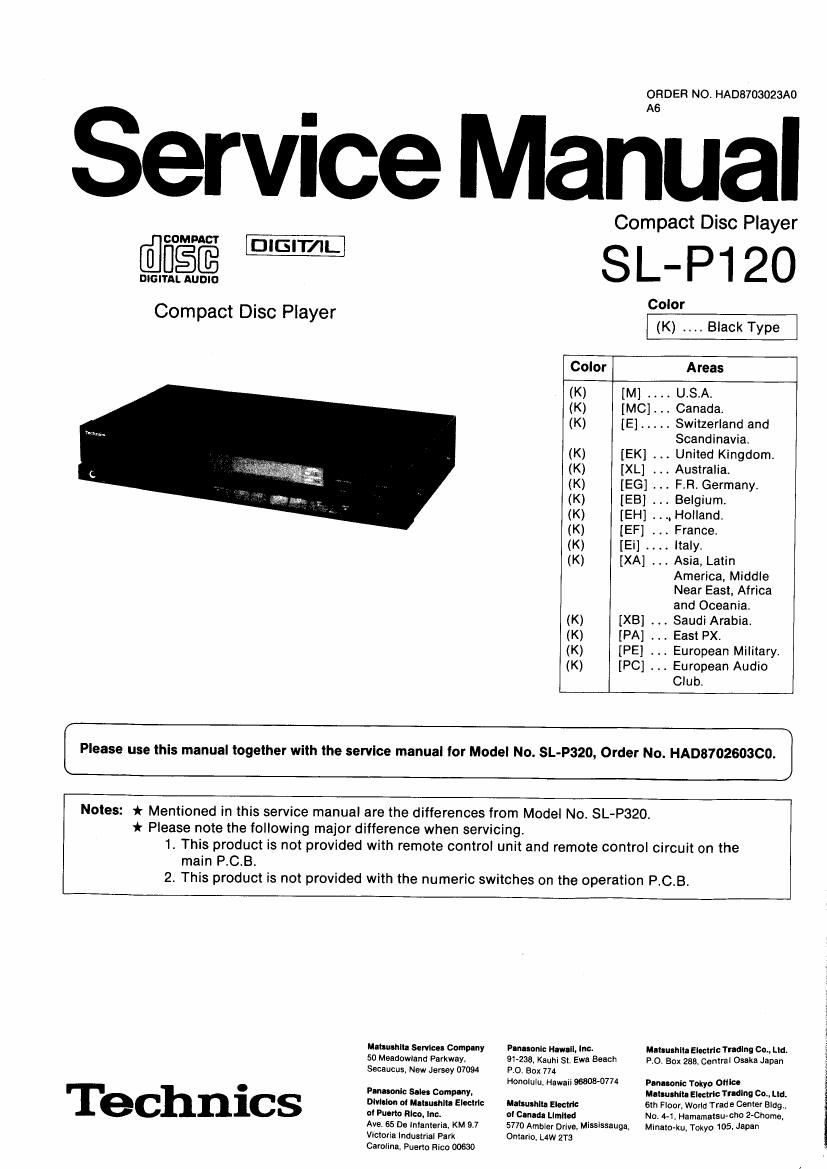

Page 1
ORDER NO. HADB703023A0
A6
Service Manual
Compact Disc Player
LfiJfiETE SL-P120
DIGITAL Auolo
Color
(K) Black Type
Compact Disc Player
Color Areas
(K) [M] U.S,A.
(K) [MC]... Canada.
(K) [E] ..... Switzerland and
Scandinavia.
(K) [EK] United Kingdom.
(K) [XL] Australia.
(K) [EG] F.R. Germany.
(K) [EB] Belgium.
(K) [EH] H.) Holland.
(K) [EF] France.
(K) [Ei] .. .. Italy.
(K) [XA] Asia, Latin
America, Middle
Near East. Africa
and Oceania.
(K) [X8] SaudiArabia.
(K) [PA] East PX.
(K) [PE] European Military.
(K) [PC] European Audio
Club.
\
Please use this manual together with the service manual for Model No, SL-P32o, Order No. HAD8702603C0.
k 2
Notes: 1: Mentioned in this service manual are the differences from Model No. SL-P320.
* Please note the following major difference when servicing.
1. This product is not provided with remote control unit and remote control circuit on the
main P.C.B.
2. This product is not provided with the numeric switches on the operation P.C.B.
M Servlcec C 1 Panasonic , Inc. " Elmrlc lndlng Co., Ltd
50 Meadowlana Parkway, 91-235, Kaul'li St. Ewa Beach Po. Box 253. Central Osaka Japan
Sacaucus, New Jersey 07094 PD, Box 774
Honolulu. Hawaii 96608-0774 Plnmnic Tokyo OM"
O vanuonlc sales Complny, Makuthlla slum: 1mm Con Ltd.
nlCS olmlnn oi mumm Electric u-uumln Eloclrl: em Floor, World Trad 2 Center Bldg,
ol Punto alco, Inc. or Canaan lelud No. 4-1. Hamamatsuacho 2-Chome.
Ave. 55 D. lntanteria, KM 9.7 5770 Ambler olive. Mississauga. Minute-kn, Tokyo 105- J3Fm"
Victoria Industrial Park Ontario, L4W 2T3
Carolina. Puerto Rico 00630
