Technics SLP 100 Owners Manual

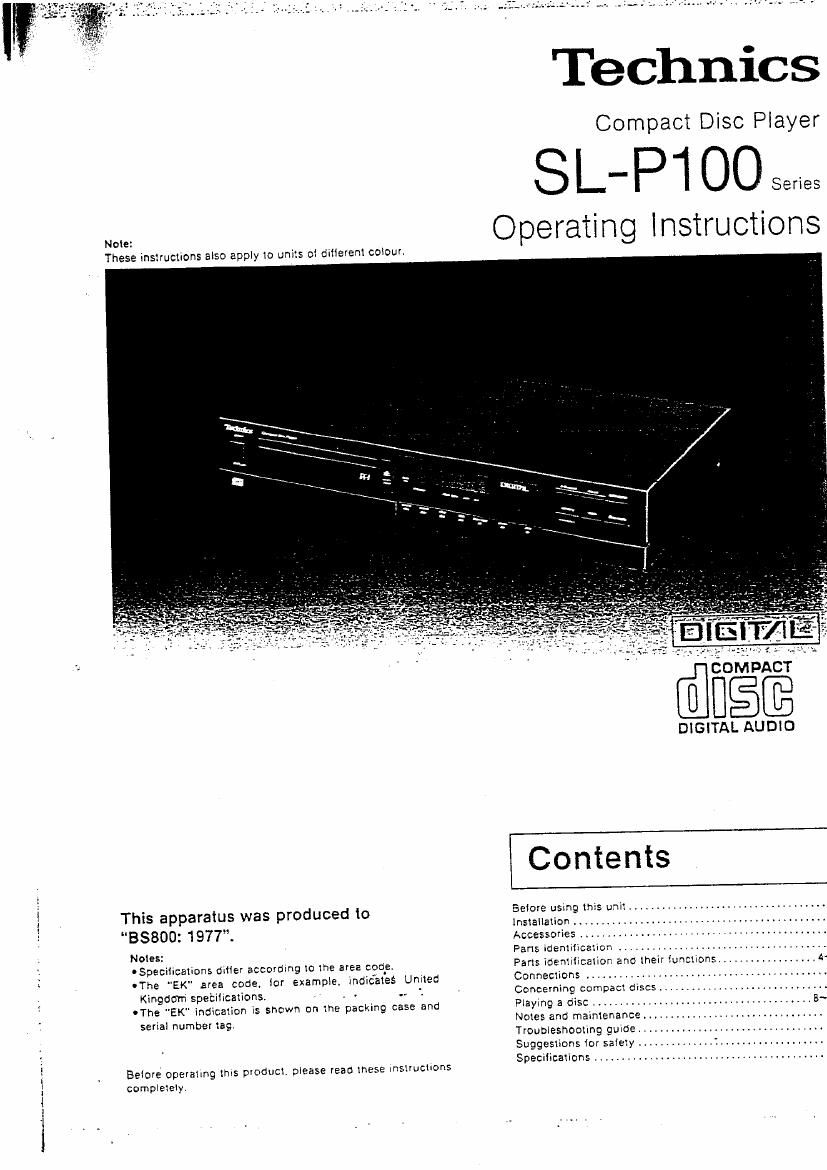

Page 1

Note:

These instructions also apply to units at ditterent colour,

This apparatus was produced to
"88800: 1977".

Notes:

'Speciiicaiions outer according to the area code.

~The "EK" area code. ior example, indicates United
Kingdom specifications. - . ., .

'The "EK" indication is shown on the packing case and
serial number tagr

Belore operating this product please read these insivuctions
completely.

Technics

Compact Disc Player

SL-Pi OO

Operating instructions

tiiidgfi

DIGITAL AUDIO

Contents

Beiore using this unit ..........................
installation . ..
Accessories
Parts identification . .i..
Parts identification and their iunctions.
Connections .....................
Concevning compact discs ..
Playing a disc ...........
Notes and maintenance.

Troubleshooting guide ,.
Suggestions tor saiety.
Speciiications ................

Page 2

.t....,~........ua___..-

(NOTE: l

Thank you for selecting the SL-PlOO series.
For optimum performance and safety, please read
these instructions carefully.

(Caution for sale use of this apparatus for UKW
standard model SL-PlOO. (EK" model only)

The EK" indication is shown on the name plate.

Caution:
Thisapparatus isdou:.e insulatedsalety earth not required.

important

The wires in this mains lead are coloured in accordance with
the lollowing code:

Blue: Neutral

Brown: Live

As the colours otthe wires in the mains lead olthis apparatus
may not correspond with the coloured markings identifying
the terminals in your plug, proceed as lollows.

The wire which is coloured ELUE must be connected to the
terminal which is marked with the letter N or coloured
BLACK. The wire which is coloured BROWN must be
connected to theterminal which is marked with the letterL or
Coleured RED.

This equipment should be disconnected trom the mains
when not in use.
L J

Before using this
unit

1. Place a soft cloth under the unit to protect it lrorn scratches,
2. Press the lock shatt on the bottom panel to the in position
(1.. 1:1.

Lock Shall

' Soft cloth

#

IF THE PLAYER IS TRANSPORTED AGAIN. PERFORM
THE FOLLOWING STEPS:

1) Remove the disc from the holder.

2) Press the lock shalt to the out position (.-_.l).
CAUTION:

Do not transport the player without looking the lock shall

tSevere damage will result.

Installation

as,

-1..

I This unit-Incorporates many sensitive optical

components. To enioy optimum performance at
all times, avoid usingthis unit under the
lollowing conditions.

~For reliable periormahce, be sure to place the unit on a flat
level surface. Notdoing so may cause the unit to malfunction.

0;. X.
Q

Horizontal

Iln a closed vehicle or other location where the temperature
could exceed 100F (40°C).

-For long periods oi lime in direct sunlight.

rln very cold places (below 40F: 5°C).

'ln very humid locationsi

-Near a heat outlet or heating appliance.

-|n dusty or smoky locations.

Uln locations prone to vibrations.

°On an unstable or uneven surface.

INear appliances generating strong magnetic Iields.

IWithin reach oi children.

Gin locations where the rear panel is lessthan 10cm iaooutd")
away from the wall or back of an audio rack.

I Do not place near a tuner or television.

This unit uses high trequency signals and can cause
interlerence with radio and television reception. ll this occurs.
move this unit larther away lrom the radio or television. or
change Irorn an interior to an exterior television antenna.

Accessories

Stereo connection cable ...............
Power (mains) cord ....................

Caution

This product utilizes a laser.

Use of controls or adjustments or performance
at procedures other than those specified herein
may result in hazardous radiation exposure.
