Technics SLL 2 Owners Manual

Page 1

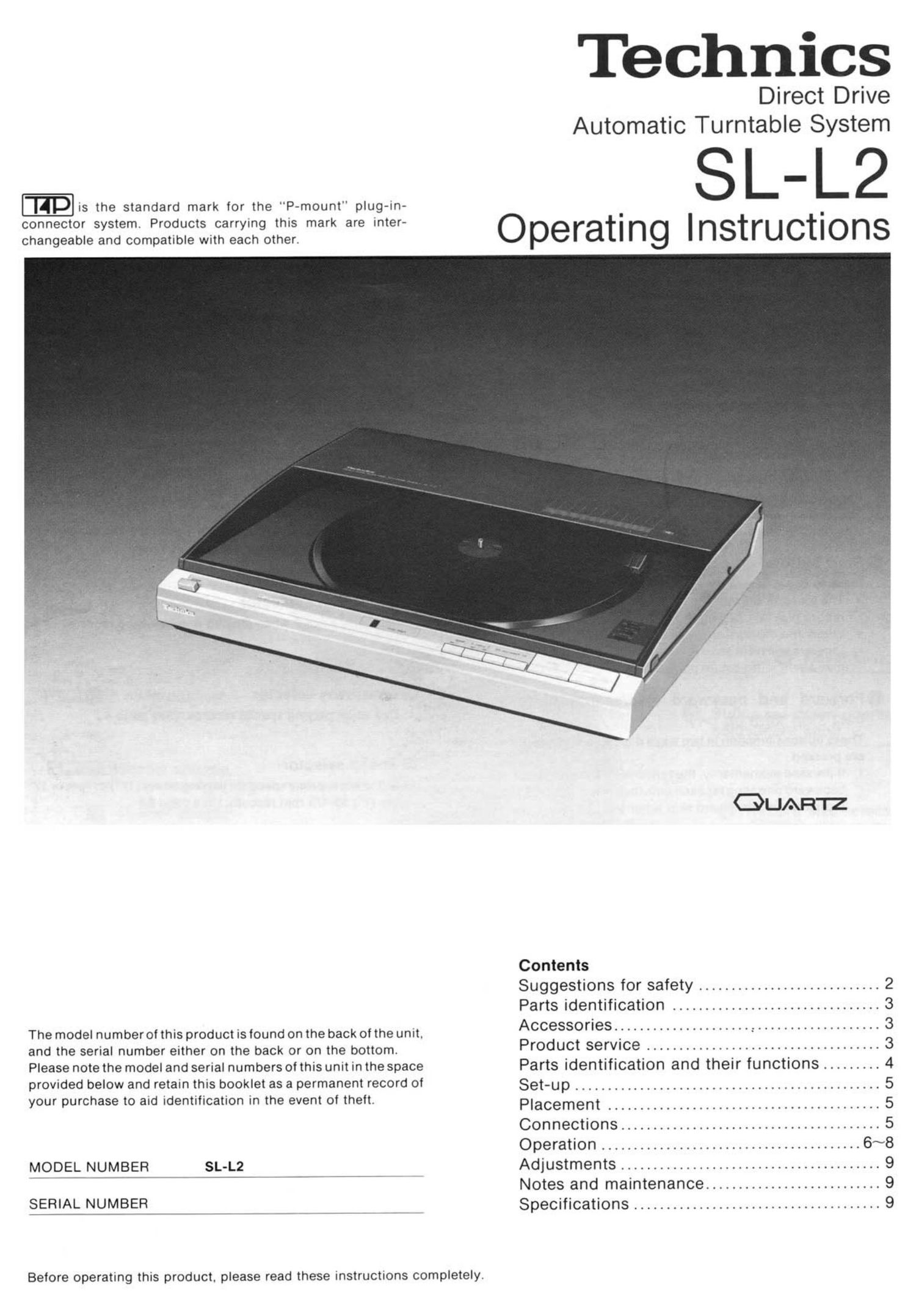

Technics

Direct Drive
Automatic Turntable System

SL-L2

'II'D is the standard mark for the P-mount" plug-in-

t t .P d ' In R 't - ' '
EESSSSaLSeSZSJEmpLLbiéiitiaéilc'flgoméf."3' '"e Operating Instructions

QUARTZ

Contents
Suggestions for safety ............................ 2
Parts identification ................................ 3
The modelnumberonhis productistound onme back ofme unit. Accessories ..................... .. ................... 3
and the serial number either on the back or on the bottom. Product service .................................... 3
Please notethe modeland serial numbers ofthis unit inthe space Parts identification and their functions ......... 4
provided below and retain this booklet as a permanent record of Set-up _______________________________________________ 5
V°' pmcmse 0 aid identification in the ever" 0' the Placement .......................................... 5
Connections ........................................ 5
Operation ........................................ 6~8
MODEL NUMBER SL-L2 Adjustments ........................................ 9
in, _ _ " Notes and maintenance ........................... 9
SERIAL NUMBER 7 Specifications ...................................... 9

Before operating this product. please read these instructions completely.

Page 2

Thank you for selecting the SL-L2.
For optimum performance, we recommend that
you read these instructions carefully.

Technics. The science of sound. Our name represents a multitude ofhigh
quality audio products. in every price range.

From the electronic wizardry of the Ultra-Slim Hi-Fi Component Systems
to our revolutionary Honeycomb Disc Speakers. Technics has grown to
become legendary among audio enthusiasts.

Technics is proud to be an industry innovator in the development of
digital equipment.

Audio fans can choosefrom a selection of Digital Compact Disc Players.
For those with discriminating taste. Technics offers a hi-tech digital
audio cassette recorder. And. our PCM processors can turn your video
cassette recorder into a high performance, dynamic stereo digital
recorder.

Plus. Technics pioneered the Honeycomb Disc Speaker-the ultimate
speaker for handling the demands of digital audio.

Our linear tracking and compact linear tracking turntables join the widely
acclaimed belt-drive. direct drive quartz-locked models. To add to the
illustrious high performance of the turntables. Technics engineers
created the Plug-In Cartridge. Eliminating the tediousness of
cartridge mounting, it has become an international cartridge mounting
system.

Technics engineering is a driving force in the effort to link audio with
video. A prime example is the Stereoplex receiver which delivers high
quality television sound in simulated stereo.

And. Computer Driven New Class A Circuitry. the world's first use of a
microcomputer to improve sound quality. in combination with most
Technics receivers aids in providing a truly unique and satisfying
listening experience.

Technics Cassette Decks, including the auto-reverse decks, provide
audiophiles with as many as three exceptional noise reduction systems-
Dolby B. Dolby C', and dbx".

The Technics list of high quality audio products continues. From multi-
band equalizers to tuners. pre-amps. microphones. and Honeycomb
Disc headphones. Technics is a shining example of audio technology at
its best. Technics is proud of the products it develops. At Technics, we
are constantly trying to improve the efficiency, handling ease. and
performance of all our products to make listening not only a pleasure, but
an experience for all our customers.

"'Dolby and the double-D symbol are a trademark of Dolby Laboratories
Licensing Corporation.

"dbx is a registered trademark of dbx, Inc.

Suggestions for safety

CAUTION
RISK OF ELECTRIC SHOCK
[10 NOT OPEN

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE SCREWS.
NO USER-SERVICEABLE
PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,
within an equilateral triangle. is intended to
alert the user to the presence of uninsulated
dangerous voltage" within the products
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance.

Before using this unit, be sure to read applicable items of the
operating instructions and these safety suggestions carefully;
afterwards keep them handy for future reference. Take special
care to follow the warnings indicated on the unit itself as well as
in the operating instructions.
1. Avoid places where there is water or humidity.
Do not use this unit near a bathtub,wash basin.swimming
pool, or the like. Damp basements should also be avoided.
2. Do not allow water or any foreign object to get inside this
unit.
Do not place small metal objects or anything containing
liquid on or near the unit.
3. Avoid placement of the unit where it will be exposed to the
direct rays of the sun, or where ventilation is inadequate.
Do not place this unit in a bookcase or between cabinets.
unless proper ventilation is provided, or where curtains or
furniture may obstruct the ventilation holes.
4. Place this unit away from heat-emitting appliances.
Never place this unit on or near a radiator, heat register,
stove. or any other heat-emitting equipment (including
amplifiers).
5. Placement
Place the unit on a stable, vibration-free, level shelf or stand.
6. Use of a cart or stand.
When deciding on a cart or stand. be sure to use only with the
cart or stand recommended by the manufacturer.
7. Wall or ceiling installation.
it the unit is to be mounted on a wall or ceiling, be sure to do
so only as recommended by the manufacturer.
8. Check the voltage rating of this unit before connecting the
unit to a power source.
Be sure to connect the unit only to the type of power source
indicated in the operating instructions. or as indicated on the
unit itself.
9. Care of the power cord and plug.
Take care that the cord is not bent sharply (especially near
its connection to the unit or near the plug). that nothing is
placed on it, and that it is not pinched or crushed or frayed.
Never take hold of the plug or cord if your hand is wet, and
always be sure to grasp the plug body when connecting or
disconnecting it.
10. If the unit will not be used for an extended period of time.
Be sure to disconnect the power cord from the wall outlet.
11. Maintenance
Refer to the operating instructions for details.
12. Never attempt repairs yourself:
(a) If the power cord or plug is damaged.
(b) If a foreign object has fallen or liquid has spilled into it.
(c) If the unit has been exposed to rain.
(d) If the unit does not function normally. or if operation
shows a distinct change in performance.
(e) If the unit has been dropped and the cabinet or chassis is
damaged.
Unplug the power cord and have it checked by a qualified
technician (or the dealer from whom the unit was purchased ,
or the nearest servicenter).
13. Repairs
Except for adjustments explained in the operating instruc-
tions. do not attempt any repairs yourself. Be sure to request
service from a qualified technician (or your dealer or nearest
servicenter).

WAR N I N G: To reduce the risk of fire or electric shock,
do not expose this appliance to rain or moisture.

-2-
