Technics SLJ 11 Owners Manual

Page 1

@is the standard mark for piug-in-connector type.
Products carrying this mark are interchangeable and adaptable
among each other.

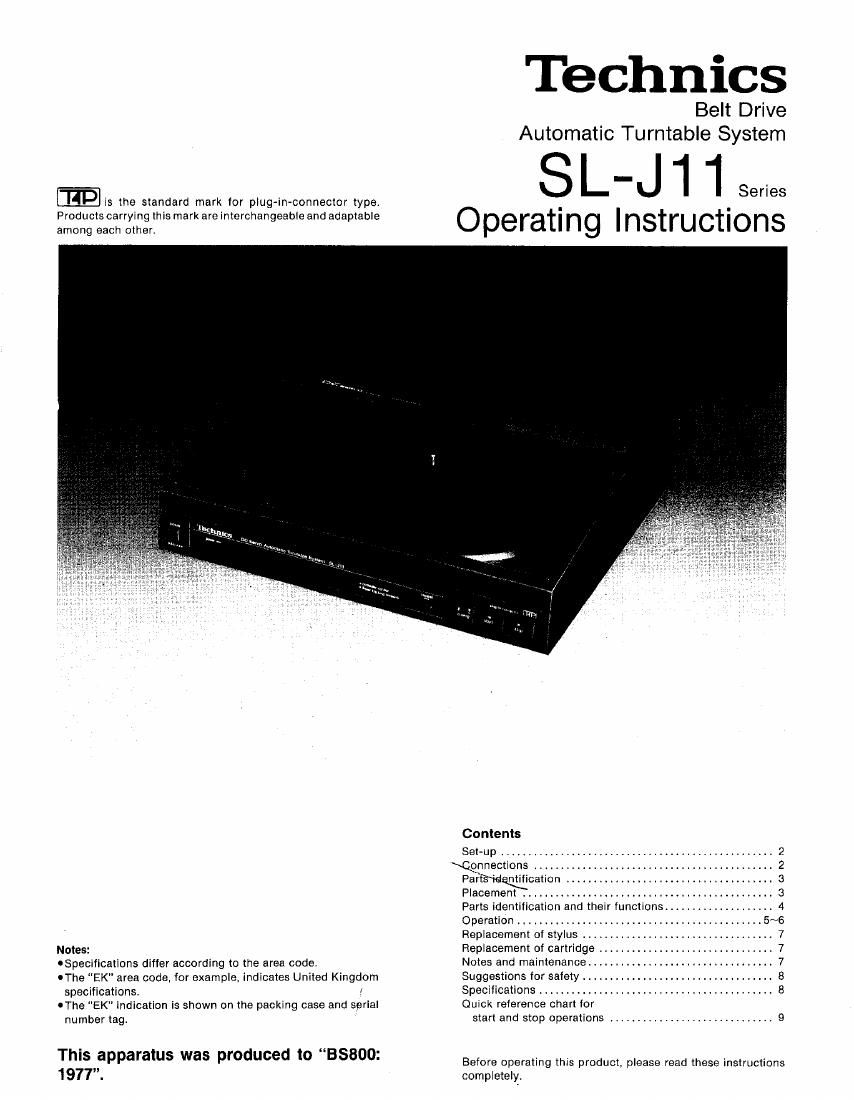

Technics

Belt Drive
Automatic Turntable System

SL-JI 1

Operating Instructions

Notes:

OSpeciflcallons differ according to the area code.

0The "EK" area code, for example, indicates United Kingdom
specifications. «

CThe EK indication is shown on the packing case and serial
number tag.

This apparatus was produced to BSBOO:
1977.

\annections ..,

Contents
Set-up ...................................

Palm ntificaiion t
Placement ............. . .
Parts identification and their functions .....
Operation ...............................
Replacement of stylus ..
Replacement of cartridge
Notes and maintenance.
Suggestions for safety .
Specifications ...........................................
Quick reference chart for

start and stop operations ..........................

Before operating this product, please read these instructions
completely.

Page 2

Parts identification and
their functions

0 Power (mains) switch
Power stand by U) , on switch
This switch turns on and olf the secondary circuit power
only.
The unit is in the stand by" condition when this switch is set
to the stand byt) " position. Regardless of the switch
setting. the primary circuit is always "live" as long as the
power (mains) cord is connected to an electrical outlet.

0 Record groove scale
A scale with 1 mm graduations that is usetul tor determining
the tonearm position.

0Tonearm

0 Cartridge

OStOp button
For stopping record play (reject) and outward search.
1. When you press the stop button (lor less than one
second), the lonearm automatically returns to the rest
pOSlthI'l (auto-return).

Q)
2. It you keep the button pressed (for more than one
secondlthe tonearm will moveoutward toward the edge
of the record (outward search).
7, a

3. It you press the cueing button to raise the lonearrn, and
then press the stop button intermittently. the tonearm will
move outward in approximately 1 mm steps

, }
'9 We l
(V\
BSIart button

For beginning record play (auto-start, auto-lead-ln) and

inward search.

1, When you press the start button (for less than one
second). the tonearm automatically moves to the
records lead-in groove and starts record play lento-start,

auto-lead-in).
\g

- If this button is pressed during play (for less than one
second), the tonearm will return to the rest position and
begin playing it over again.

2. It you keep the button pressed (for more than one
second), the tonearm moves inward toward thecentre of
the record (inward search).

3, It you pressthe cueing button to raise the tonearm. and
then pressthe startbutton intermittently thetonearm will
move inward in approximately 1 mm steps.

at
OCueing button

Press to raise OI lower 12 tonearm.

GRepeat button and repeat indicator
Press to activate the repeat play tunction (indicator
illuminates). Press again to cancel the repeat play function
(indicator goes out).

OUpper cabinet (dust cover)
(Contains tonearm drive mechanism.)
Must be closed during play.

0 Centre spindle

0Turntable mat
Do not use any turntable mat except the one supplied
size

30 17
._

@Record size selector -Il-l
Set to correct position according to record size (30 or
17 cm).
speed

as 45

@Speed selector fi_ '-
Set to correct speed according to record speed (33-1/3 or
45-rpm).

@Lower cabinet

@45-rpm adaptor
Use this adaptor when playing a 45-rpm record wlth a large
centre hole.
Thisadaptor is held down bythe weightol LP records. When
playing thin. llexible records, such as those included in
magazines, lock this adaptor down by gently pressing
downward and rotating it clockwise.

@Turntable platter
