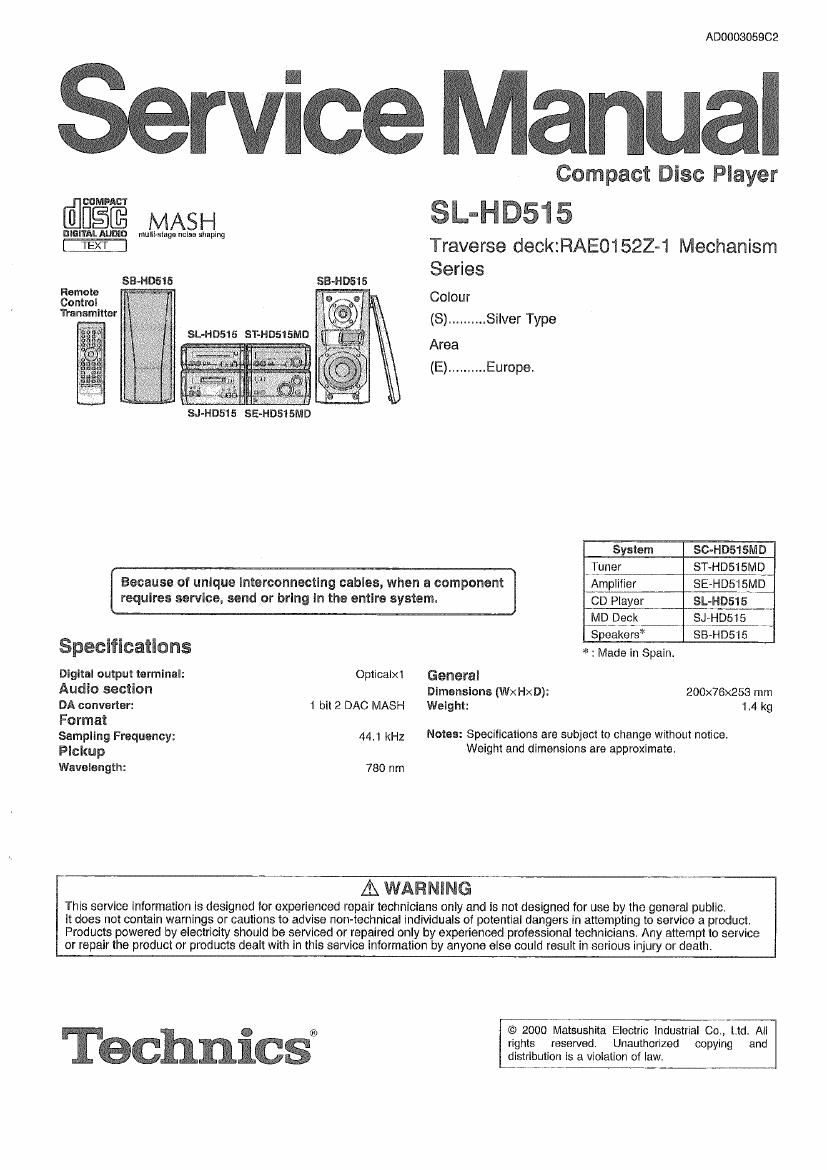

Technics SLHD 515 Service Manual

Page 1

iflfigfi MASH

DIII'I'AL AUDI

mum-silage nuisa shaping
i EXT

SB-HDEtS

Remote
Control
Transmitter

I
3J-HD515 SE-HDST 5M0

AD0003059C2

Compact Disc Player

SL-HDME

Traverse deckzFiAE0152Z-1 Mechanism
Series

Colour

(8). .Silver Type
Area

(E) .......... Europe.

System SC-HD515MD
Tuner ST-HD515MD
Because of unique interconnecting cables, when a component Ampliiier SE-HD515MD
requires service, send or bring in the entire system. 730 P[ayer SL~HD515
MD Deck SJ-HD515
.. . Speakers SB-HD515
Specifications * . Made in Spam
Dlgltnl output terminal: Opticalxt General
Audio section Dimensions (WXHXD): 200x76><253 mm
DA converter: 1 bit 2 DAC MASH Weight: 1.4 kg
Format
Sampling Frequency: 441 kHz Notes: Specifications are subject to change without notice.
Pickup Weight and dimensions are approximate.
Wavelength: 780 nm
A WARNING

This service information is designed tor experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

© 2000 Matsushita Electric Industrial Co, Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

SL-Eisl

CONTENTS

Page
1 Note ---------------------------------------------------------------------------------------- 2
2 Blue LED ................................................................................. 2

3 Belore Repair ---------------------------------------
4 Handling Precautions for Traverse Deck

4.1. Handling of traverse deck (optical pickup
4.2. Grounding for electrostatic breakdown prevention rrrrrrrrrrr a

5 Precaution of Laser Diode

6 Location of Controls --------
7 Operation Checks and Component Replacement Proceduress
7.1. Checking for the CD sen/o P_c_|3_ ................................... 5
7.2. Checking for the main P.C.B. ----------------
7.3. Replacement for the traverse deck assy

7.4. Replacement for the belt, loading motor assy and loading

switch ......................................................................
7.5. Lead wire and flat cable arrangement -------

3 Error Code Display and Servo Adjustment Fun
8.1. Error Code Display Procedure ------------------------------------- 10
8.2. Servo Adjustment Procedure --------

8.3. Error code based on troubleshooting
9 To Supply Power Source ------------------------

1 Note

Refer to the service manual for Model No. SE-HDStSMD
(ORDER No. ADOOOSOSGCZ) for information on Accessories
and Packaging.

2 Blue LED

0 The blue LED mounted to each sides of front panel is very
sensitive to static electricity. When handling the LED base
plate, be very careful about it.

- Do not replace the blue LED by itself because it may be
subject to electrostatic breakdown or deterioration in
quality. When replacing the LED base plate, be sure to
replace L and Ft sides simultaneously to adjust the
brightness. For configuration at the time of supply of
replacement parts, refer to Printed Circuit Board Diagram.

Page
9.1. Power Supply to This Unit alone ----------------------------------- 12
9.2. To Check Signals -------------------------------------------------------- 12

10 Schematic Diagram Note

11 Schematic Diagram-""-
12 Printed Circuit Board Diagram rrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrr 18
13 Type Illustration of mo, Transistors and Diodes--

14 Wiring Connection Diagram'

15 Block Diagram rrrrrrrrrrrrrrrrrr

16 Troubleshooting Guide --------------------------------------------------------- 24

17 Terminal Function of ICs -------------------------------
17.1. IC4OS (L06635804K97):System Control
17.2. IC701 (ANBBSQNSBE2)236N0 Amp -----
17.3. IC702 (MN662790RSC):Servo Processor/Digital Signal

Processor/Digital FIlter/D/A converter ---------------------------- 26

17.4. K3703 (AN87SQSBE2):Focus Coil/T racking Coil/Traverse
Motor/Spindle Motor Drive -------------------------------------------- 27
18 Replacement Parts List ---------------------------------------------------------- 28

19 Cabinet Parts Location -
20 Loading Unit Parts Location

7-130

3 Before Repair

This equipment (SL-HD515), which is a component of the
system, is supplied with power from the Amplifier (SE-
HD515MD) through the Tuner (ST-HD515MD). When repairing
this equipment or checking operation of the system, be sure to
connect to the amplifier and tuner with it.

This equipment, even in the state of it as a single equipment,
permits power supply and operation check. When operating it
as a single equipment without the amplifier and tuner, refer to
the To Supply Power Source.
