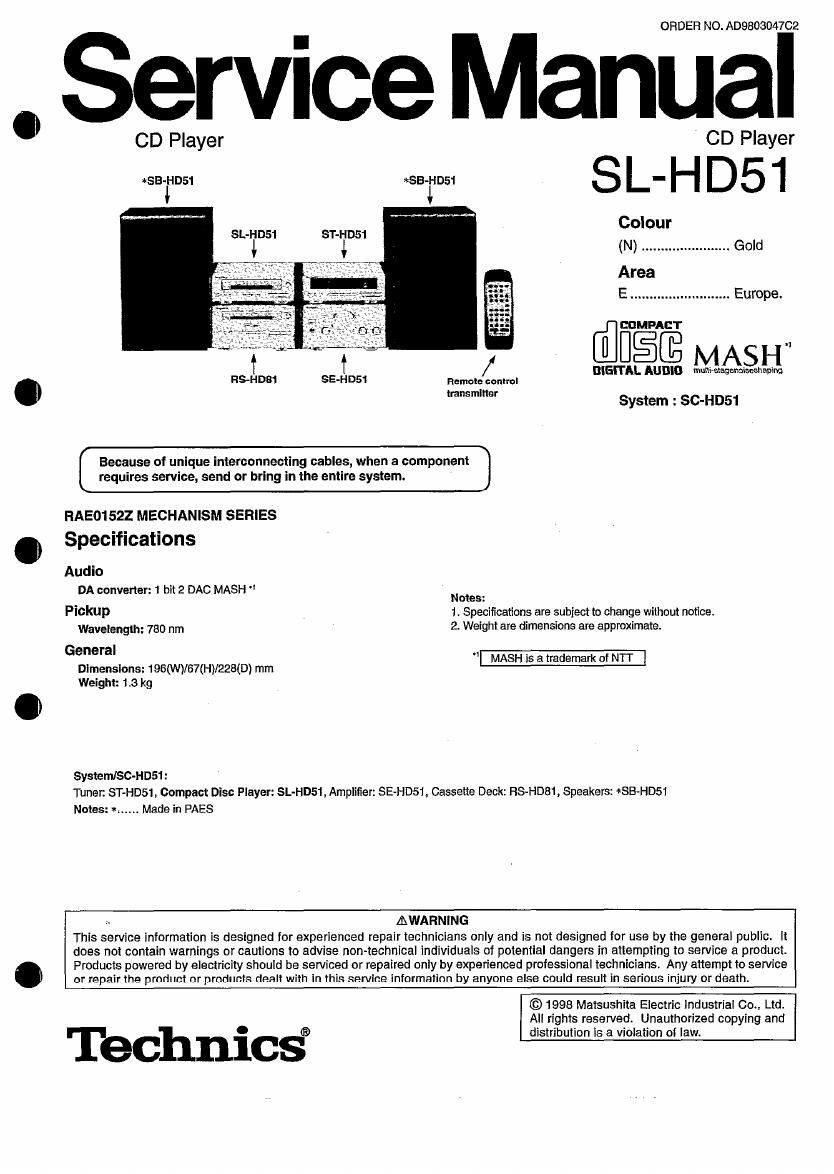

ORDER NO. AD980304702

., Service Manual

CD Player CD Player
A- I I I I - J
van-from *SBIW b L- H L) b 1
Colour
(N) ....................... Gold
E .......................... Europe.

[flficgfi MASH"

DIGITAL AUDIO mum-smeemiseshavm
RS'HD81 SE'HD51 Remote control
0 transmitter

System : SC-HD51

Because of unique interconnecting cables, when a component
requires service. send or bring in the entire system.

RAE0152Z MECHANISM SERIES

A Specifications
Audio
DA converter: 1 bit 2 DAC MASH "

. Notes:
Pickup 1. Specifications are subject to change without notice.

Wavelength: 750 nm 2. Weight are dimensions are approximate.
General ..-,,-.

' MASH is a trademark at N] l
Dimensions: 196(W)/67(H)/228(D) mm

Weight: 1.3 kg

SystemISC-HD51 :
Tuner. ST-HDSl, Compact Disc Player: SL-HDS1, Amplifier: SE-HDS1, Cassette Deck: RS-HDBL Speakers: *SB-HDSt
Notes: a ..... Made in PAES

AWARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
. or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

© 1998 Matsushita Electric industrial 00., Ltd.
All rights reserved. Unauthorized copying and

Ire chni c s® distribution is a violation of law.

Page 2

SL-HD51

I Contents

Handling Precautions tor Traverse Deck.

Type Illustration of 165, Transistors and Diodes

Precaution ct Laser Diode Wiring Connection Diagram ............................
Location of Controls ...... Schematic Diagram
Listening to Compact Disc Block Diagram .........
Operation Checks and Printed Circuit Board Diagram
Main Component Replacement Procedures. Terminal Function at [0'5 .
To Supply Power-Source .................................. Replacement Parts List...
Error Code Display and Cabinet Parts Location ...................
Servo Adjustment Function Loading Mechanism Parts Location .
Troubleshooting Guide .
NOTE:

Refer to the service manual for Model No. SE-HD51 (ORDER No. AD9802031CZ) for information on Accessories,
Installation, Connections" and Packaging".

CAUTION:

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

I Handling Precautions for Traverse Deck

The laser diode in me traverse deck (optical pickup) may break down due to potential difference caused by static electricity of clothes or human body.
So. be careiul of electrostatic breakdown during repair of the traverse deck (optical pickup).

0 Handling of traverse deck (optical pickup)

1, Do not subject the traverse deck (optical pickup) to static electricity as it Is
extremely sensitive to electrical shock.

2. To protect the laser diode against electrostatic breakdown, short the flexible
board (FFC board) with a clip or similar obiect.

3. Take care not to apply excessive stress to the flexible board (FFC board).

FFC board Lens (Do not touch)

4. Do not turn the variable resistor (laser power adjustment). It has already been Short omt
adjusted. \ Optical pickup
.EEP _
is;
o Grounding for electrostatic breakdown prevention L____j
1' Human body grounding . Variable resistor
. . . . . G\lD l N . LD l
Use the anti-static wrist strap to discharge the static electricity from your body. NO 6 I I p" o @( )p n (D° not mm)
2. Work table grounding
Put a conducive material (sheet) or steel sheet on the area where the traverse
deck (optical pickup) is placed, and ground the sheet. so
" \\ erst strap
33'1: I (Antiastatic bracelet) /
The static electricity of your clothes will not be grounded through the wrist strap. 1 M52

So, take care not to let your clothes touch the traverse deck (optical pickup).

Iron plate or some metals to
conduct electricity

Caution when Replacing the Traverse Deck:

The traverse deck has a short point shorted with solder to protect the laser diode against electrostatic breakdown. Be sure to remove the solder from
the short point before making connections.
