Extracted text from Technics SLEH 790 E Schematics (Ocr-read)
Page 1
6©®®©©®®®
®

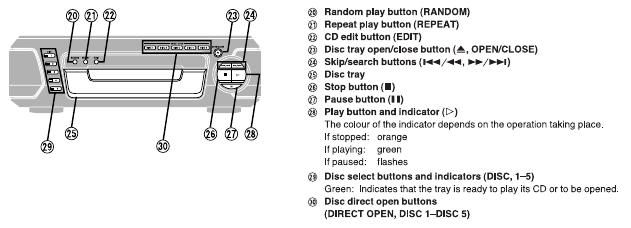

Random play button (RANDOM)
Repeat play button (REPEAT)
co edit button (EDIT)
Disc tray open/close button (A, OPEN/CLOSE)
Skip/search buttons (I44/44, >>/>>I)
Disc tray
Stop button (I)
Pause button (I I)
Play button and indicator (D)
The colour of the indicator depends on the operation taking piace.
II stopped: orange
II playing: green
It paused: flashes
Disc select buttons and indicators (DISC, 1-5)
Green: indicates that the tray is ready to play its CD or to be opened.
Disc direct open buttons
(DIRECT OPEN, DISC 1-DISC 5)
Page 2
Note : We do not supply those items of parts marked :1: .
This "P031" is a combination PCB.
