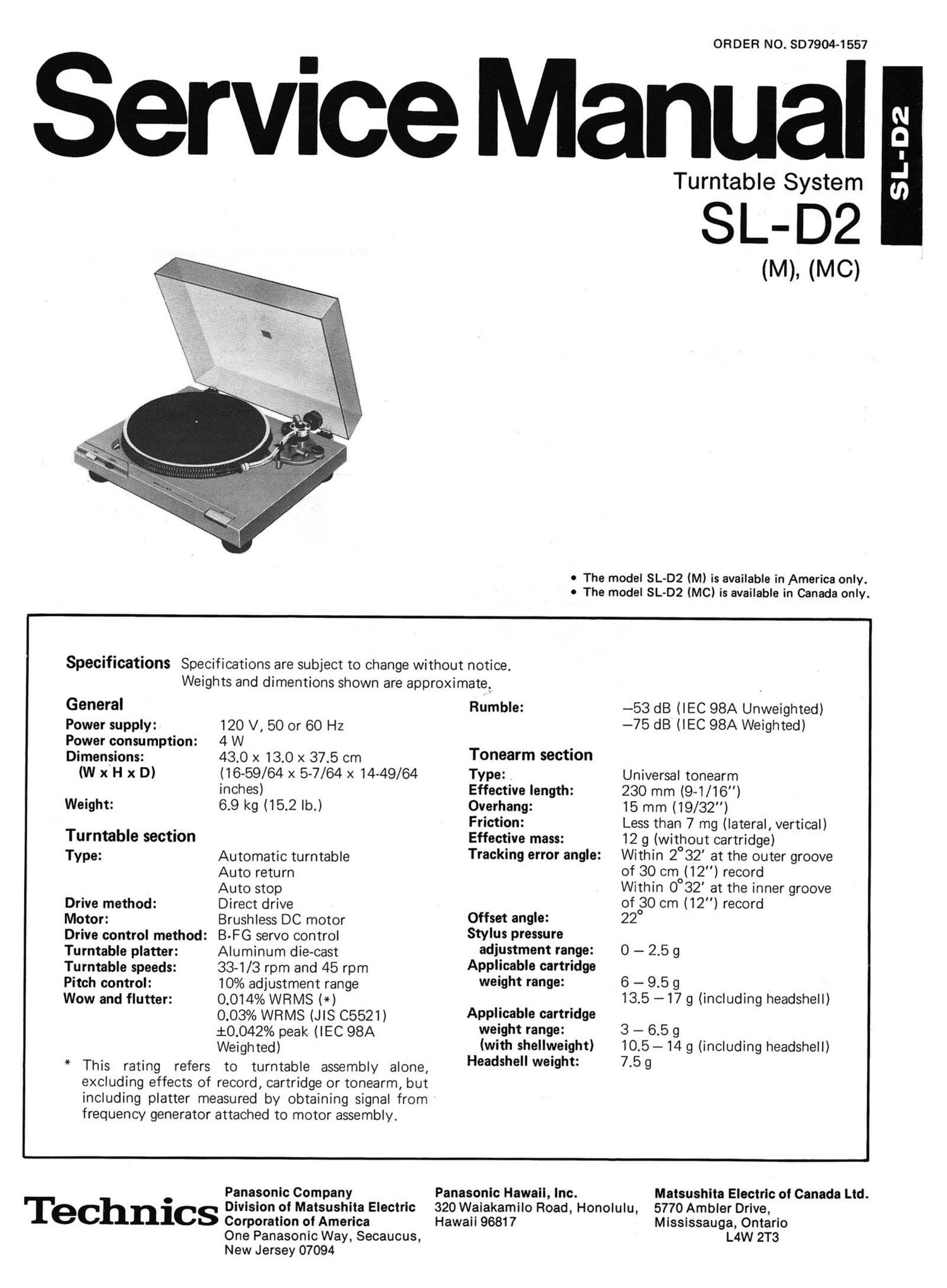

Technics SLD 2 Service Manual
This is the 13 pages manual for Technics SLD 2 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Technics SLD 2 Service Manual (Ocr-read)
Page 2
l CONTENTS
PARTS IDENTIFICATIONS ............................ 2 REPLACEMENT PARTS LIST (Electric Parts) .............. 8
FEATURES ......................................... 2 SCHEMATIC DIAGRAM .......................... 9 ~10
HOW TO OPERATE .................................. 3 TERMINAL GUIDE OF TRANSISTORS 81 IC .............. 10
ADJUSTMENTS ..................................... 4 PRINTED CIRCUIT BOARD ....................... 11 ~12
DISASSEMBLY PROCEDURE .......................... 5 EXPLODED VIEWS .............................. 13 ~15
PARTS ARRANGEMENT DIAGRAM .................... 6 REPLACEMENT PARTS LIST (Mechanical Parts) ........... 16
BLOCK DIAGRAM ................................... 7
I PARTS IDENTIFICATIONS
Hinge
45-rpm adaptor
Balance weight
Headshell stand
Stylus-pressure ring
Anti-skating
Turntable base control knob
Arm clamp Cueing knob
Arm rest
Center spindle
Tonearm
Turntable platter Turntable mat
Locking nut
Strobe dots
Strobe-illuminator/ Headshell
pilot lamp
m .1. "A \ Mum .332. ,. we. c A. I l
f , \ __ m
l Stop button
Speed select knob
Pitch control knob
I F EATU R E S
0 Front panel controls provide exceptional convenience O Pitch control with illuminated stroboscope
O Integral rotor/platter structure for stable rotation 0 Viscous-damped cueing
0 "TNRC'" base material provides an acoustic shield 0 Anti-skating control
"TNRC" ..... Technics Non-Resonance Compound
0 Hinged, detachable dust cover
0 Low-mass, low-friction gimbal suspension tonearm .
0 Automatic tonearm return
