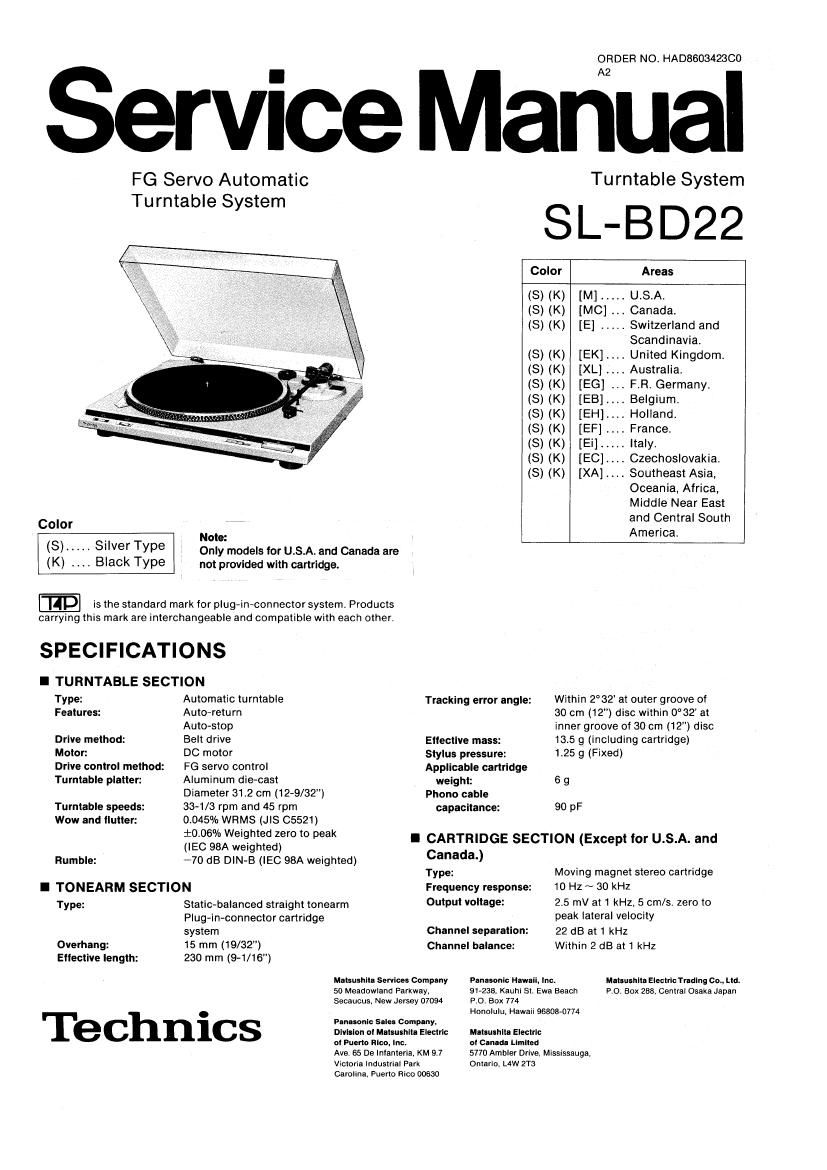

Technics SLBD 22 Service Manual

Page 1

ORDER NO. HAD860342300

ervice Manual

FG Servo Automatic
Turntable System

Color

(S) ..... Silver Type
(K) Black Type

Note:

Turntable System

SL-BD22

Color Areas

(S) (K) [M] ..... USA.

(S) (K) [MC] Canada.

(8) (K) [E] ..... Switzerland and
Scandinavia.

(S) (K) [EK].... United Kingdom.

(S) (K) [XL] Australia.

(S) (K) [EG] F.R. Germany.

(S (K) [EB].... Belgium.

(S (K) [EH].... Holland.

(S) (K) [EF] France.

(S) (K) [Ei] ..... Italy.

(S) (K) [EC].... Czechoslovakia.

(S) (K) [XA] Southeast Asia,
Oceania, Africa,
Middle Near East
and Central South
America.

Only models for U.S.A. and Canada are
not provided with cartridge.

is the standard mark for plug-in-connector system. Products
carrying this mark are interchangeable and compatible with each other.

SPECIFICATIONS

I TURNTABLE SECTION

Type:
Features:

Drive method:

Motor:

Drive control method:
Turntable platter:

Turntable speeds:
Wow and flutter:

Rumble:

Automatic turntable
Auto-return

Auto-stop

Belt drive

DC motor

FG servo control

Aluminum die-cast
Diameter 31.2 cm (12~9/32")
33-1/3 rpm and 45 rpm
0.045% WRMS (JIS 05521)

i0.06% Weighted zero to peak

(IEC 98A weighted)

770 dB DIN-B (IEC 98A weighted)

I TONEARM SECTION

Type:

Overhang:
Eflective length:

Static-balanced straight tonearm

Plug-in-connector cartridge
system

15 mm (19/32")

230 mm (9-1/16)

Technics

Tracking error angle:

Ettectlve mass:

Stylus pressure:

Applicable cartridge
weight:

Phono cable
capacitance:

Canada.)

Type:

Frequency response:
Output voltage:

Channel separation:
Channel balance:

Manusmu Services Company
SD Mezdowland Parkway,

Secaucus. New Jersey 07094 P.0. Box 774

Panasonic Hermit. Inc.
er-Qas. Kauhl Sr Ewn Bench

Within 2°32 at outer groove oi
30 cm (12") disc within 0°32 at
inner groove of 30 cm (12") disc
13.5 9 (including cartridge)

1.25 9 (Fixed)

59

90 pF

I CARTRIDGE SECTION (Except for U.S.A. and

Moving magnet stereo cartridge
10 Hz ~ 30 kHz

25 mV at 1 kHz, 5 cm/s. zero to
peak lateral velocity

22 dB at 1 kHz

Within 2 dB at 1 kHz

Mlulllhlta Electric ledlrtq Cm, Ltd.
PO. Box 288. Central Osaka Japan

Honolulu. Hawaii 96808-0774

Fan-sonic sum complny,
Dlvlllon at Mmunhttz Electric
ol Puerto Rico, Inc.

Ave. 65 De Inlanteria, KM 9.7
Victoria Industrial Park
Carotlna. Puerto Rico 00630

Mltlushlll Electric

or Canada Llrrllted

5770 Ambler Drive. Mississauga.
Ontario. L4W 2T3

Page 2

Recommended load
impedance:

Compliance (dynamic):

Stylus pressure range:

Weight:

Replacement stylus:

47 k0 ~ 100 k!)

12><106 cm/dyne at 100 Hz
1.25:0.259 (12.5:25mN)
6 g (cartridge only)
EPS-24CS

I GENERAL

Power supply: For U.S.A. and Canada:
AC 120V, 60 Hz
For United Kingdom and Australia:
AC 240V, 50 Hz
For Continental Europe:
AC 220V, 50 HZ
For Others:
AC 110~127/220~240V, 50/60 HZ

I CONTENTS

SAFETY PRECAUTION .............
LOCATION OF CONTROLS .......
DISASSEMBLV INSTRUCTIONS .......

Power consumption: 3 W
Dimensions:
(WXHXD) 430><375 mm
(16-15/16X3-21/32"X14-3/4")
When dust cover is open:
430x360><410 mm
(16»15/16><14-5/32"><16~1/8")
Weight: 3.6 kg (7.9 lb.)

Specifications are subject to change without notice for further
improvement.
Weight and dimensions shown are approximate.

CIRCUIT BOARD AND WIRING
CONNECTION DIAGRAM ............
TROUBLESHOOTING

I SAFETY PRECAUTION

. Before servicing, unplug the power cord to prevent an electric shock.

. When replacing parts, use only manufacturer's recommended components for safety.

. Check the condition of the power cord. Replace if wear or damage is evident,

. After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc.

. Before returning the serviced equipment to the customer, be sure to make the following insulation resistance test to

(fldFMN-I

MEASUREMENTS AND ADJUSTMENTS . EXPLODED VIEW ..........
SCHEMATIC DIAGRAM . REPLACEMENT PARTS LIST.
BLOCK DIAGRAM .. PACKING

(This safety precaution" is applied only in USA.)

prevent the customer from being exposed to a shock hazard.

o INSULATION RESISTANCE TEST

. Unplug the power cord and short the two prongs of the plug with a jumper wire

. Turn on the power switch.
. Measure the resistance value with ohmmeter between the jumpered AC plug and each exposed metal cabinet part, such as

screwheads, antenna, control shafts. handle brackets, etc. Equipment with antenna terminals should read between 3M9
and 5.2MSI to all exposed parts. (Fig. A) Equipment without antenna terminals should read approximately infinity to
all exposed parts. (Fig. B)

Note: Some exposed parts may be isolated from the chassis by design. These will read infinity.

4.

Antenna
terminal

Exposed Exposed
metal metal
part part

Ohmmeter

Ohmmeler
(Fig. A) (Fig. 8)

Resistance = 3MQ-52MQ ReSIstance = Approx 00

If the measurement is outside the specified limits, there is a posstbility of a shock hazard. The equipment should be
repaired and rechecked before it is returned to the customer,

_2_
