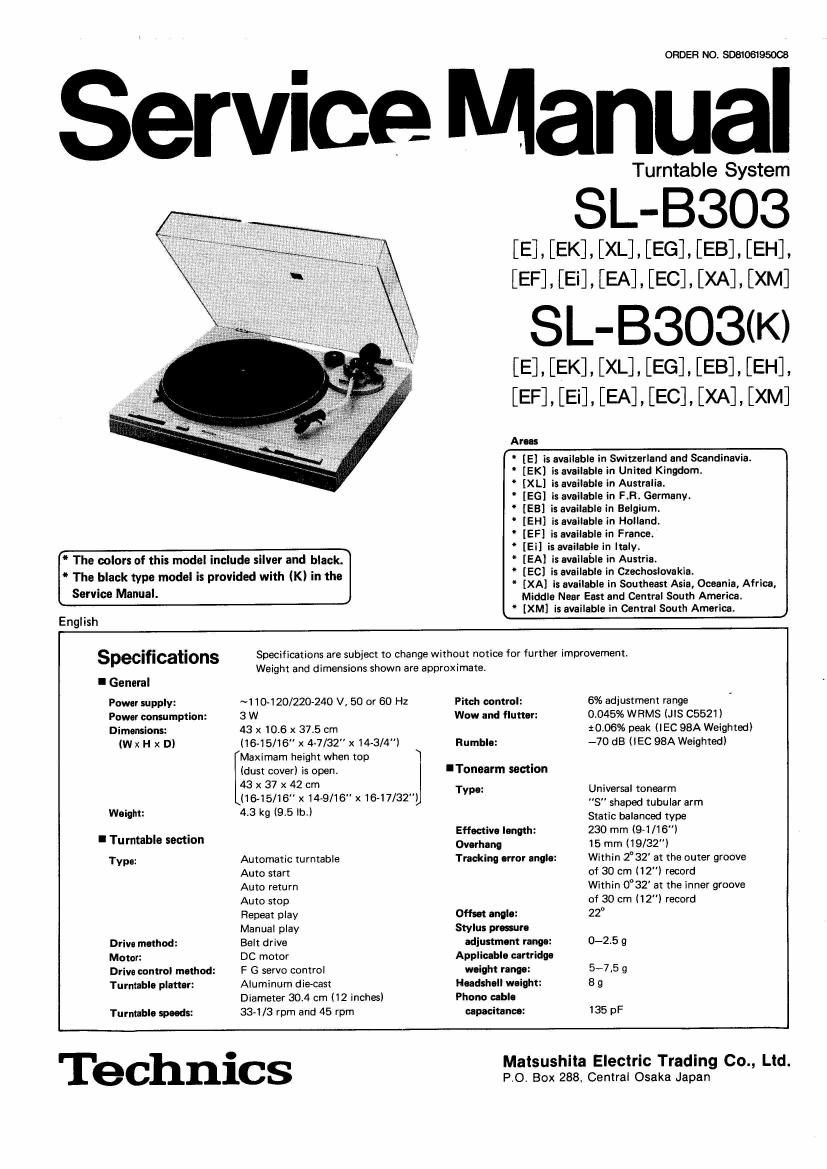

Page 1
ORDER NO. SD8106195008
Service Manual
(a The colors of this model include silver and black.
The black type model is provided with (K) in the
L Service Manual.
Turntable System
SL-BSO3
[E], [EK], [XL], [EG], [EB], [EH].
[EF], [El]. [EA], [EC], [XA], [XM]
SL-B303(K)
[E]. [EK], [XL], [EG]. [EB], [EH].
[EF]. [Ei], [EA]. [EC]. [XA], [XM]
Areas
[E] is available in Switzerland and Scandinavia. j
" [EK] is available in United Kingdom.
" [XL] is available in Australia.
[E6] is available in ER. Germany.
[E8] is available in Belgium.
[EH] is available in Holland.
[EF] is available in France.
[Ei] is available in Italy.
[EA] is available in Austria.
' [EC] is available in Czechoslovakia.
[XAl is available in Southeast Asia, Oceania, Africa,
Middle Near East and Central South America.
sens
I Turntable section
Type:
Drive method:
Motor:
Drive control method:
Turntable platter:
Turntable speeds:
Effective length:
Overhang
Automatic turntable Tracking error angle:
Auto start
Auto return
Auto stop
Repeat play Offset angle:
Manual play Stylus presure
Belt drive adiustmant range:
DC motor Applicable cartridge
F G servo control might range:
Aluminum die-cast Headshell weight:
Diameter 30.4 cm (12 inches) Phono cable
33-1/3 rpm and 45 rpm capacitance:
_ " [XM] is available in Central South America. 1
English
Specifications Specifications are subject to change without notice for further improvement.
Weight and dimensions shown are approximate.
I General
Power supply: ~110-120/220»240 V, 50 or 60 Hz Pitch control: 6% adjustment range
Power consumption: 3 W Wow and flutter: 0.045% WRMS (JIS C5521 l
Dimensions: 43 x 10.6 x 37.5 cm 10.06% peak (IEC 98A Weighted)
(W x H x D) (16-15/16" x 4-7/32" x 14-3/4") Rumble: -70 dB iiEC 98A Weighted)
Maximam height when top
(dust cover) is open. lTonearm section
43 x 37 x 42 cm .
H .. ., Type: Universal tonearm
w . . (413:5/(1965 'x :4-9/16 x 16-17/32 l S shaped tubular arm
3'9" g b' Static balanced type
230 mm (9-1/16")
15 mm tie/32")
Within 2° 32' at the outer groove
of 30 cm (12") record
Within 0°32 at the inner groove
of 30 cm (12") record
22u
0-2.5 g
5~7,59
89
135 pF
Technics
Matsushita Electric Trading Co., Ltd.
PO. Box 288. Central Osaka Japan
