Technics SLB 3 Service Manual
This is the 13 pages manual for Technics SLB 3 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

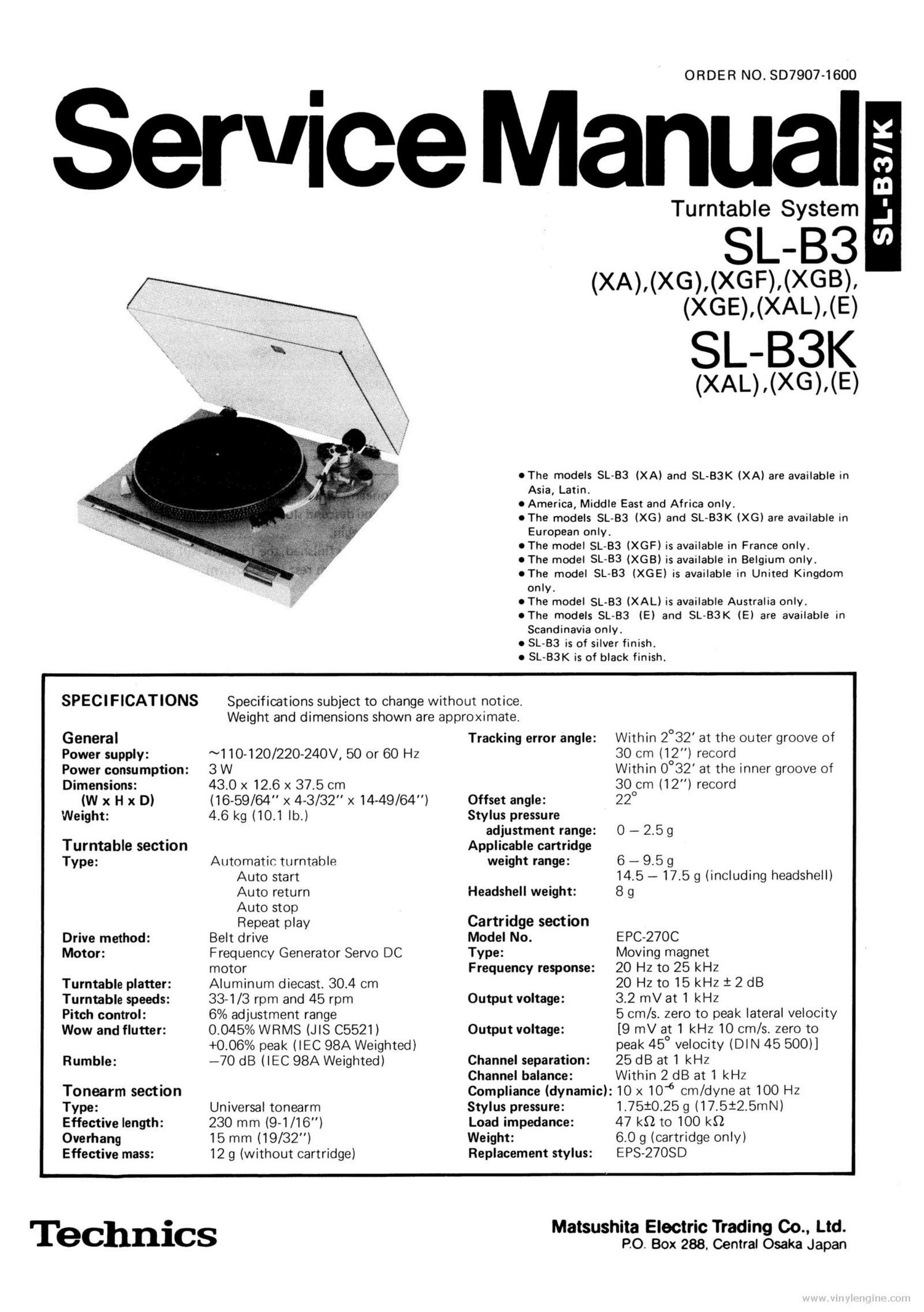

Extracted text from Technics SLB 3 Service Manual (Ocr-read)
Page 1
SerVice Manual
SPECIFICATIONS
General
Power supply:
Power consumption:
Dimensions:
(W x H x 0)
Weight:
Turntable section
Type:
Drive method:
Motor:
Turntable platter:
Turntable speeds:
Pitch control:
Wow and flutter:
Rumble:
Tonearm section
Type:
Effective length:
Overhang
Effective mass:
ORDER NO. 807907-1600
(XA), (XG),( (),XGF (X)GB
(XGE), (XAL),(E)
SL- 83K
X(AL)
oThe models SL-B3 (XA) and SL-B3K (XA) are available in
Asia, Latin.
0 America, Middle East and Africa only.
OThe models SL-83 (XG) and SL-B3K (XG) are available in
European only.
0 The model SL-B3 (XGF) is available in France only.
oThe model SL-B3 (XGB) is available in Belgium only.
oThe model SL-B3 (XGE) is available in United Kingdom
only.
0 The model SL-B3 (XAL) is available Australia only.
OThe models SL-83 (E) and SL-83K (E) are available in
Scandinavia only.
0 SL-B3 is of silver finish.
0 SL-B3K is of black finish.
Specifications subject to change without notice.
Weight and dimensions shown are approximate.
~110-120/220-240V, 50 or 60 Hz
3 W
43.0 x 12.6 X 37.5 cm
(16-59/64" X 43/32" x 14-49/64")
4.6 kg (10.1 lb.)
Automatic turntable
Auto start
Auto return
Auto stop
Repeat play
Belt drive
Frequency Generator Servo DC
motor
Aluminum diecast. 30.4 cm
33-1/3 rpm and 45 rpm
6% adjustment range
0.045% WRMS (JIS C5521)
+0.06% peak (IEC 98A Weighted)
-70 dB (IEC 98A Weighted)
Universal tonearm
230 mm (9.1/16")
15 mm (19/32")
12 9 (without cartridge)
Technics
Tracking error angle:
Within 2°32 at the outer groove of
30 cm (12") record
Within 0°32' at the inner groove of
30 cm (12) record
Offset angle: 220
Stylus pressure
adjustment range:
0-259
Applicable cartridge
weight range:
6-959
14.5 - 17.5 g (including headshell)
Headshell weight: 8 g
Cartridge section
Model No.
Type:
Frequency response:
Output voltage:
Output voltage:
Channel separation:
Channel balance:
Compliance (dynamic):
Stylus pressure:
Load impedance:
Weight:
Replacement stylus:
EPC-270C
Moving magnet
20 Hz to 25 kHz
20 Hz to 15 kHz i2dB
3.2 mV at 1 kHz
5 cm/s. zero to peak lateral velocity
[9 mV at 1 kHz 10 cm/s. zero to
peak 45° velocity (DIN 45 500))
25 dB at 1 kHz
Within 2 dB at 1 kHz
10 x1045 cm/dyne at 100 Hz
1.75i0.25 g (17.5i2.5mN)
47 kSl to 100 k9
6.0 g (cartridge only)
EPS-27OSD
Matsushita Electric Trading Co., Ltd.
PO. Box 288. Central Osaka Japan
