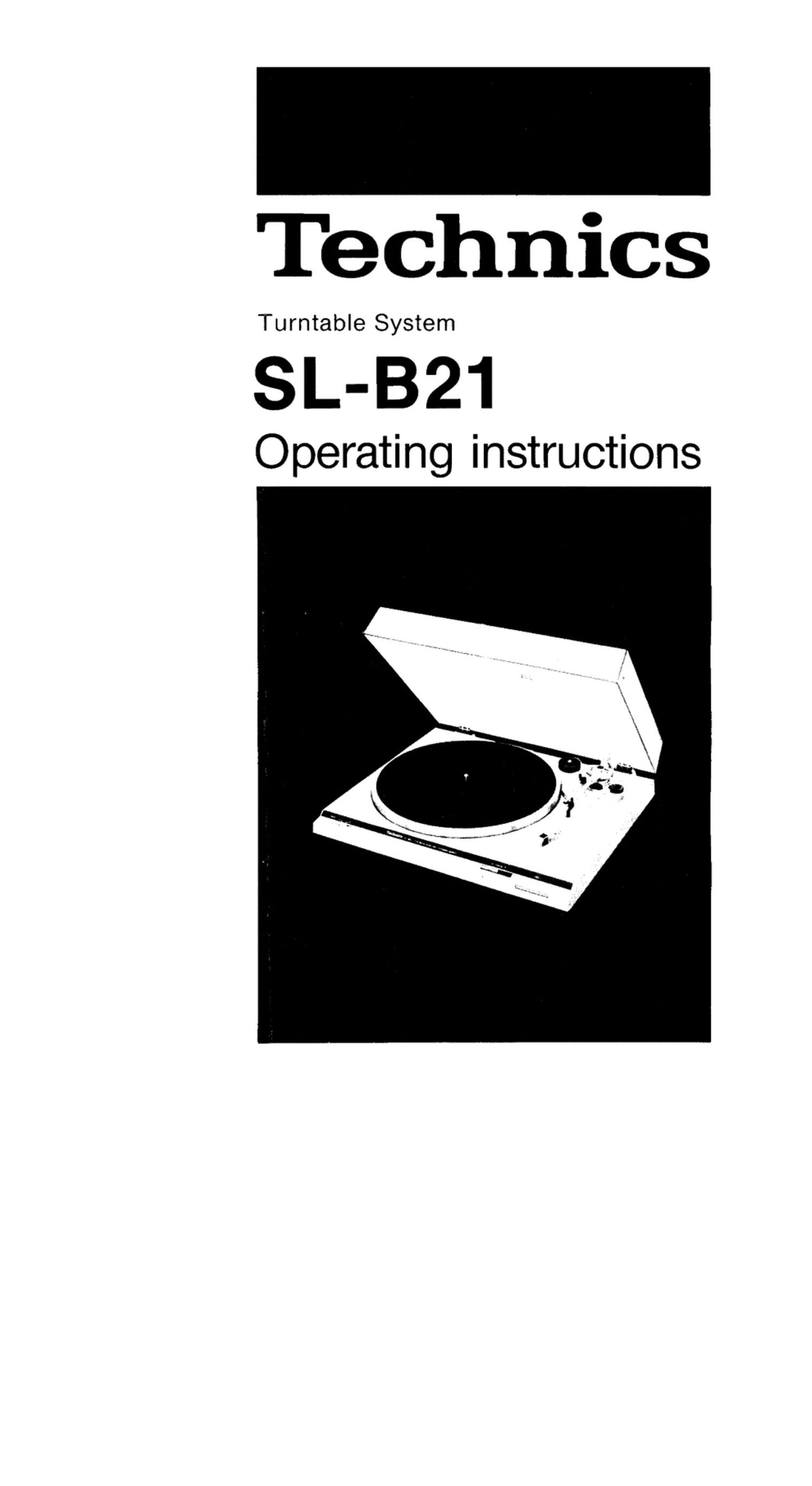

Page 1
Technics
Turntable System
SL-BZ1
Operating instructions
Page 2
Parts identification
Hinge , 45-rpm adaptor
Stylus pressure
adjustment knob
Anti-skating control
Center spindle
Arm rest
Turntable mat
Arm clamp
Turntable platter
Turntable base Tonearm
Cartridge
Speed selector Stop switch
Cueing control
Caution for safe use of this apparatus As; the colours of the Wires in the mains lead ol this
(For UNITED KINGDOM) apparatus may not concspond wrth the coloured
markings identilymg the terminals in your plug. proceed
Caution as lollows
o This apparatus IS (loiible insulated. satiety earth not The Wire which is coloured BLUE must be connected to
N'QUHCO the terminal which is marked with the letter N or coloured
Imporlamt _ . BLACK The wrte which is coloured BROWN must be
0 The wrres In ""5 mains lead 3'9 coloured m connected to the terminal which rs marked With the letter
accordance with the following code: L or coloured RED
Blue: N.€U"3 This equipment should be disconnected trom the mains
Brown: Live when not in use.
WARNING: To reduce the risk of fire or electric shock,
do not expose this appliance to rain or moisture.
-2-
