Technics SLB 100 Owners Manual

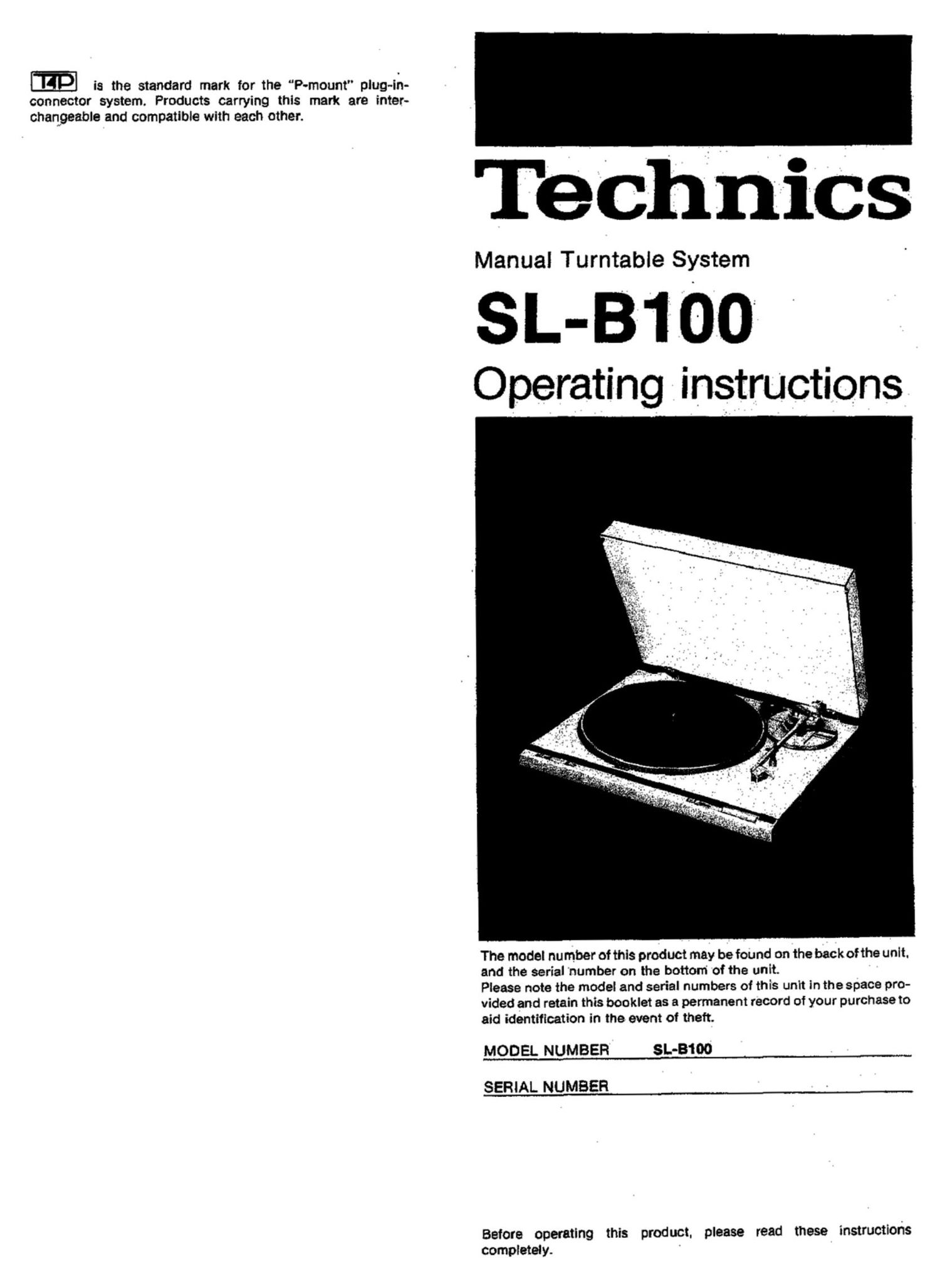

Page 1

12] is the standard mark for the P-mount" plug-in-
connector system. Products carrying this mark are inter-
changeable and compatible with each other.

Technics

SL-B1OO

Operating instructions

The model number of this product may be found on the back otthe unit.
and the serial number on the bottom of the unit.
Please note the model and serial numbers of this unit in the space pro-

vided and retain this booklet as a permanent record of your purchase to
aid identification in the event of theft.

MODEL NUMBER SL-B100

SERIAL NUMBER

Before Operating this product. please read these instructions
completely.

Page 2

-M .

__

I Bart-s fientification - l

Hinge

. .,._t ~---a.q---....- ._l--.........-

Center spindle

1

Turntable mat

Turntable platter

_-:- .w ~-

Strobe dots

w-an- . .

Turntable base

mk--l.

Speed selector

Pitch control

Strobe-illuminator/pilot lamp

CAUTION f

9:31. U?" Ei'r'CTPnE SHOCK

GU NUT OPEN

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK. DO NOT
REMOVE SCREWS.
NO USER-SERVICEABLE

PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

. _; fl

45-mm adaptor

Arm rest

Tonearm

Power switch

Cueing control

The lightning flash with arrowhead symbol.

- within an equilateral triangle, is intended to

alert the user to the presence of uninsulated

"dangerous voltage within the product's

enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance,

WARNING: To reduce the risk of fire or electric shock,
do not expose this appliance to rain or moisture.

".2.-
