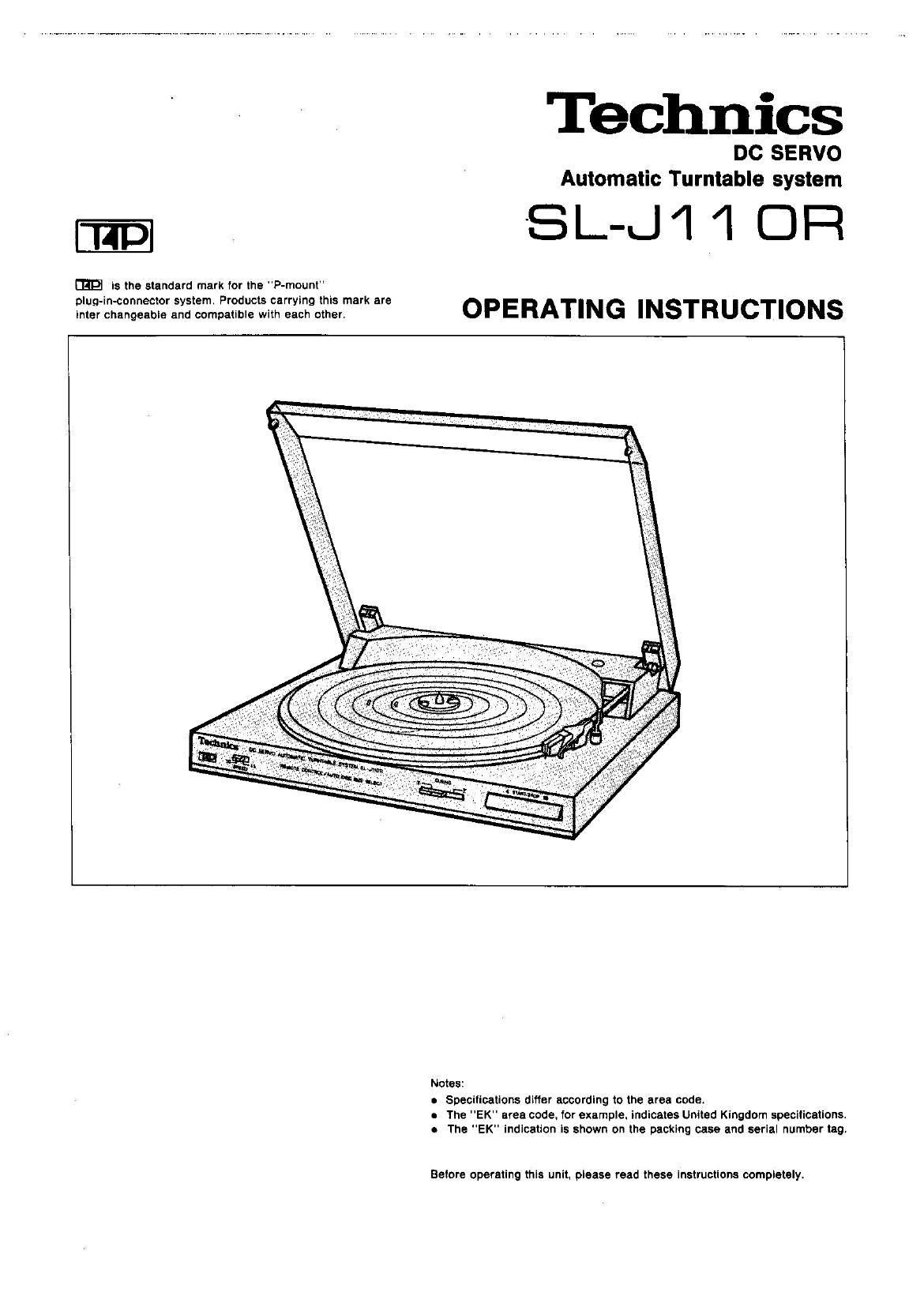

Technics SL J 110R Owners Manual

Page 1

Technics

DC SERVO
Automatic Turntable system

TT'D SL-dil UP

is the standard mark for the "P-mount"

{n'iiliifi'gliifi'iii 3351333535: 33219313? e OP E RATING INSTRUCTIONS

Notes:

0 Specifications differ according to the area code.

0 The "EK" area code. for example. indicates United Kingdom specifications.
0 The "EK" indication is shown on the packing case and serial number tag.

Beiore operating this unit. please read these instructions completely.

Page 2

We want to thank you for selecting this product and to
welcome you to the growing family of satisfied
Technics product owners around the world.

We feel certain you will get maximum enjoyment
from this new addition to your home.

Please read these operating instructions carefully.
and be sure to keep them handy for convenient
reference.

For United Kingdom

The "EK" indication is shown on the name plate.

This plug must only be connected to electronic apparatus
equipped with suitable sockets.

Otherwise cut off and dispose of the plug. and fit an appropriate
one in accordance with the instruction below.

important

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this unit may not
correspond with the coloured markings identifying the terminals in
your plug. proceed as follows. The wire which is coloured BLUE
must be connected to the terminal which is marked with the letter
N or coloured BLACK.

The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.

The apparatus was produced to BS 800: 1983

Suggestions for Safety

I Use a standard electrical AC wall outlet

1. Use from an Ac power source of high vottage. such as for air
conditioners, Is very dangerous.
Be extremely careful not to make a connection to the electrical
outlet for a large air conditioner or central-heating unit which
uses high voltage. because there is the possibility of fire.

2. A ac power source cannot be used.
Be sure to check the power source carefully. especially on a
ship or other place where DC is used.

I Connection and removal of the power cord plug
1. Wet hands are dangerous.
A dangerous electric shock may result if the plug is touched by
wet hands.
2. Don't pull the power cord.
Always grasp the plug; never pull the cord itself.

I Never attempt to repair or reconstruct this unit
A serious electric shock might occur it this unit is repaired.
disassembled or reconstructed by unauthorized persons. or if the
internal parts are accidently touched.

I For families with children

Never permit children to put anything. especially metal, inside this
unit. A serious electric shock or malfunction could occur if articles
such as coins. needles. screwdrivers. etc. are inserted through the
ventilation holes. etc. of this unit.

I Turn off after use

If the unit is left tor a long time with the power on. this will not only
shorten its useful operation life. but may also cause other
unexpected trouble.

I If water is spilled on the unit

Be extremely careful if water is spilled on the unit. because a fire
or serious electric shock might occur. Immediately disconnect the
power cord plug, and consult with your dealer.

I Place the unit where It will be well ventilated,
and away from direct sunlight.

Place this unit at least to cm (4") away from wall surfaces. etc..

and away from direct sunlight.

I Keep the unit away from heaters, etc.
Heat can damage the external surfaces as well as internal circuits
and components.

I Avoid spray-type Insecticides

insecticides might cause cracks or "cloudiness" in the cabinet and
plastic parts of this unit. The gas used in such sprays might,
moreover. be ignited suddenly.

I Never use alcohol or paint thinner
These and similar chemicals should never be used. because they
may damage the finish.

I If trouble occurs

If. during operation. the sound is interrupted or indicators no
longer illuminate. or if abnormal odor or smoke is detected.
immediately disconnect the power cord plug, and contact your
dealer or an Authorized Service Center.
