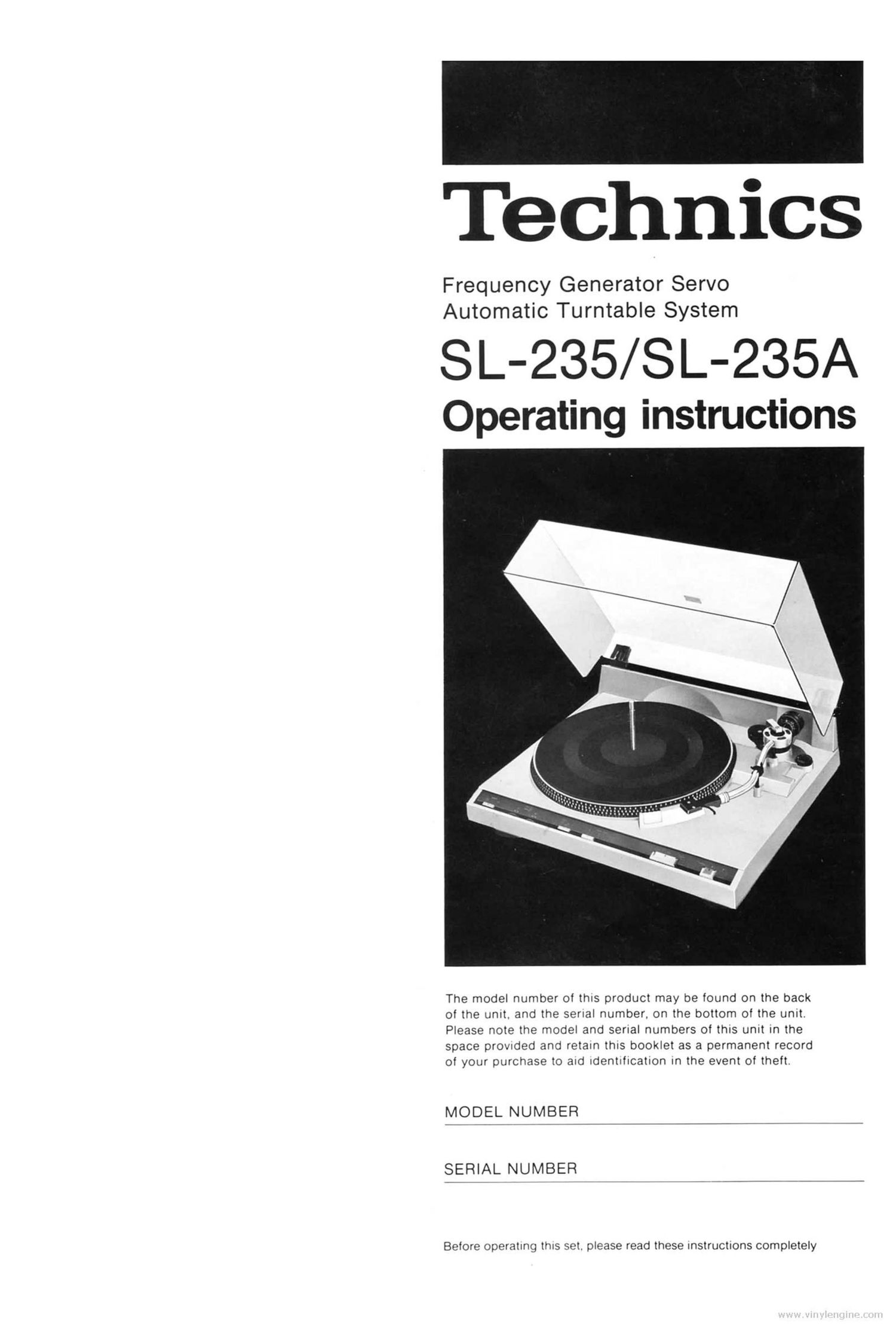

Page 1
Technics
Frequency Generator Servo
Automatic Turntable System
SL-235/SL-235A
Operating instructions
The model number of this product may be found on the back
of the unit. and the serial number, on the bottom of the unit.
Please note the model and serial numbers of this unit in the
space prowded and retain this booklet as a permanent record
of your purchase to aid Identification in the event of theft.
MODEL NUMBER
SERIAL NUMBER
Before operating this set. please read these instructions completely
Page 2
We want to thank you for selecting the SL-235/SL-235A.
For optimum performance, we recommend that you read these instructions carefully.
These operating instructions cover both SL-235 and SL-235A
Paflsidenfificafion
Center spindle Output terminals
(Single play spindle)
Phono cables
AC power plug Ground wire(GND)
45-rpm adaptor
Headshell stand
_-
Hinge
Balance weight
Stylus-pressure ring
Anti-skating control knob
Arm clamp
Arm rest
Turntable platter
Turntable mat
Locking nut
Headshell
Strobe-illuminator/pilot lamp
Q-
.~--..--:
-----------
......
Strobe dots
' JJJJJ
IIIII
Pitch control knobs Cueing knob
Speed select knob Memo-gram knob --Start/stop knob
Turntable base Record size select knob
Warning: To prevent fire or shock hazard,
do not expose this appliance to rain or moisture.
_1_
