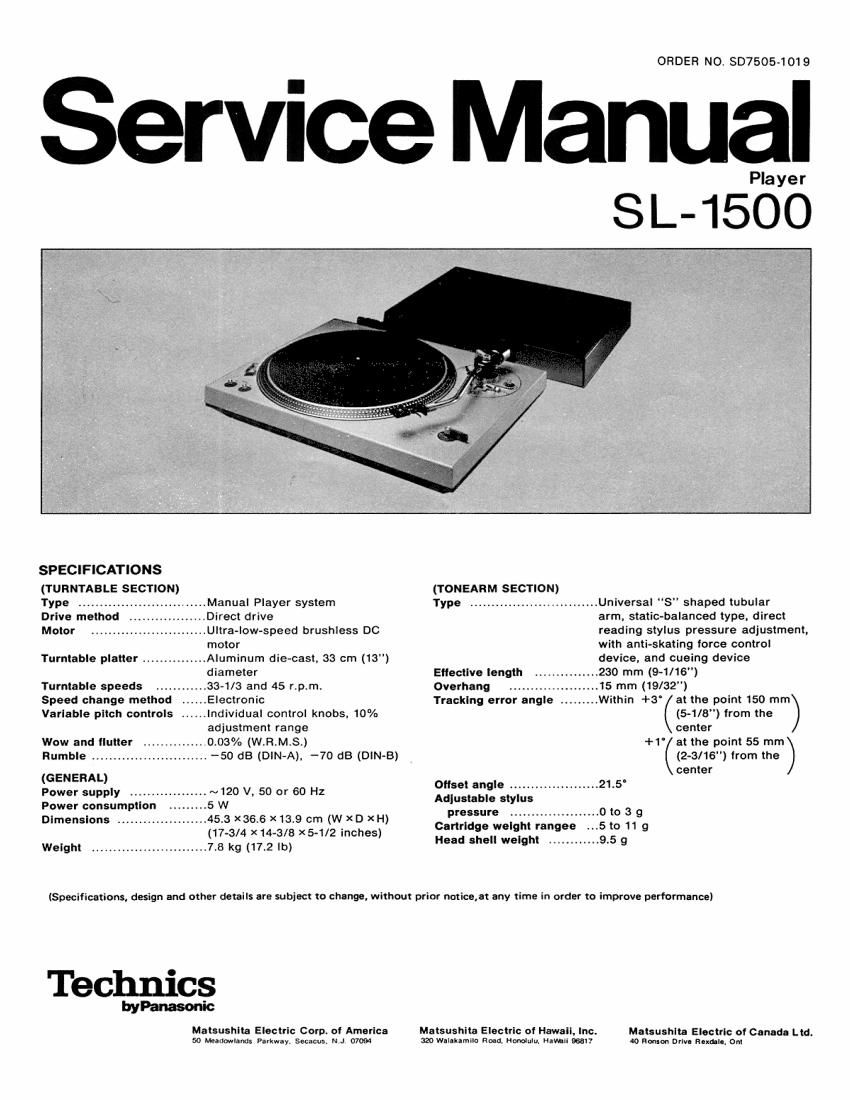

ORDER NO SD7505-1019

ce Manual

Player

SL-15OO

SPECIFICATIONS
(TURNTABLE SECTION)

Type Manual Player system

Drive method Direct drive

Motor ........................... Ultra-low-speed brushless DC
motor

Turntable platter Aluminum die~casL 33 cm (13")
diameter

Turntable speeds ............ 33-1/3 and 45 r.p.m.

Speed change melhod ...... Electronic

Varlable pitch controls ...... individual control knobs, 10%

adiustment range
. 0.03% (W.R.M.S.)
., -50 dB (DIN-A). -70 d8 (DIN-B)

Wow and flutter
Rumble ..............

(GENERAL)

Power supply .. ~120 V, 50 or 60 Hz

Power consumption 5 W

Dimensions ..................... 453 X366 X133 cm (W XD X H)
[17-3/4 X14~3l8 X 51/2 inches)

7,8 kg (17.2 lb)

Weight

(TONEARM SECTION)

Type ............................. Universal "S" shaped tubular
arm, staticvbalanced type. direct
reading stylus pressure adjustment,
with anti-skating force control
device, and cueing device

Eflectlve length .230 mm (91/16")

Overhang ..15 mm (19/82")
Tracklng error angle ......... Within +3' at the point 150 mm
((5-1/8") lrom the >
center
+1' at the point 55 mm
((2-3/16") lrom the )
center
Offset angle ..................... 21.5'
Adlustable stylus
pressure ..................... 0 to 3 g
Cartrldge weight rangee ...5 to 11 9
Head shell welght ............ 9.5 9

(Specifications. design and other details are subject to change, without prior notice,at any time in order to improve performance)

Technics
byPanasomc

Matsushlta Electric Corp. oI Amcllca
50 Mennowlands Pathway. Sacacus. N J 07094

Matsushita Electric 0' Hawall. Inc.
IZOWIi-kamlte Hold Houomlu. HIM mt?

Matsushlta Electric of Canada Ltd.
w amen mm Rue-Ia, om

Page 7

PARTS LIST

Ref. No. Part No. Description P593? Remarks Rat. No. Part No, Description fling? Remarks
1 SFTE150-01A Turntable platter 1 0 43 SFAD150M01A Dust cover assembly 1 0
2 SFTG120-01 Turntable mat 1 44 SFAU150-01A Bottom cover assembly 1 O
3 SFMZ150-01Z Starter trame assembly 1 0
3-2 XTN4 +SBFU Screw for stater lrame 3 44-2 SFUZ150~01A Audio insulator assembly 4
4 SFAC150M01 Player case 1 0 44-3 stw022.1 Washer for audio insulator 4
5 SFAT1 50-01A Hinge assembly 2 0 44-4 XWAaaF Spring washer for audio insulator 4
5-2 XTV3+SBFZ Screw tor hinge assembly a 44-5 XNGSHFUS Not for audio insulator 4
6 SFXGO2OLO1 Screw for hinge assembly 4 44-7 XTN3+33BFZ Screw tor bottom cover 7
7 SFUP150-01 Switch plate 1 0 44-3 SFXW120-01 Washer for bottom cover 12
7-2 XTN3+88FU Screw tor switch plate 3 0 44-9 XTN3+1OBFZ Screw for bottom cover 5
B SFUM1 50-01 Switch cam 1
9 ESRE113K30C Rotary swrtch 1 O 50 SFPCC13001 K Head shell assembly 1

10 AM77209 Micro 0ch 1 51 SFPAM15001 K Arm unit assembly 1

10-2 XVN3+CI GFUS Screw tor micro switch 2 51-2 XYN3+012FU Screw for arm base 2

10-3 XNG3HFUS Nut tor micro swrtch 2 52 SFPW615001 K Balance weight assembly 1 O
11 SFUP1 50-02 Mounting plate tor variable resistor 1 0 53 SFPKD15001 Arm base 1 0
11-2 XTN3+BBFU Screw lor mounting plate 2 54 SFPJK13001 K Anti-skating force control knob 1

12 EVHBOAKISBGZ Variable resistor 2 55 SFPJK13002 Canoeler cam A 1

13 SFDJ1 23055 5-pin connector 1 55-2 SFPEW1100 Washer tor canceler cam 1

14 SFER110X04E Terminal strip 1 55-3 SFUPWROOS Washer for canceler earn 1

14-2 XTN3+BBFU Screw for terminal strip 2 55-4 XTW26 +50FU Screw for canceler earn 1

15 ERG1ANJ123 Carbon lllm resistor 1 56 SFPJK13003 Canoeler cam B 1

16 ECOM6473MZ Capacitor 1 56-2 $FXW551 D2 Washer for canceler cam B 1

17 ERDl 2TJ4R7 Carbon resistor 1 57 SFPJK15002 Cam shaft 1 O
13 XBASZBOZO1 Fuse 1 58 SFPSP13001 Spring for canceler 1

1 9 SPT-1 AC power cord 1 59 SFPJL13007K Cueing lever assembly 1

20 SFUP1 30-04 Mounting plate tor AC power cord 1 60 SFPAB12002 Knob for oueing lever 1

20-2 XTN3+85FU Screw for mounting plate 2 61 SFPGM13001 Cueing rubber 1

21 SFHK040L Bushing for AC power cord 1 62 SFPRT13003K Arm lift 1

22 SFUP1 30-06 Print base cover 1 63 SFOA829-03 Spring tor arm lift 1

22-2 XTN3+GBFU Screw for print base 2 64 SFX6829-1 Screwforadjustmentetarmlifthaight 1

24 SFUP130-03 Mounting plate for transformer 1 65 SFPfiT22001 K Arm rest 1

24-2 SFXW1 20-02 Washer for mounting plate 3 65-2 XNGZGEBN Nut tor arm rest 1

24-3 XTN3+BBFU Screw for mounting plate 3 65-3 XWAZSBFU Spring washer for arm rest 1

26-4 SFXW750-01 Washer for mounting plate 3 66 SFPAB13008K Arm lift base assembly 1

25 MPT-006 Transformer 1 66-2 XTN3+SBFU Screw tor arm lift base 3

25-2 XYN4+CBFUS Screw for transformer 2

25-3 XNGHFUS Nut 1or transtormer 2 68 SFCZVBBOO Screw for cartridge 2

26 SF60827M01 Cushion rubber for transformer 3 69 SFPEWBOO Screw tor cartridge 2

27 SHE 36 Cord holder 1

28 SFGZ120-02 Clamping rubber for leadwires 5

30 SFDP1 30-01 A Circuit plate assembly 1 ACCESSORY PARTS

30-2 XTN3 +88FU Screw tor circuit plate 3 A1 SFWE1 54A1 45 LpJn adaptor 1

31 SFKT130-01A Variable pitch control knob 2 A2 SFW0010 Oil 1

32 SFKT150-O1A Start lever 1 0 A3 SFK0135-01E Overhang gauge 1

33 SFUM130-01 Neon lamp base 1 A4 SFNU150M01 Printed Matter (for USA) 1 0
33-2 XTN3+BBFU Screw tor neon lamp 2 A5 SFNU150C01 Printed Matter (tor Canada) 1 0
33-3 XTN3+68FU Screw for neon lamp 1

34 SFUP1 50-03 Neon lamp holder 1 O

35 SFDN1 50-01A Neon lamp assembly 1 O PACKING MATERIALS

36 SFDH 028-01 Phono cable 1 P1 SFHP150M01 Inside packing case 1 O
37 SFEL028-01 E Ground wire 1 P2 SFHH130-05 Side pad (Front) 1

38 SFG T028-01 Cord clamper for phone cable 1 P3 SFHH130-05 Side pad (Rear) 1

39 SFER130-01 Terminal strip for phone cable 1 P4 SFHH130-03 Accessory box 1

39-2 XTN3+63FU Screw for terminal strip 2 P5 SFHD135-01 Magnet cover 1

40 SFUP150-04 Clamper lor AC power cord 1 0 P6 SFHK100-1 Pad. tone arm 1

40-2 XTNS +SBFU Screw for clamper 2

41 SFUP150-05 Shield cover 1 0

41-2 XTN3+BBFU Screw lor shield cover 4

62-2 XTN3+8BFU Screw tor tone arm assembly 3
