Technics SL 150 Owners Manual

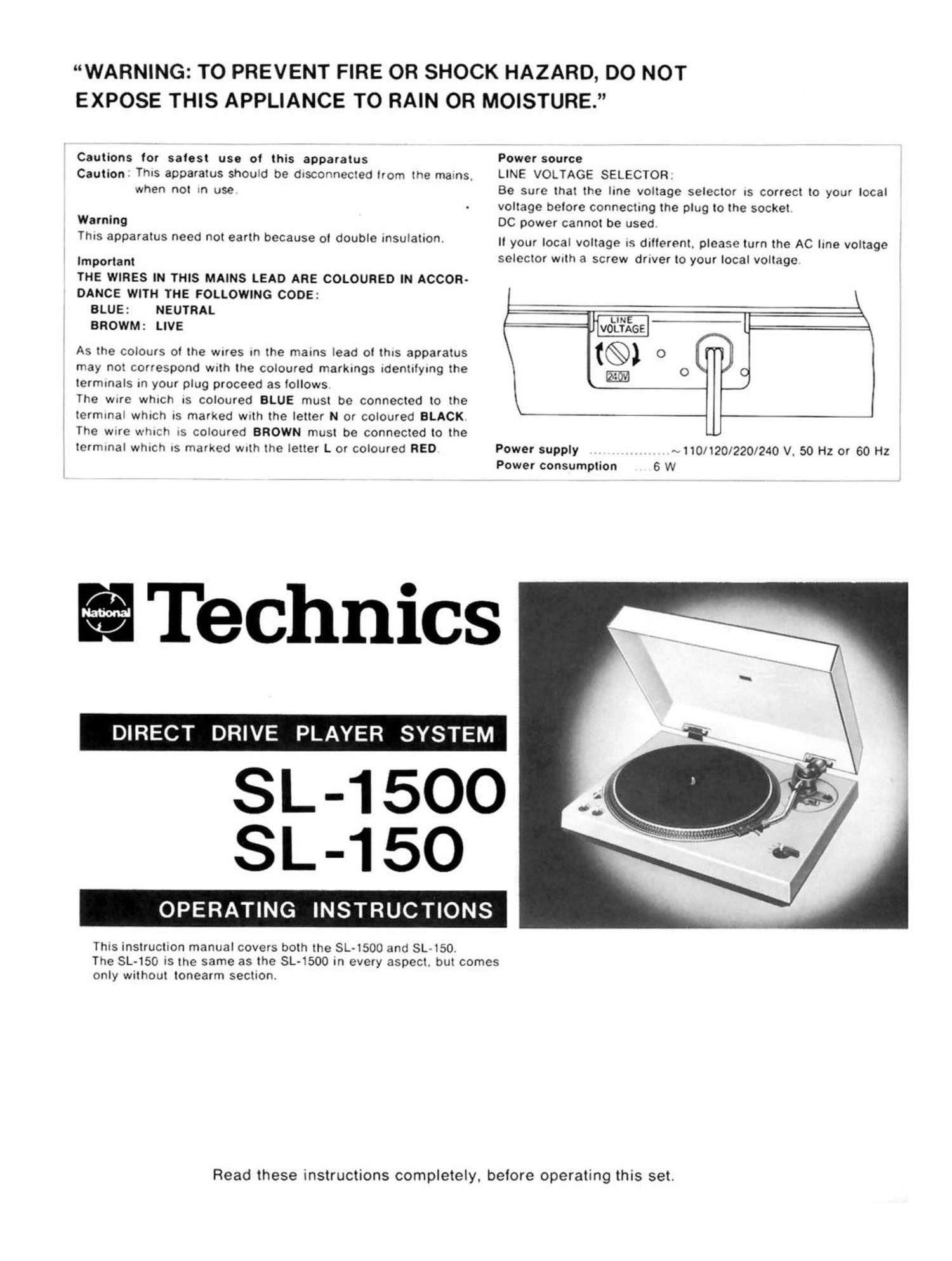

Page 1

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Cautions tor salest use of this apparatus

Caution: This apparatus should be dlSCOnneCIed from the malnS,

when not m use

Warning
This apparatus need not earth because of double insulation.

Important
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCOR-
DANCE WITH THE FOLLOWING CODE:

BLUE: NEUTRAL

BROWM: LIVE

As the col0urs oi the Wires in the mains lead ol this apparatus
may not correspond With the coloured markings identifying the
terminals in you plug proceed as follows

The Wlfe which IS coloured BLUE must be connected to the
terminal which IS marked With the letter N or coloured BLACK
The Wife which IS col0ured BROWN must be connected to the
terminal which IS marked wrth the letter L or coloured RED

Technics

DIRECT DRIVE PLAYER SYSTEM

SL-15O

OPERATING

This instruction manual covers both the SL-1500 and SL-150.

INSTRUCTIONS

Power source

LINE VOLTAGE SELECTOR:

Be sure that the line voltage selector IS correct to yOur local
voltage belore connecting the plug to the socket

DC power cannot be used

ll your local voltage IS dullerent, please turn the AC line voltage
selector wuth a screw driver to your local voltage

LINE -L
VOLTAGE

(@100

LO

Power supply
Power consumption

«.110/120/220/240 V. 50 Hz or 60 Hz
6 W

The SL450 is the same as the SL-1500 in every aspect. but comes

only without tonearm section.

Read these instructions completely. before operating this set.

Page 2

We want to thank you for selecting the SL-1500/SL-150, DIRECT DRIVE PLAYER SYSTEM.
For optimum performance, we recommend that you read these instructions carefully.

1 PARTS IDENTIFICATION

Hinge

AC power wire

Screw

Turntable mat

Turntable platter

Motor shalt
(turntable shalt)

Strobe dots

Strobe mark

Strobe illuminator/
pilot lamp

i
I
i
I
l
i
l
I
I
l
l
77
I

Output terminals

MODEL SL-1500

Pitch control knobs

The SL-150 is specially designed for SME improved tonearm or
others.
So install a tonearm according to the instructions of your tonearm.

MODE L SL-1 50

Arm base

MODEL SL-1 50

Player case

Ground wire

Balance weight

Stylus pressure ring

Anti-skating knob

Cueing lever

Arm rest

Arm clamp

Tubular arm

Locking nut

Speed/power knob

Head shell
Fig. 1-1
2 BEFORE USE
ocnecx THE PARTS iSL-1500i lSL-150l
Player unit .................. 1 Player unit ................ 1
Dustcover................ . . . ,1 Dustc0ver .................... 1
Turntable platter . . ........ 1 Turntable platter . .1
Turntable rnat .......... , ..... 1 Turntable mat .................. 1
45 rpm. adaptor . ..1 45 rpm. adaptor . , .1
Special oil ................ 1 Special oil ................... 1
Balance weight ............... 1 Arm base ............... 1
Head shell ..................... 1
Overhang gauge ,,,,,, . ...1

OREMOVE THE SHIPPING SCREWS
Remove the two shipping screws and place them in the retaining
holes for future use, when the player must again be transported.
(See Figs. 2 and 3)

/ 2!!

Shipping screws

F-'

/
Retaining holes

£393

Page 6

9 SPECIFICATIONS

(TURNTABLE SECTION)

Type ............................. Manual Player system

Drive method .................. Direct drive

Motor .............................. Ultra-low-speed brushless DC
motor

Turntable platter ............... Aluminum die-cast. 33 cm
(13") diameter

Turntable speeds ............... 33-1/3 and 45 r.p.m.

Speed change method ......... Electronic

Variable pitch controls .. . . Individual control knobs.

10% adjustment range

Wow and iiutter .......... 0.03% W.R.M.S. (JIS 05521)
t0.042°/o Weighted zero to peak
(DIN 45507)

Rumble ................ '-50 dB (DIN 45539A)

-70 dB (DIN 455398)

(GENERAL)

Power supply .................. ~110/120/220/24o v. 50 or 60 Hz

Power consumption ......... 6 W

Dimensions ..................... 13.9 x453 x355 cm (H xw x 0)
51/2 x 17-3/4 x14-3/8 inches

Weight .......................... 7.8 kg (17.2 lb)

10 FEATURES

(TONEARM SECTION)

Type .............................. Universal "S" shaped tubular
arm, static-balanced type. direct
reading stylus pressure adjustment.
with anti-skating iorce control
device. and oueing device

Eiiective length ............... 230 mm (9.1/16'1
Overhang ..................... 15 mm (19/32")
Friction .................. 7 mg (horizontally and vertically)

Eiiectlve mass .......... 23 g (6.5 g cartridge weight

1.5 g stylus pressure)
Tracking error angle ....... ?.Within +3 at the point oi
< 145 mm (5-45/64"))
lrom the center
Within +1° at the point of
( 55 mm (2-3/16)>

from the center
Adjustable stylus

pressure ..................... 0 to 3 g
Cartridge weight range ...5 to 11 9
Head shell weight ............ 9.5 g

(TURNTABLE SECTION)

Motor construction peculiar to Technics in which the rotor oi
the motor is integrally connected to the turntable platter

In Technics player system we took the lead in the world by
putting the Direct Drive system on the market with a marked
improvement in the periormance oi record players. Since then.
we have developed numerOus players oi high periormance.
iurnishing new topics oi conversation each time.

One oi these achievements is the motor construction 01 this
unit. unique and singular in the world. in which the rotor oi
the motor is directly connected to the turntable platter.
Moreover. the motor base has been integrally connected to
the player case of diecast aluminum for presenting player
systems oi higher accuracy and rational construction.

HiFi periormance with rumble (signal to noise ratio) oi -70
d8 (DIN 455398) and wow and flutter oi 0.03% (W.R.M.S.)

The brushless DC motor 01 ultra-low speed (same rotation as
the record) adopted has extremely small power consumption
oi 0.1 W. which is less than approximately 1/100 when com-
pared with the AC motor (10-20 W). Thus the DC motor is tree
from vibrations due to excessive energy or heat generation.
Needless to say. it has no reduction transmission mechanism
such as a belt or idler. which may give rise to uneven rota-
tion.

Player case is oi diecast aluminum tor a slim 8: compact
design

Matsushita Electric Trading Co., Ltd.
PO. Box 288. Central Osaka Japan

Fri/tied In Japan

(TON EARM SECTION)

Highly sensitiveunlversal tonearm which Iuily realizes the ex-
cellent periormance oi high-compliance cartridges

A superior combination oi the precision pivot bearing and
gimbal suspension system

The employment 01 the precision pivot bearings at the horizon-
tat and vertical journals of the tonearm. coupled with the
gimbal suspension system. displays an excellent tracing per-
lormance in cooperation with the use oi high ~ compliance
cartridge.

Diecast aluminum head shell

The head shell,integrally iormed by strong diecast aluminum
ior reduction in weight,is protected irom harmiul head shell
resonance. Additionally. the head shell terminals are gold-
plated ior prevention oi contact iaults at replacement.

Viscous damped cueing

To prevent damage to the stylus tip and records liable to

take place during operation oi the tonearm. a cueing device
damped with viscous oil is adopted.

Since the tonearm can be raised or lowered through operation oi
the lever. location 01 a desired playing portion or temporary
suspension of the playing are conveniently achieved.

Anti-skating control

Proper outside iorce can be applied by such a simple opera-
tion as aligning the knob with the same value as the stylus
pressure. thus cancelling the skating iorce harmiul to the stylus
tip.

Low-capacitance phone cables that will not impair the high
irequency characteristics oi the cartridge

Uniquely designed overhang gauge
This unique accessory is designed not only as an overhang
adjustment gauge. but also as a head shell stand.

SFNU152GOI 8087600
